BATTERIES
KINO FLO BLOCK-BATTERY
Kino Flo Lighting Systems partners with BlockBattery for newly introduced KF21 (NiMH) battery systems for its LED line. The Kino Flo/BlockBattery systems are designed to work with the following Kino Flo LED products with DC capability:
Celeb 250 LED DMX
Diva-Lite 20 & 30 LED DMX
Diva-Lite 21 LED DMX
Diva-Lite 31 LED DMX
Diva-Lite 41 LED DMX
FreeStyle Mini LED DMX
FreeStyle 21 & FreeStyle 21GT LED DMX
FreeStyle 31 & FreeStyle 31GT LED DMX
FreeStyle 41 & FreeStyle 41GT LED DMX
FreeStyle T44/T24 LED DMX
FreeStyle T42/T22 LED DMX
FreeStyle T41/T21 LED DMX
Select 20 & 30 LED DMX

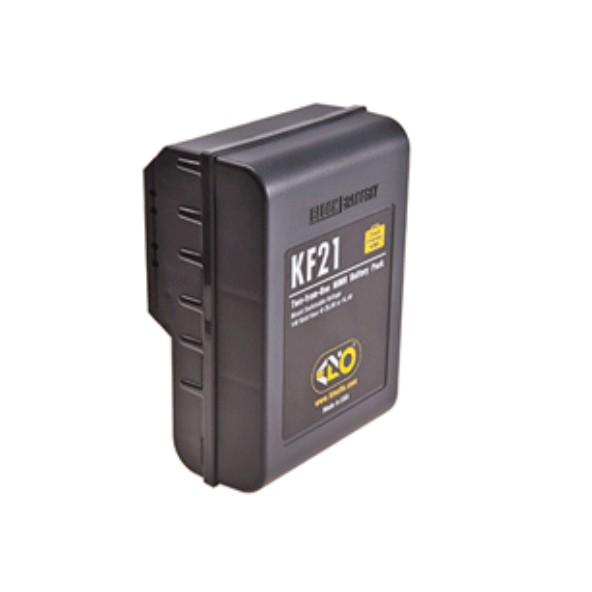

The KF21 battery can power 28.8V (20-34VDC) applications. Run time for Kino Flo products listed above is approximately 1 hour and 10 minutes at full brightness. When fixtures are dimmed, the battery will last longer.
Charge time is only 1.5 hours versus Lithium batteries that take approximately 4 hours to fully charge. Unlike lithium batteries, the Kino Flo/BlockBattery is also travel friendly with no travel restrictions Block Battery Travel Documentation.
In addition to powering 28.8V, battery adapters may be used to access 14.4V to be used with products with 14.4V input. It’s like having two batteries for the price of one!
BLOCK/KF21 SINGLE BATTERY SYSTEM

Single Charger

Battery

Maffer Mount
BLOCK/KF21 DUAL BATTERY SYSTEM

Dual Charger

Battery

Maffer Mount
CHARGER
The Single Channel Fast Charger utilizes BlockBattery’s advanced microprocessor system and multi-level charge routines to quickly & safely, qualify, initiate and terminate charging of a nickel metal-hydride (NiMH) battery. It is designed to charge one Kino Flo/BlockBattery. BAT-KF21.

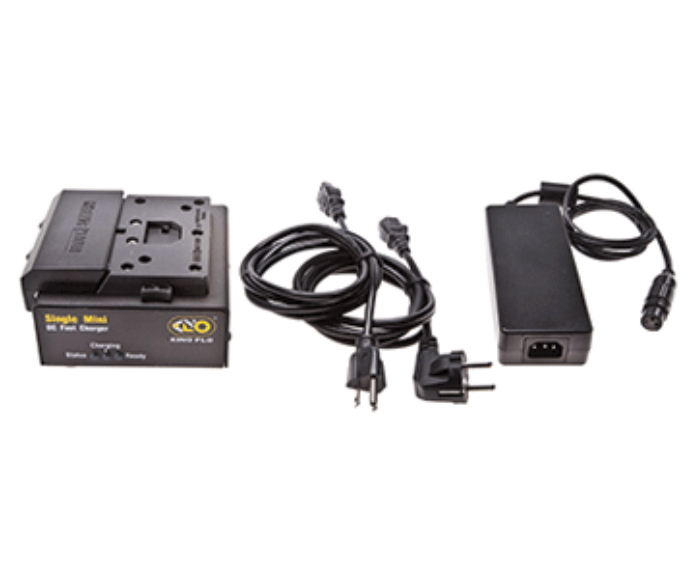

The Charger System, BAT-BC1U, includes a Single Fast Charger and universal power supply, 120W/48V with 3-Pin xlr. Charge time is 1.5 hours. Charge cycle is complete when all 3 LED’s are on steady.
Note: For best long-term performance, avoid interrupting charge cycle during fast charge. Avoid “top-off” charging a full battery just before use. This is unnecessary and could elevate the voltage above equipment operating ranges and/or damage equipment being powered.

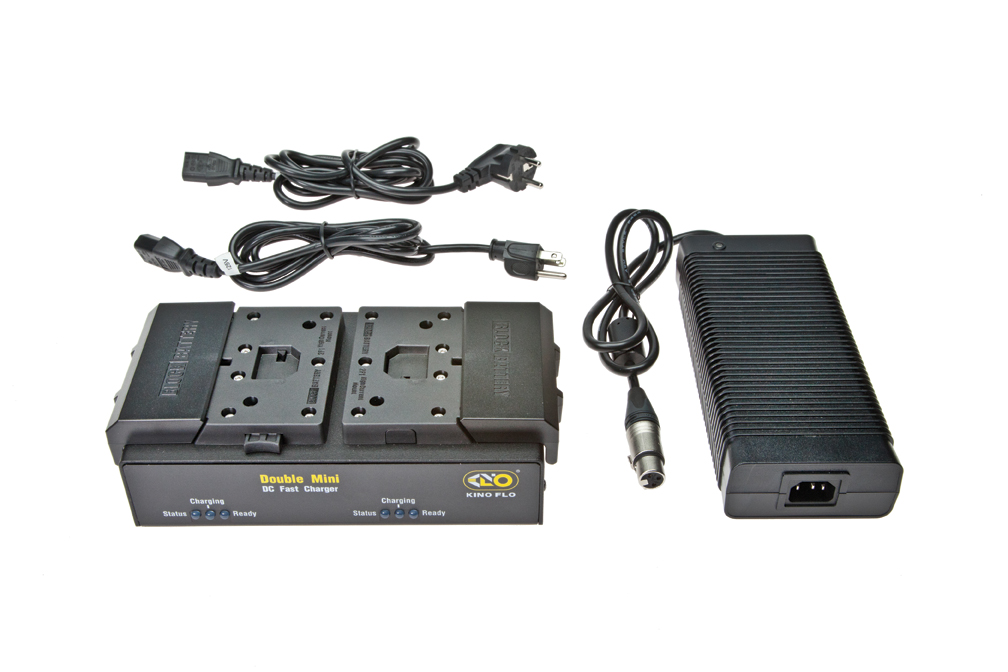

The Dual Charger System, BAT-BC2U, includes a dual fast charger and Universal power supply, 280W/48V with 3-pin xlr. Dual Charger will charge 2 batteries in 1.5 hours.
BAT-BC1
Input Voltage: 48VDC, 3.0A
Dimensions: 5.5 x 5.5 x 3.5″ (14 x 14 x 9cm)
Weight 1.5 lb (1.0kg)
BAT-BC2
Input Voltage: 48VDC, 5.8A
Dimensions: 9.5 x 5.5 x 3″ (24 x 14 x 8cm)
Weight: 2.0lb (1.0kg)
BATTERY MOUNTS

BAT-MM1

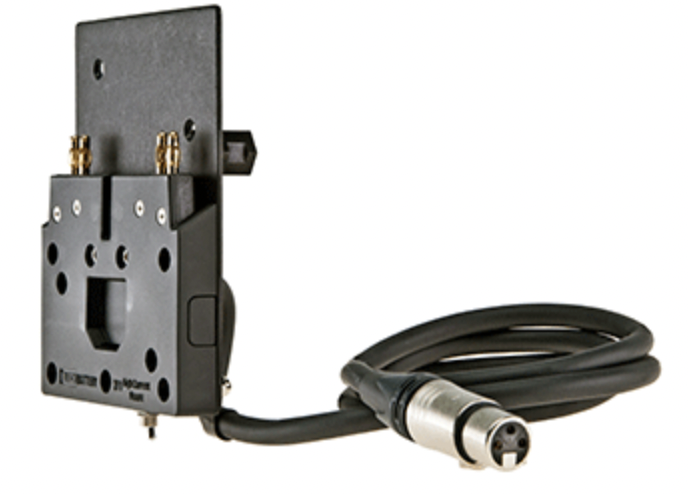

The Kino Flo/BlockBattery system includes a Mafer Mount, BAT-MM1, with 28.8V output with 3-Pin xlr, 3ft. The battery slides onto the mount and mounts onto a Mafer clamp. The on/off switch can be used to disconnect power to reduce battery drain when 3-Pin xlr is plugged into fixture.

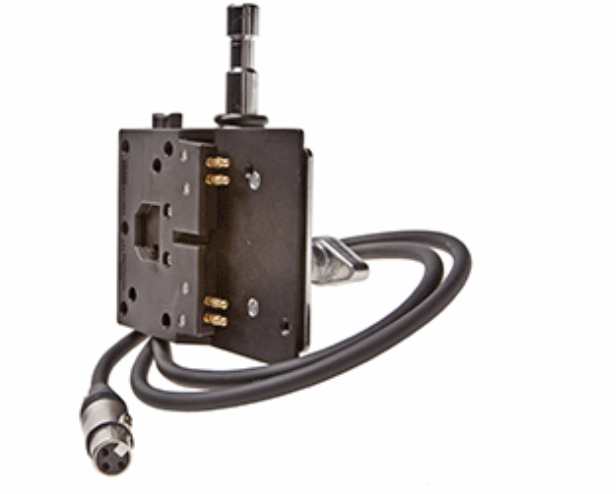

The BAT-MB1 is an optional Battery Mount. It includes a 5/8” Baby Pin and Receiver (16mm) and 28V Output with 3-Pin xlr, 3ft. The 5/8” baby receiver allows the battery mount to sit onto a baby stand. Kino Flo mounts with baby receivers can be mounted onto the 5/8” baby pin.
BATTERY ADAPTERS

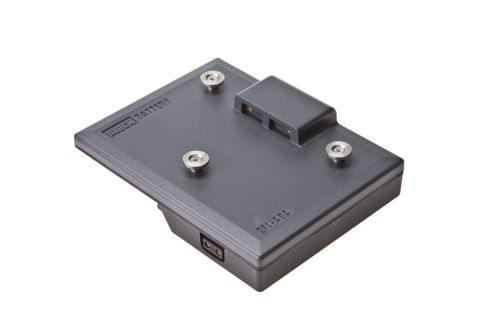

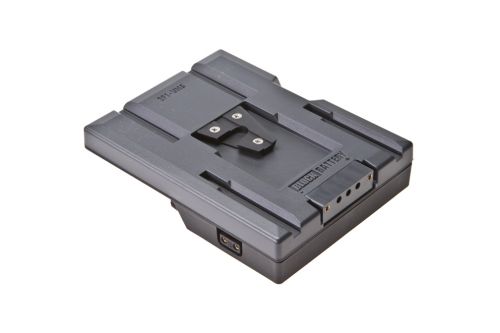

Battery Adapters may be used to access 14.4V to be used with products that have 14.4V inputs: BAT-BA Block/AB Gold Mount Adapter (14.4V Output); BAT-BV Block/V-Mount Adapter (14.4V Output).


POWER ADAPTERS

PWS-120W-48X
Power Supply 120W, 48V DC/DC 3-Pin xlr
Input Voltage: 100-240VAC, 50/60Hz 1.4A
Output Voltage: 48V, 2.5A 120W Max
Dimensions: 6.5 x 2.5 x 1.5″ (16.5 x 6.5 x 4cm)
Weight: 2 lb (1.0kg)

PWS-280W-48X
Power Supply 280W, 48V DC/DC 3-Pin xlr
Input Voltage: 100-240VAC, 50/60Hz 4.5A
Output Voltage: 48V, 5.84A 280W Max
Dimensions: 9 x 4 x 2″ (23 x 10 x 5cm)
Weight: 4 lb (2.0kg)
