FreeStyle Mini

Kino Flo’s FreeStyle Mini is the smallest and most versatile of the FreeStyle LED family. Slim and compact in size, the FreeStyle Mini comes fully loaded with the same Color Science LED technology found in all Kino Flo LEDs. Weighing only 3.5 lb (1.6kg), the portable fixture can easily fit into tight locations or can be handheld with the KinoGrip center mount.

Select Your Kit

No Kit

Find a dealer for the FreeStyle Mini without any additional kit.

FreeStyle Mini LED DMX Kit, Univ w/ Soft Case KIT-F10BU

1 FreeStyle Mini LED Fixture (CFX-F10)
1 FreeStyle 120 LED DMX Controller (LED-120X)
1 MTP-BG41 Mount w/ Baby Receiver Short (16mm) (MTP-BG41S)
1 Extension, 25ft (X08-F125)
1 Soft Case (BAG-FS102)

Dimensions
19 x 11 x 13.5” (48 x 28 x 34cm)

Weight
16 lb (7kg)

FreeStyle Mini LED DMX Kit, Univ w/ Soft Case (2-Unit) KIT-F102BU

2 FreeStyle Mini LED Fixture (CFX-F10)
1 FreeStyle 120 LED DMX Controller (LED-120X)
2 MTP-BG41 Mount w/ Baby Receiver Short (16mm) (MTP-BG41S)
2 Extension, 25ft (X08-F125)
1 Soft Case (BAG-FS102)

Dimensions
19 x 11 x 13.5” (48 x 28 x 34cm)

Weight
22 lb (10kg)


FIXTURE FEATURES

The FreeStyle LED family is known for its high color rendering white light, full hue and saturation color, cinema gel choices, and RGB chromatic selection via the AC/DC FreeStyle 100Watt controller. It has built-in Lumen Radio wireless DMX; no extra cost for wireless receiver accessories. The light can also be operated directly up to 50 feet away (2 x extension cables) from the controller via Kino Flo head cables. The Freestyle’s driver technology achieves bright, soft light with continuous dimming from 100% to 0% on a linear or square curve without flicker at higher camera speeds or at varied shutter angles. There is no light level change when shifting from 2500K to 9900K, and the color doesn’t change when the light levels rise or fall.

The FreeStyle Mini LED System consists of four components: FreeStyle Mini LED Fixture, Mounting Plate, Extension Cable and FreeStyle 120 LED DMX Controller. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

FreeStyle Mini Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 0.83A, 120VAC and 4.2A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
  • LED Controller can power two FreeStyle Mini Fixtures – (Both at same settings)

FreeStyle Mini Design

  • KinoGrip Center Mount
  • Lightweight, compact, slim profile
  • Mounts to stand, light enough to be hand-held

FreeStyle Mini Modular Design

The FreeStyle Mini LED Fixture is comprised of a an LED panel and Louver.  The Louver is held in place with Velcro fasteners.  The fixture has a twist-on mating plate to accept a twist-on mount and has molded corners for additional rigging options.  The compact lightweight fixture can also be hand-held. The FreeStyle Mini LED DMX Controller firmware is updatable from a PC using the Mini B USB data port.


ACCESSORIES

System

SYS-F10U

FreeStyle Mini LED DMX System, Univ

System Components

CFX-F10

FreeStyle Mini LED Fixture

LED-120X-120U

FreeStyle 120 LED DMX Controller, Univ 120U

LED-120X-230U

FreeStyle 120 LED DMX Controller, Univ 230U

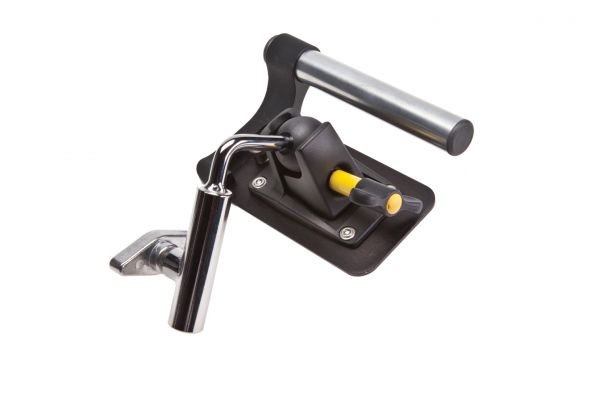

MTP-BG41S

KinoGrip 41K Mount w/ Baby Receiver Short (16mm)

X08-F125

Extension, 25ft

Accessories

SYS-BK12

Block/KF21 Single Battery System, 140Whr, 28.8V (2 x Battery).

PAN-F10

FreeStyle Mini LED Panel

LVR-FS1090-P

FreeStyle Mini Louver/HP, 90°

DFS-FS10-S

FreeStyle Mini SnapBag w/ 2 x Diffusion

LVR-FS140-S

FreeStyle Mini SnapGrid 40°

MTP-BG41

KinoGrip 41K Mount w/ Baby Receiver (16mm)

MTP-KG41

KinoGrip 41K Mount w/ 3/8″ Pin (10mm)

MTP-BW41

Kino 41K Mount Wing w/ Baby Receiver (16mm)

MTP-BW41S

Kino 41K Mount Wing w/ Baby Receiver Short (16mm)

MTP-KW41

Kino 41K Mount Wing w/ 3/8″ Pin (10mm)

MTP-BAL1

Kino Bal/LED Controller Mount (16mm)

MTP-901

Savior Mini Clamp & Lock Screw Pin (16mm)

MTP-902

KF/LED Controller Mount Assembly 2

MTP-903

KF/LED Controller Mount Assembly 3

MTP-BRA

Baby Right Angle Offset (5/8″ Pin)

XLR-310

3-Pin Xlr DC Power Cable, 10ft

Stands/Cases

STD-M30

Medium Duty, 3-Rise 30”

STD-M36

Medium Duty, 3-Rise 36”

STD-D1

Reverse Stand

BAG-FS102

FreeStyle Mini Soft Case (2)

COMPONENTS

  • FreeStyle LED Fixture

  • Mounting Plate

  • FreeStyle Extension

  • FreeStyle 120 LED DMX Controller


    PHOTOMETRICS

    DMX Personalities
    FreeStyle Mini LED DMX

    IES Download
    FreeStyle Mini LED IES Files
    All LED Photometric IES Files

    FreeStyle Mini Open Face
    FreeStyle Mini LED w/ 90° Louver
    FreeStyle LED Photometric IES Pdf


    Downloads

    Quick Start Guide
    DOWNLOAD
    Operational Manual
    DOWNLOAD
    True Match® Firmware 5.0 (RDM)
    DOWNLOAD
    True Match® Firmware 5.0 DMX Personalities
    DOWNLOAD
