FreeStyle 41

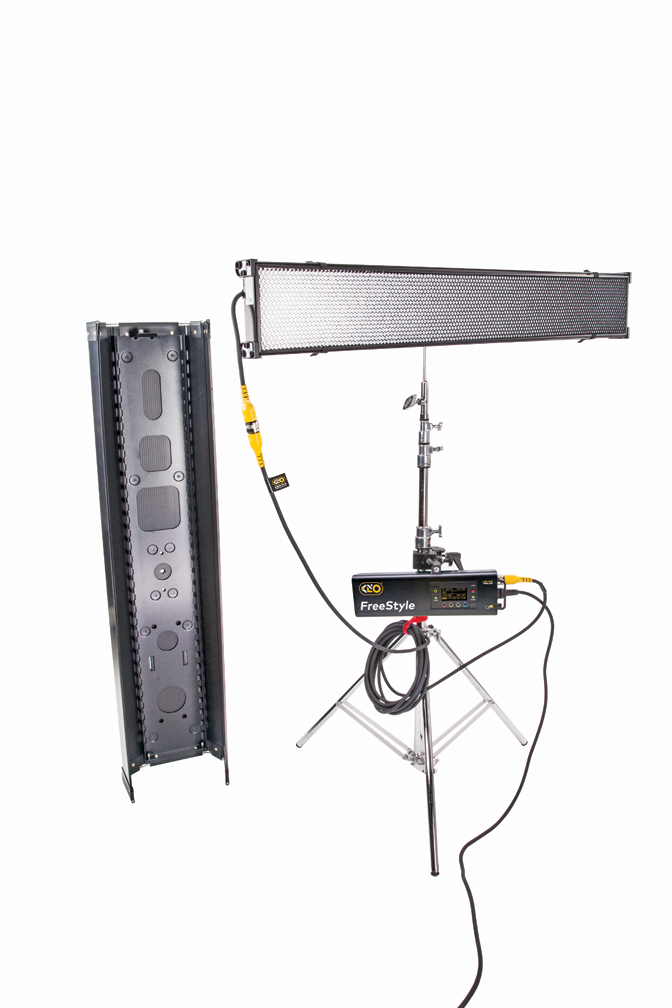

Kino Flo’s award-winning FreeStyle 41 unleashes your creative side with a quick-release feature to remove the LED panel from the fixture, cutting the weight nearly in half (from 16 lbs/7.3kg to 9.6 lbs/4.4kg) and creating a smaller form factor for better rigging flexibility. The LED panel’s corner bumpers can be used to hang from rope or wire. The panel also takes a Twist-On mount for working on light stands. The Freestyle 41 comes complete with the full color, programmable FreeStyle controller, Head Cable (25ft), Complete Fixture with removable LED panel, and a twist-on KinoGrip Center Mount. Honeycomb 90° or 60° louvers, mounted with Velcro, give direction to the light, and when removed the panel displays a broad soft beam across the set.

Select Your Kit

No Kit

Find a dealer for the FreeStyle 41 without any additional kit.

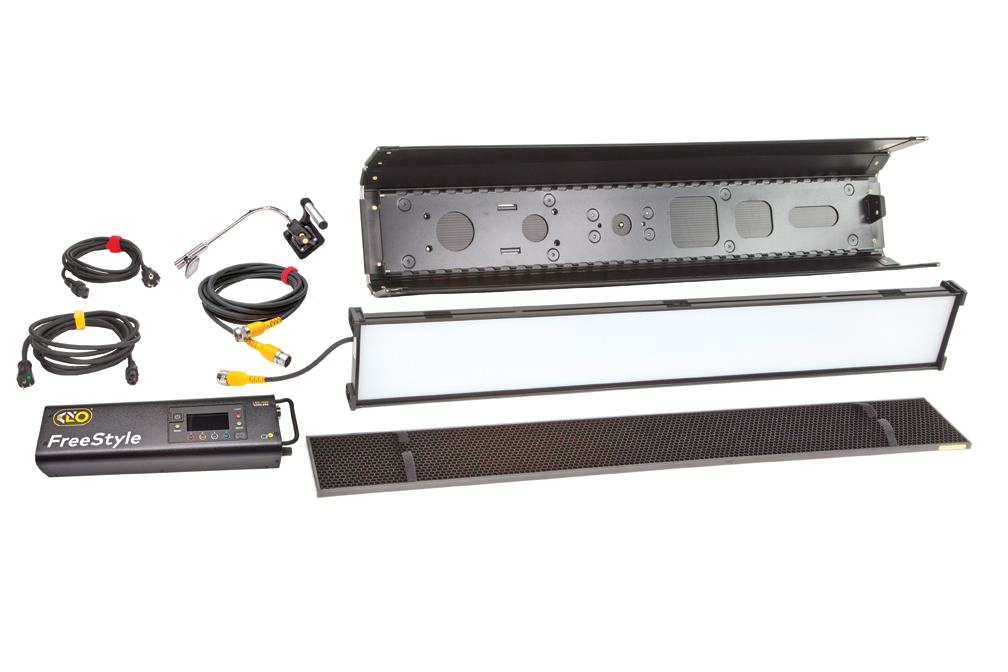

FreeStyle 41 LED DMX Kit w/ Travel Case, Univ KIT-F41U

1 FreeStyle 41 LED Fixture (CFX-F41)
1 FreeStyle 152 LED DMX Controller (LED-152X)
1 MTP-BG41 Mount w/ Baby Receiver (16mm) (MTP-BG41)
1 FreeStyle/4 Extension, 25ft (X12-F425)
1 Travel Case (KAS-FS41-C)

Dimensions
54.5 x 9 x 21″ (138.5 x 23 x 53.5cm)

Weight
49 lb (22.5kg)

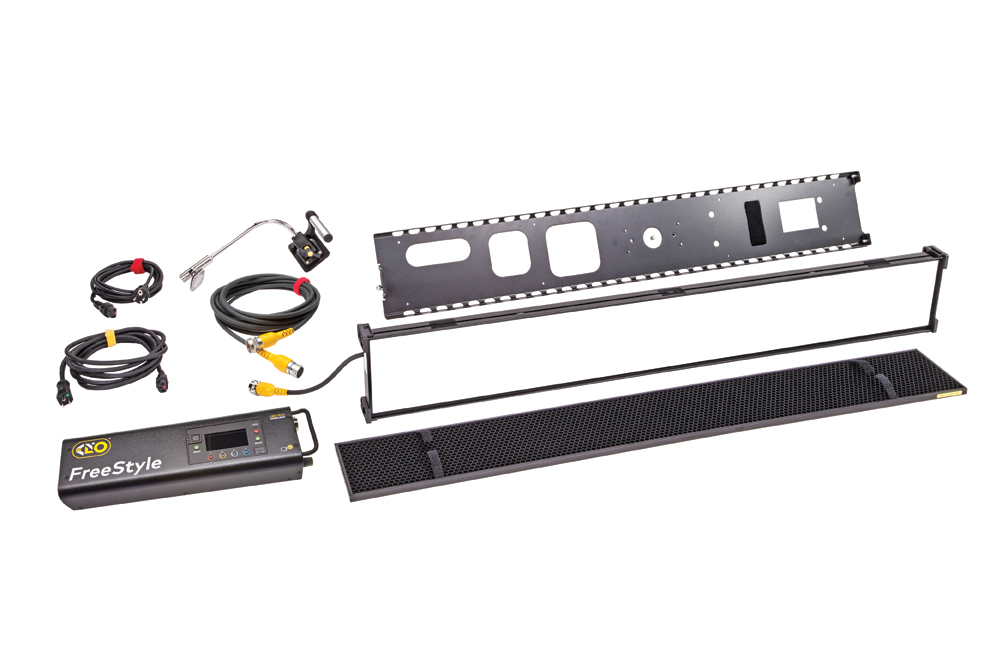

FreeStyle 41GT LED DMX Kit w/ Travel Case, Univ KIT-F41TU

1 FreeStyle 41GT LED Fixture (CFX-F41T)
1 FreeStyle 152 LED DMX Controller (LED-152X)
1 MTP-BG41 Mount w/ Baby Receiver (16mm) (MTP-BG41)
1 FreeStyle/4 Extension, 25ft (X12-F425)
1 Travel Case (KAS-FS41-C)

Dimensions
54.5 x 9 x 21″ (138.5 x 23 x 53.5cm)

Weight
46 lb (21kg)


FIXTURE FEATURES

The FreeStyle 41 is known for its high color rendering white light, full hue and saturation color, cinema gel choices, and RGB chromatic selection via the AC/DC FreeStyle 150Watt controller. It has built-in Lumen Radio wireless DMX; no extra cost for wireless receiver accessories. The light can also be operated directly up to 50 feet away from the controller via Kino Flo head cables.

The Freestyle’s driver technology achieves bright, soft light with continuous dimming from 100% to 0% on a linear or square curve without flicker at higher camera speeds or at varied shutter angles. There is no light level change when shifting from 2500K to 9900K, and the color doesn’t change when the light levels rise or fall.

Color and luminosity remain stable over the rated life of the LED’s using Kino Flo’s advanced True Match® daylight and tungsten color management system, which has been an unqualified success since Kino Flo introduced the idea of soft panel True Match Celeb Studio LED’s ten years ago. Passive cooling keeps the LED’s in good shape for a longer usable life than fixtures that require electric fans.

The FreeStyle 41 and 41GT LED Systems consist of four components: FreeStyle 41 or 41GT LED Fixture, Mounting Plate, Extension Cable and FreeStyle 152 LED DMX Controller. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

FreeStyle 41 Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate

FreeStyle 41 Design

  • Remote fixture with built-in barndoors
  • Removable LED panel with center mount and molded corner mounts
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Removable Center Mount
  • KinoGrip Center Mount
  • Lightweight, slim profile
  • Mounts to stand, light enough to be hand-held
  • Controller operates remotely with extension cable

FreeStyle 41 Modular Design

The FreeStyle LED fixture’s modular design includes built-in barndoors, a removable LED panel and removable louver. The louver is held in place with Velcro fasteners. The LED panel can be removed from the fixture housing by pressing the locking pin and turning the thumbscrew. The fixture and removable LED panel have twist-on mating plates to accept a twist-on mount. The four molded corners offer additional rigging points for rope hanging, for example. With the KinoGrip mount, the fixture or LED panel can be hand-held. When the mount is removed, the fixture is flat and can be screwed to the wall or ceiling through its eyelets. The FreeStyle 152 LED DMX Controller firmware is updatable from a PC using the Mini B USB data port.


ACCESSORIES

System

SYS-F41U

FreeStyle 41 LED DMX System, Univ

SYS-F41TU

FreeStyle 41GT LED DMX System, Univ

System Components

CFX-F41

FreeStyle 41 LED Fixture

CFX-F41T

FreeStyle 41GT LED Fixture

MTP-BG41

KinoGrip 41K Mount w/ Baby Receiver (16mm)

LED-152X-120U

FreeStyle 152 LED DMX Controller, Univ 120U

LED-152X-230U

FreeStyle 152 LED DMX Controller, Univ 230U

X12-F425

FreeStyle/4 Extension, 25ft

Accessories/Cases

SYS-BK12

Block/KF21 Single Battery System, 140Whr, 28.8V (2 x Battery).

FIX-F41

FreeStyle 41 Fixture Shell

FIX-F41T

FreeStyle 41GT Gaffer Tray

PAN-F41

FreeStyle 41 LED Panel

LVR-SL490-P

FreeStyle 41 Louver/HP, 90°

LVR-SL460-P

FreeStyle 41 Louver/HP, 60°

DFS-FS41-S

FreeStyle 41 SnapBag w/ 2 x Diffusion

LVR-FS440-S

FreeStyle 41 SnapGrid, 40°

DFS-FS40-H

FreeStyle 41 Flozier, Half

MTP-BG41S

KinoGrip 41K Mount w/ Baby Receiver Short (16mm)

MTP-KG41

KinoGrip 41K Mount w/ 3/8″ Pin (10mm)

MTP-BW41

Kino 41K Mount Wing w/ Baby Receiver (16mm)

MTP-BW41S

Kino 41K Mount Wing w/ Baby Receiver Short (16mm)

MTP-KW41

Kino 41K Mount Wing w/ 3/8″ Pin (10mm)

MTP-B41F

Kino Offset w/ Baby Receiver (16mm)

MTP-BAL1

Kino Bal/LED Controller Mount (16mm)

MTP-901

Savior Mini Clamp & Lock Screw Pin (16mm)

MTP-902

KF/LED Controller Mount Assembly 2

MTP-903

KF/LED Controller Mount Assembly 3

MTP-BRA

Baby Right Angle Offset (5/8″ Pin)

KAS-FS41-C

FreeStyle 41 & 41GT Travel Case

KAS-FS43

FreeStyle 41 Fixture (3) Ship Case

KAS-KFC

Ballast and Cable Crate w/ Lid

COMPONENTS

  • FreeStyle LED Fixture

  • Mounting Plate

  • FreeStyle Extension

  • FreeStyle 152 LED DMX Controller


    Downloads

    Quick Start Guide
    DOWNLOAD
    Operational Manual
    DOWNLOAD
    True Match® Firmware 5.0 (RDM)
    DOWNLOAD
    True Match® Firmware 5.0 DMX Personalities
    DOWNLOAD
