FreeStyle T42/T22 LED

Kino Flo® Lighting Systems’ True Match® FreeStyle LED tubes are specially designed for operation in FreeStyle T42 & T22 fixtures for film production or stage design lighting. The FreeStyle LED tubes display Kino Flo’s True Match white light and RGBWW color management system found in Kino Flo’s LED lighting fixtures.

Select Your Kit

No Kit

Find a dealer for the FreeStyle T42/T22 LED without any additional kit.


FIXTURE FEATURES

The tubes are 4ft (1.2m) & 2ft (0.6m). On camera, FreeStyle LED tubes photograph with the same softness, the same subtle color reproduction as Kino Flo’s award-winning T12 high-output lamps. In addition to high color rendering, cinematographers will see the difference the 310° LED tube makes when operated in a fixture or out of the fixture as a remote “sabre” of light. Paired with the FreeStyle fixture and light intensifying reflector, the tube projects soft light forward at a 100° beam angle at about the same light levels you’d get from a 1000W tungsten softlight.

The FreeStyle T42/T22 LED System (SYS-FT42U/SYS-FT22U) consists of:  FreeStyle T42/T22 LED Fixture plus 2 x FS-48 LED Tubes or
2 x FS-24 LED Tubes, Mounting Plate, FreeStyle 140X LED DMX Controller, and Extension Cable.

It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

FreeStyle T42/T22 LED Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
  • The firmware is updatable from a PC using the Mini B USB data Port
  • T42 Dims: 52 x 3.5 x 8” w/ 5.5” brndr (132 x 9 x 20cm w/ 14cm brndr)
  • Weight w/ Tubes: 8 lb (4kg)
  • T22 Dims: 28 x 3.5 x 8” w/ 5.5” brndr (71 x 9 x 20cm w 14cm brndr)
  • Weight w/ Tubes : 5 lb (2kg)

FreeStyle T42/T22 LED Design

  • Remote fixture with built-in barndoors
  • Fixture includes removable 90° Honeycomb Louver
  • KinoGrip Center Mount
  • Lightweight, slim profile
  • Mounts to stand, light enough to be hand-held
  • FreeStyle Tubes

FreeStyle T42/T22 LED Modular Design

The FreeStyle T42/T22 Fixture houses the tubes and is comprised of built-in barndoors, a Louver,  Reflector and Tube Harness. The Louver and Reflector are held in place with Velcro fasteners.

There is a strain relief on the tube Harness to ensure the connectors don’t pull of the lamps during operation.  To get the harness away from the fixture, turn the 1/4 turn fastener and rotate counter clockwise to release.


ACCESSORIES

System

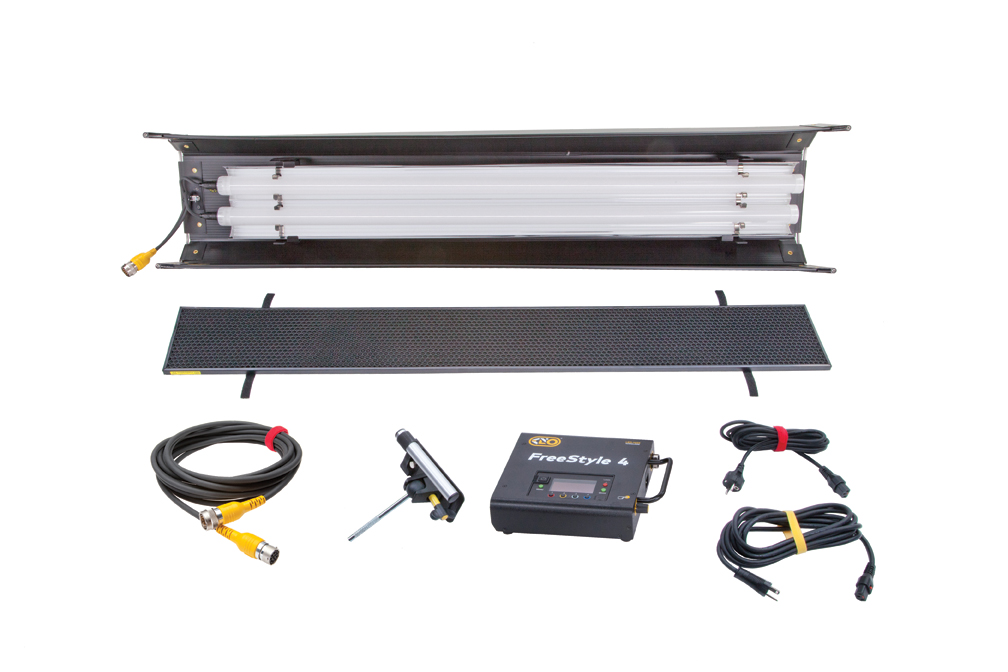

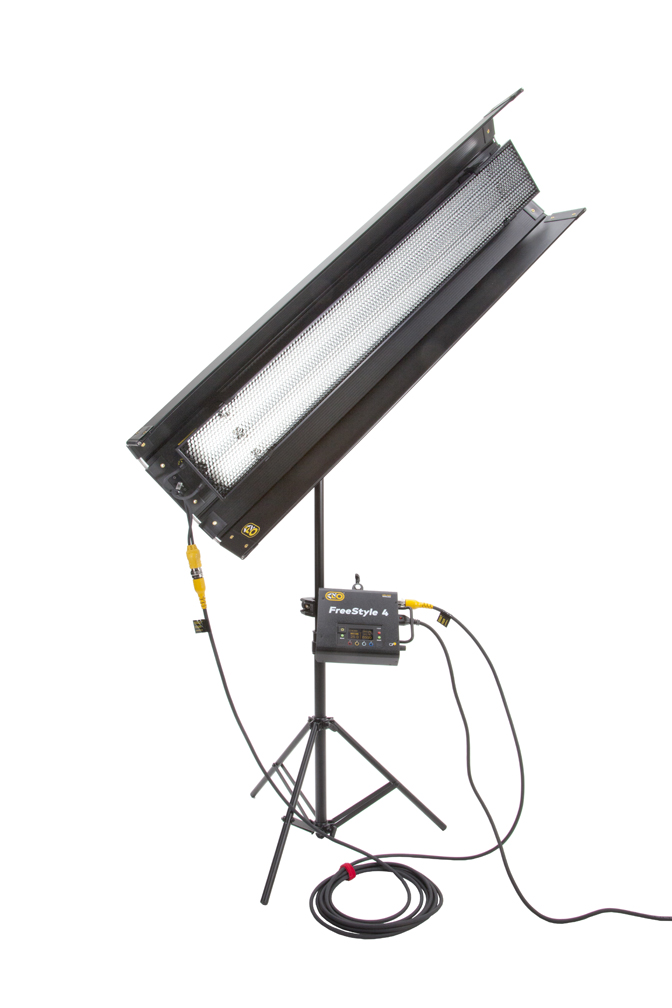

SYS-FT42U

FreeStyle T42 LED DMX System, Univ (Includes 2 x FS-48)

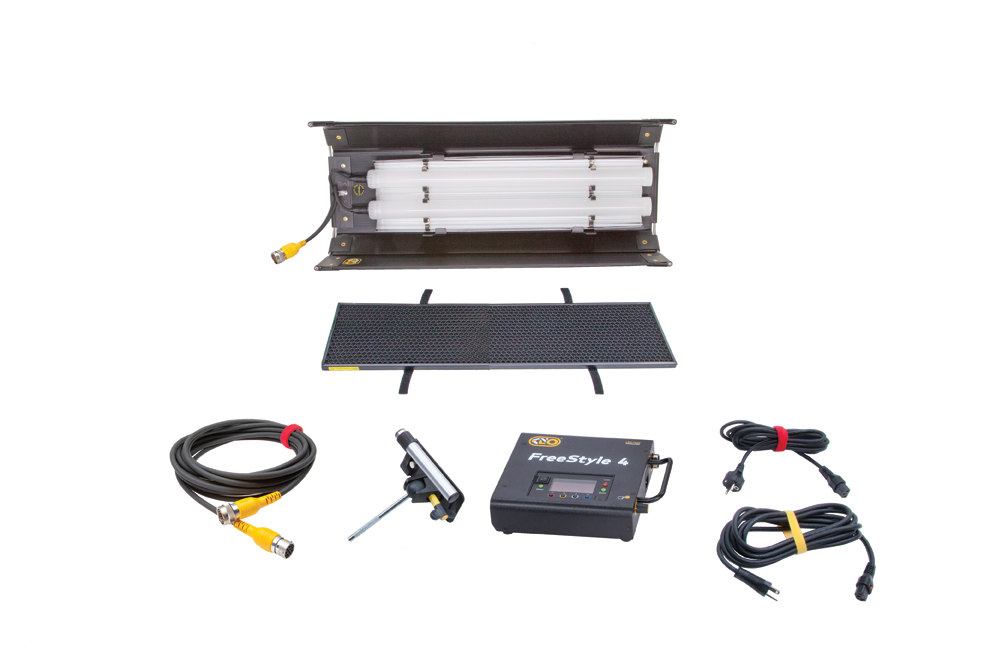

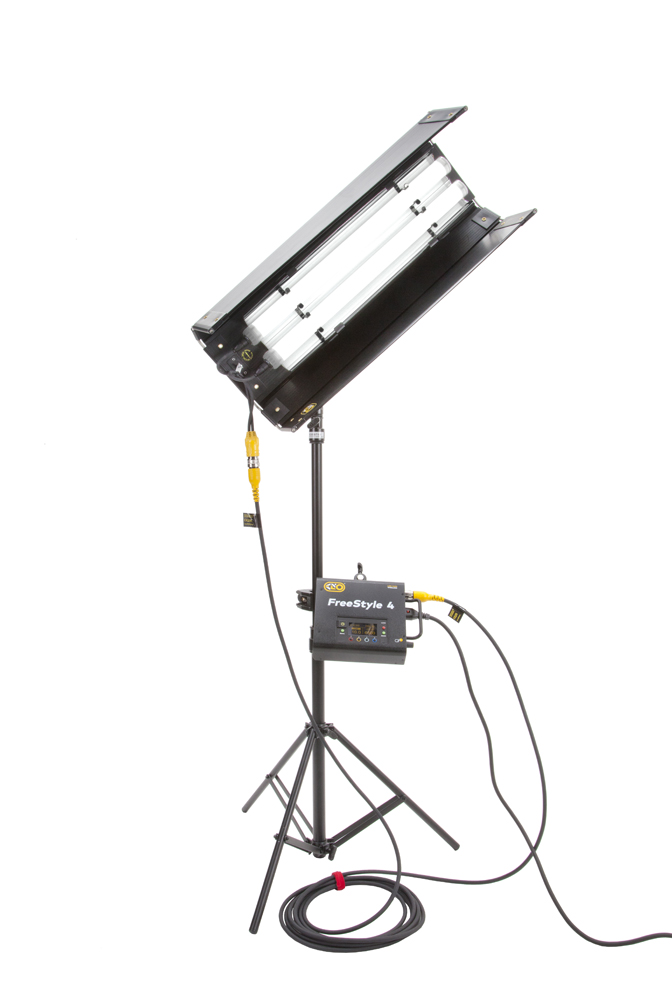

SYS-FT22U

FreeStyle T22 LED DMX System, Univ (Includes 2 x FS-24)

System Components

CFX-F482

FreeStyle T42 LED Fixture

CFX-F242

FreeStyle T22 LED Fixture

FS-48

FreeStyle 4ft LED Tube

FS-24

FreeStyle 2ft LED Tube

MTP-KG41

KinoGrip 41K Mount w/ 3/8″ Pin (10mm)

X12-F425

FreeStyle/4 Extension, 25ft

LED-140X-120U

FreeStyle 140 LED DMX Controller, Univ 120U

LED-140X-230U

FreeStyle 140 LED DMX Controller, Univ 230U

Fixture Components

FIX-F482

FreeStyle T42 Fixture Shell

FIX-F242

FreeStyle T22 Fixture Shell

HAR-FS2

FreeStyle T42/T22 Harness

LVR-SL490-P

FreeStyle T42 Louver/HP, 90°

LVR-FT2290-P

FreeStyle T22 Louver/HP, 90°

REF-F482

FreeStyle T42 Reflector

REF-F242

FreeStyle T22 Reflector

System – Tube Only

SYS-FTS4002

FreeStyle 4ft LED DMX System (2-Tube), Univ

SYS-FTS2002

FreeStyle 2ft LED DMX System (2-Tube), Univ

System – Tube Only Components

FS-48

FreeStyle 4ft LED Tube (x2)

FS-24

FreeStyle 2ft LED Tube (x2)

MTP-F101

FreeStyle Tube Mount – Baby Pin (16mm)

X08-F125

FreeStyle/1 Extension, 25ft (x2)

LED-120X-120U

FreeStyle 120 LED DMX Controller, Univ 120U

LED-120X-230U

FreeStyle 120 LED DMX Controller, Univ 230U

FreeStyle Tubes/Mounting

FS-48

FreeStyle 4ft LED Tube

FS-24

FreeStyle 2ft LED Tube

MTP-F100

FreeStyle Tube Mount – Anchor

MTP-F101

FreeStyle Tube Mount – Baby Pin (16mm)

MTP-F102

FreeStyle Tube Mount – Wall Plate

MTP-F103

FreeStyle Tube Mount – Hanging Kit, 4pk

MTP-F103W

FreeStyle Tube Mount – Hanging Wire, 50ft

MTP-F105

FreeStyle Tube Mount – Combiner

MTP-F200

FreeStyle Tube Mount- Ball Mount w/ Anchor, Baby Rcvr (16mm)

MTP-F201

FreeStyle Tube Mount- Floor Stand w/ Baby Pin (16mm)

Accessories

SYS-BK12

Block/KF21 Single Battery System, 140Whr, 28.8V (2 x Battery).

Mounting/Stands

MTP-BG41

KinoGrip 41K Mount w/ Baby Receiver (16mm)

MTP-BG41S

KinoGrip 41K Mount w/ Baby Receiver Short (16mm)

MTP-KG41

KinoGrip 41K Mount w/ 3/8″ Pin (10mm)

MTP-BW41

Kino 41K Mount Wing w/ Baby Receiver (16mm)

MTP-BW41S

Kino 41K Mount Wing w/ Baby Receiver Short (16mm)

MTP-KW41

Kino 41K Mount Wing w/ 3/8″ Pin (10mm)

MTP-BAL1

Kino Bal/LED Controller Mount (16mm)

MTP-901

Savior Mini Clamp & Lock Screw Pin (16mm)

MTP-902

KF/LED Controller Mount Assembly 2

MTP-903

KF/LED Controller Mount Assembly 3

MTP-BRA

Baby Right Angle Offset (5/8″ Pin)

STD-M30

Medium Duty, 3-Rise 30”

STD-M36

Medium Duty, 3-Rise 36”

STD-D1

Reverse Stand

COMPONENTS

  • FreeStyle T42/T22 Fixture

  • Mounting Plate

  • FreeStyle 4ft & 2ft LED Tube

  • FreeStyle Extension

  • FreeStyle 140 LED DMX Controller


    PHOTOMETRICS

    DMX Personalities
    FreeStyle T42 LED DMX
    FreeStyle T22 LED DMX

    IES Download
    FreeStyle T42 LED IES Files
    FreeStyle T22 LED IES Files
    All LED Photometric IES Files

    PDF Download
    FreeStyle T42 Open Face
    FreeStyle T42 LED w/ 90° Louver
    FreeStyle T22 Open Face
    FreeStyle T22 LED w/ 90° Louver
    FreeStyle LED Photometric IES Pdf


    Downloads

    Quick Start Guide
    DOWNLOAD
    Operational Manual
    DOWNLOAD
    True Match® Firmware 5.0 (RDM)
    DOWNLOAD
    True Match® Firmware 5.0 DMX Personalities
    DOWNLOAD
