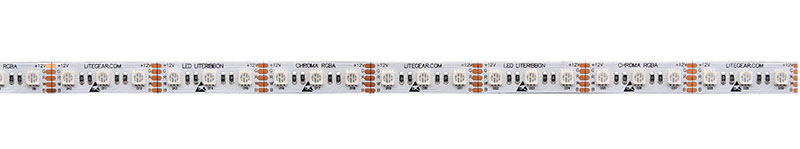

    LiteRibbon Chroma, 4 in 1, RGBA, 72, 12V, 5 m

    LiteRibbon Chroma, 4 in 1, RGBA, 72, 12V, 5 m is designed specifically for those with an eye on blending color with Amber. This LiteRibbon variation is 1 row of chroma quality emitters and runs on a 12-volt current.

    Request InfoWhere To Buy

    SPECIFICATIONS

    • Color Name: RGB Amber
    • Power: 115W (total potential power per 5 meter roll)
    • Input Voltage: 12 VDC nominal (8-13.5 VDC constant voltage)
    • Current: 9.6A (total potential current per 5 meter roll)
    • Beam Angle: 120°
    • Colors: Luminous Flux (1m): 130(R) 315(G) 95(B) 130(A)
    • Color Space Compliant: No
    • Green/Magenta: Yes (with appropriate controller)
    • Weight: 0.59 lb. (267.6 g) per 5 meter roll, including wire lead
    • PCB Width: 12 mm (0.47 in.)
    • PCB Length: 5 m (16.4 ft)
    • Ribbon Overall Thickness: 4.2 mm (0.16 in.)
    • Cut Segment Length: 41.7 mm (1.64 in.)
    • Cut Segments per Meter: 24
    • Total LED Quantity: 360
    • LEDs per Meter: 72
    • LEDs per Cut Segment: 3
    • LED Spacing: 14 mm (0.55 in.) Center to Center
    • Dimming Range: 0-100%
    • Operating Temperature: -10°C to +50°C (14°F to +122°F)
    • Connector: PH5.F
    • Mounting: Adhesive backing
    • LED Lifetime: 50,000 Hrs
    • IP Rating: 67
    • Certifications: UL Listed (Canada/US), CE Compliant (Europe)

    Additional information

    Weight .37 lbs
    Dimensions 8.5 × 9.5 × 1 in
