Image L40 LED

Kino Flo Lighting Systems’ renowned Image 40 fixture series served for decades as the leading soft source for cinema, television and video production studios. Its success serves as the foundation for the new Image L40 LED fixture, a narrow profile, shallow depth panel exquisitely suited to lighting small to medium-size greenscreen stages, as well as talent lighting on television news and video broadcast sets.

Select Your Kit

No Kit

Find a dealer for the Image L40 LED without any additional kit.

Image L40 LED DMX Yoke Mount Kit, Univ KIT-IML40U

1 Image L40 LED DMX Yoke (IMG-L40U)
1 Jr. Pin (MTP-I80)
1 Ship Case (KAS-I40-1)

Dimensions
58 x 9.5 x 25.5” (147.5 x 24 x 65cm)

Weight
56 lb (25.5kg)


FIXTURE FEATURES

Kino Flo’s Image L40 LED has already made its mark as a value priced studio light that packs a 1K equivalent output and comes complete with Kino Flo’s True Match® firmware to control superior high color rendering white light and a full hue and saturation gamut.

The versatile Image L40 has proven ideal for grid installations with variable beam pitch control to ensure an even flow of illumination from the top of a set wall (as high as 20 feet/7 meters) all the way out to stage forward. The beam spread from down facing fixtures can produce a wide soft base in studio spaces too small for traditional spacelight designs. The Image L40 comes with manual and remote DMX wireless control of the mired shift, color selection, dimming and visual effects features unique to Kino Flo lighting products. Its photometric and control specifications are available for free download to pre-visual studio design programs and lighting console profiles.

Image L40 LED Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB Control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Universal input 100VAC-240VAC
  • Energy efficient, draws 2A, 120VAC
  • Flicker-free, quiet operation
  • Yoke Mt Dims: 54 x 6.5 x 17” (137 x 16.5 x 43cm)
  • Yoke Mt Weight: 25 lb (11.5kg)
  • Pole-Op Dims: 54.5 x 6.5 x 17” (138.5 x 16.5 x 43cm)
  • Pole-Op Weight: 27 lb (12kg)

Image L40 LED Design

  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
  • Metal Alloy fixture includes removable Gel Frame, Louver and cardholders
  • Slim profile
  • Mounts to stand or can hang easily from a grid
  • Traditional Yoke Mount with two position setting, Pole-Op

Image L40 LED DMX Control Panel

The firmware is updatable from a PC using the Mini B USB data port.


ACCESSORIES

Image L40 LED DMX Yoke

IMG-L40U

Image L40 LED DMX Yoke Mount, Univ

GFR-I40

Image L40 Gel Frame (Included)

LVR-I40-S

Image L40 Louver/Silver (Included)

Image L40 LED DMX Pole-Op

IMG-L40PU

Image L40 LED DMX Pole-Op, Univ

GFR-I40

Image L40 Gel Frame (Included)

LVR-I40-S

Image L40 Louver/Silver (Included)

Accessories/Cases

BRD-I40

Image L40 Barndoors

MTP-I80

Junior Pin Assembly for Yoke (28mm)

MTP-I40

Baby Receiver Assembly for Yoke (16mm)

7010015

Image L40 Pole-Op Assembly

KAS-I40-1

Image L40 Ship Case

COMPONENTS

  • Image L40 LED DMX Fixture

  • Gel Frame

  • Silver Louver *

    *To eliminate multiple shadows, the Silver Louver should only be used in combination with white diffusion.

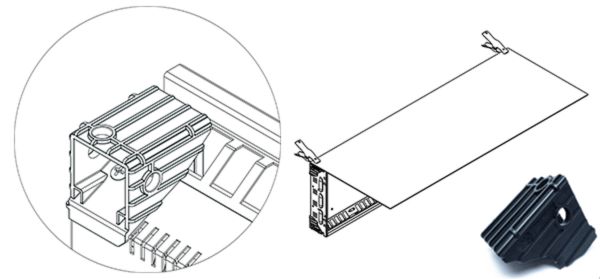

  • CardHolder (x4)


    Downloads

    Quick Start Guide
    DOWNLOAD
    Operational Manual
    DOWNLOAD
    True Match® Firmware 5.0 (RDM)
    DOWNLOAD
    True Match® Firmware 5.0 DMX Personalities
    DOWNLOAD
