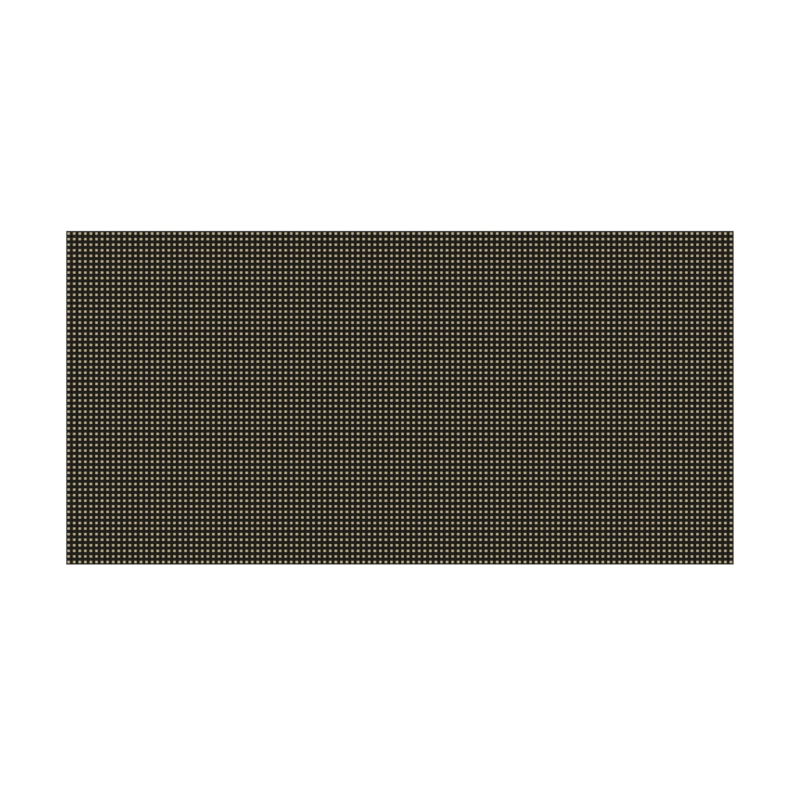

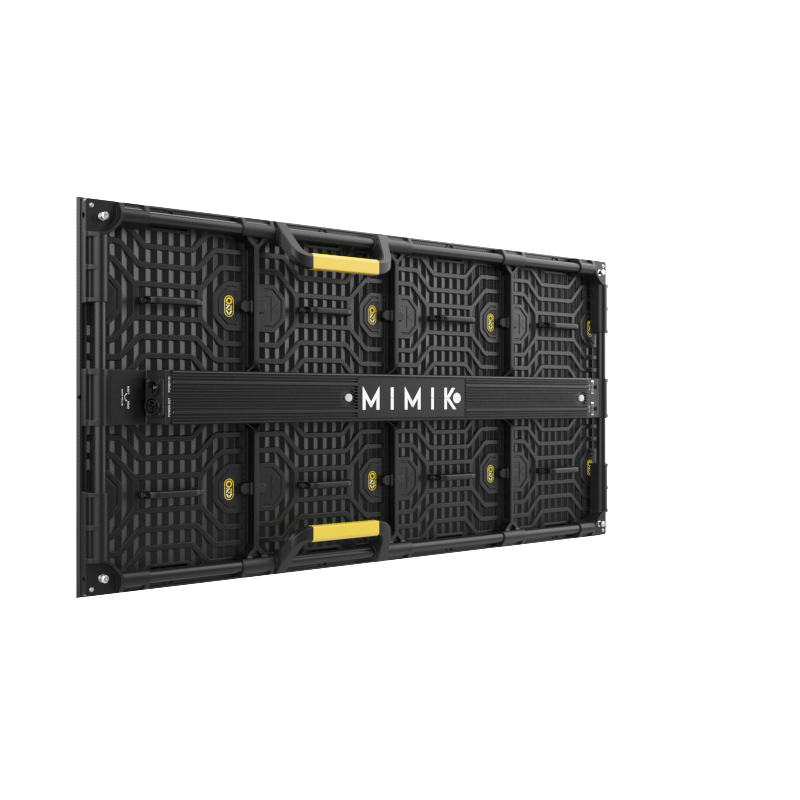

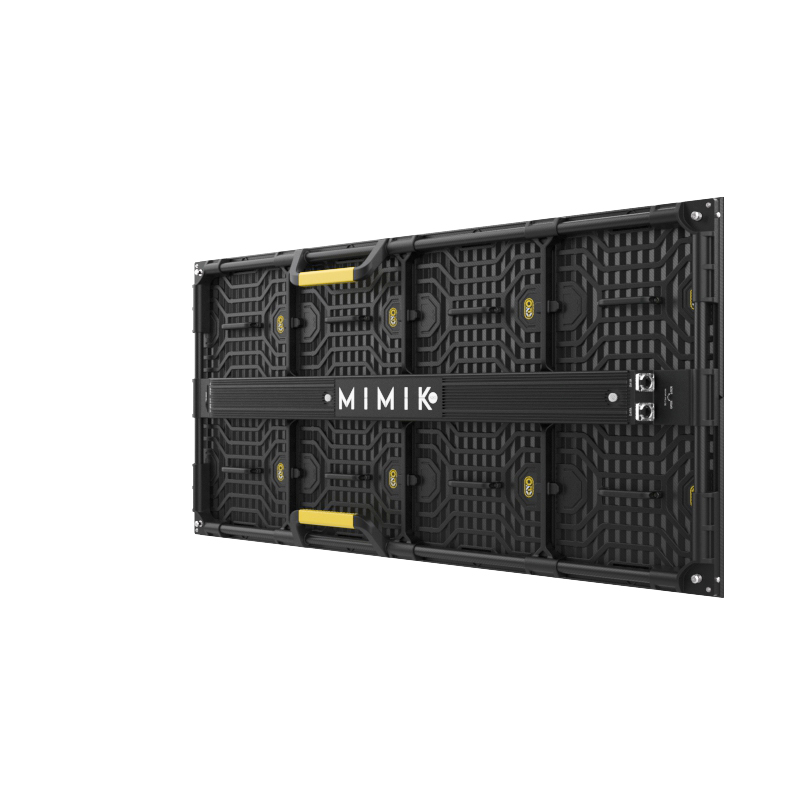

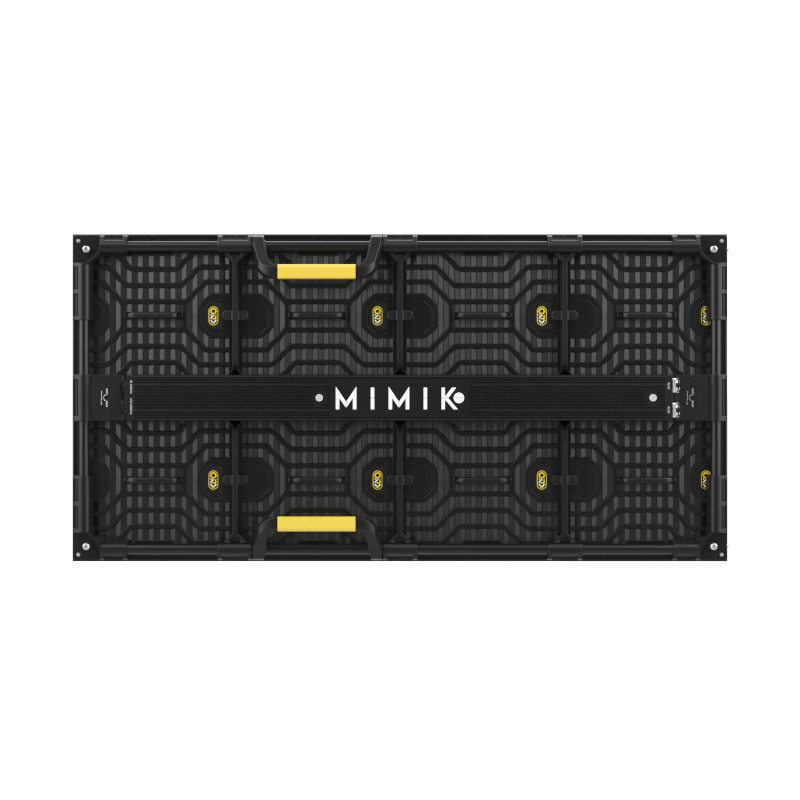

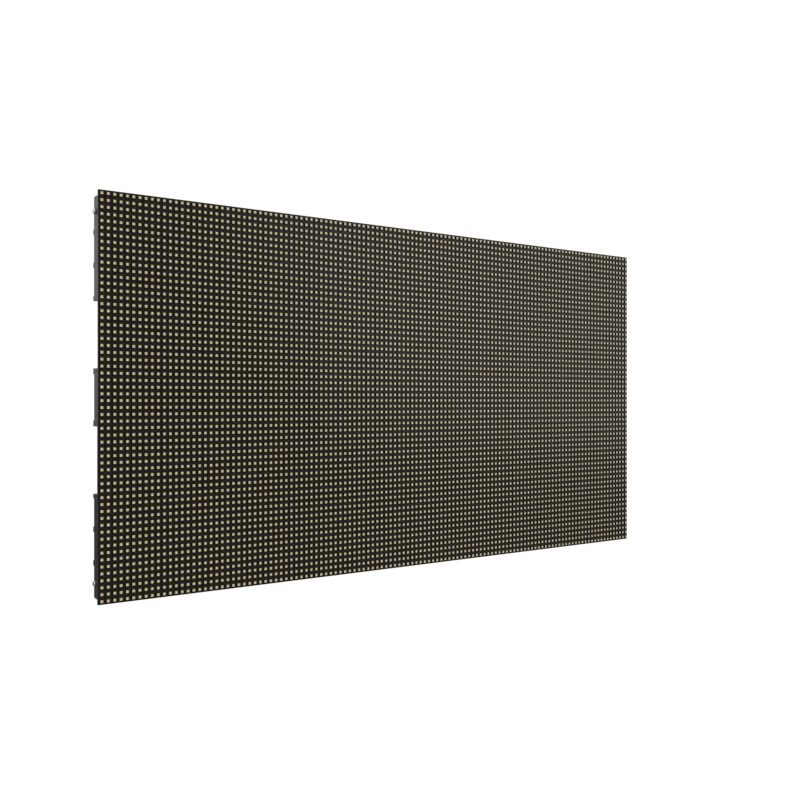

MIMIK 120

MIMIK 120 is an image based video lighting tile that mirrors video content while applying a higher tonal and color rendering range. MIMIK delivers extended spectral bandwidth and cinematic color fidelity when lighting talent and set elements in virtual production environments.

Patented Kino Flo technology translates an incoming RGB video signal into five individual emitters (warm white, cool white, red, green and blue), generating synchronized foreground lighting that creates the utmost realism on virtual sets.

Embodied in a lightweight carbon fiber frame, MIMIK adapts to on-set configurations with easy mobility. Controlled by the Megapixel VR HELIOS LED processor, MIMIK expands real-time and post-production options, delivering 10,000 NITS, along with the ability to shoot as high as 900 frames per second and offer as many as 30 Alpha channels at 30 frames per second.

This revolutionary full spectrum LED image based lighting solution enables latency-free synchronization to an LED volume along with the versatility of optional control from a lighting desk.




FIXTURE FEATURES

MIMIK 120 is a hybrid video lighting tile that mirrors video content while applying a higher tonal and color rendering, delivering extended spectral bandwidth and cinematic color fidelity when lighting talent and set elements in virtual production environments.

Embodied in a lightweight carbon fiber frame, MIMIK 120 adapts to on-set configurations with easy mobility. Controlled by the Megapixel Helios video processor, MIMIK 120 expands real-time and post- production options.

MIMIK 120 displays a full spectrum image that doubles as a light source. Patented Kino Flo technology translates an incoming RGB video signal into five individual emitters (warm white, cool white, red, green and blue), generating foreground lighting that synchronizes with LED volumes and creates the utmost realism on virtual sets.

MIMIK 120 Features

  • Pixel Pitch: 10mm
  • Pixel Count: 7,200 pixels (120 x 60)
  • Pixel Construction: 5 LEDs per pixel – Warm White 2700K,
    Cool White 6500K, Red, Green, Blue
  • LED Package: SMD 5050 – Black Body
  • Viewing Angle Horizontal / Vertical: 140° / 140°
  • LDM (LED Display Module): 8 Total – Magnetically
    attached – Front side Serviceable
  • LDM Transparency: Solid – Black front
  • Scan Ratio: 1/3
  • Refresh Rate: 30kHz (30,720Hz)
  • Gray Scale: 16-bit minimum (65,535 steps)
  • Frames Per Second: 900 fps
  • Max Alpha Channels: 30 at 30 fps
  • Max Brightness Calibrated: ~10,000 nits
  • Input Voltage VAC: 100~240VAC; 50/60Hz
  • Power Consumption Max / Average: 400W / 200W (Varies based on
    video content)
  • Control Software: No software or drivers to install. Controlled thru Megapixel Helios.
  • Receiver Card: 2 x PX1 (Megapixel)
  • Video Processor Required: Megapixel Helios
    • Junior (4096×2160) = 8,847,360 pixels = ~240 MIMIK 120
    • 4K (4096×2160) = 8,847,360 pixels = ~1,200 MIMIK 120
    • 8K (8192×4320) = 35,389,440 pixels = ~2,000 MIMIK 120
  • Frame Material: Carbon Fiber
  • Max. Stacking : 5 Tiles high, no limit to width
  • Tile Linking: Corner blocks, 2-way and 4-way locking
  • Curving (Concave & Convex): Concave (With attachment)
  • Certifications: CE, UKCA, ETL, FCC
  • Patents: US 11,393,372 B2
  • IP Rating: IP20 – Indoor
  • Operational Temp / Humidity: -10°~45°C, 10~90%RH / 14°~113°F,
    10~90%RH
  • Tile Dimension: 120cm x 60cm x 8cm / 47.2” x 23.6” x 3.2”
  • Tile Weight: 12.5kg / 27.6lbs

MIMIK 120 Design


ACCESSORIES

Kits

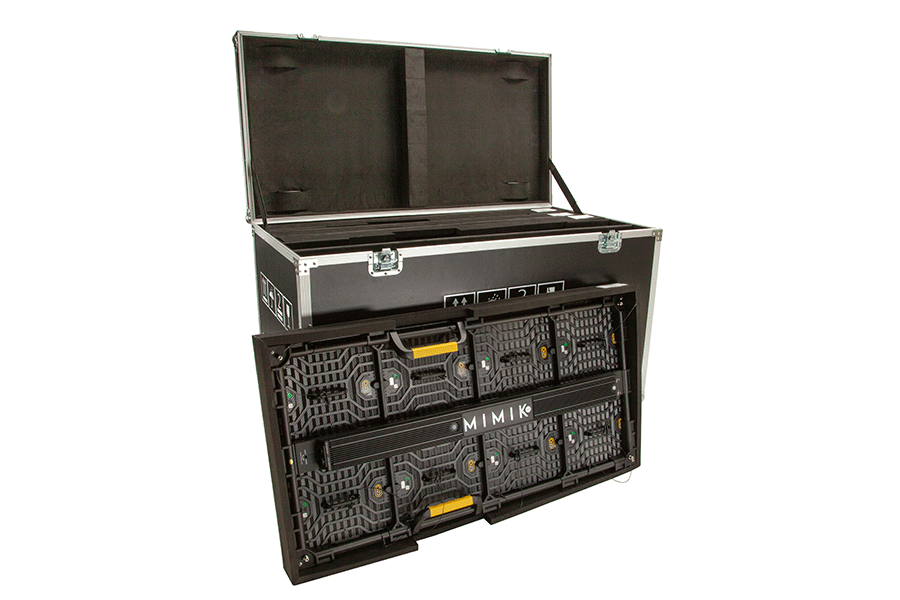

KIT-MIM-1204

MIMIK 120 Kit (4-Unit, Univ)

KIT-MIM-1204Y

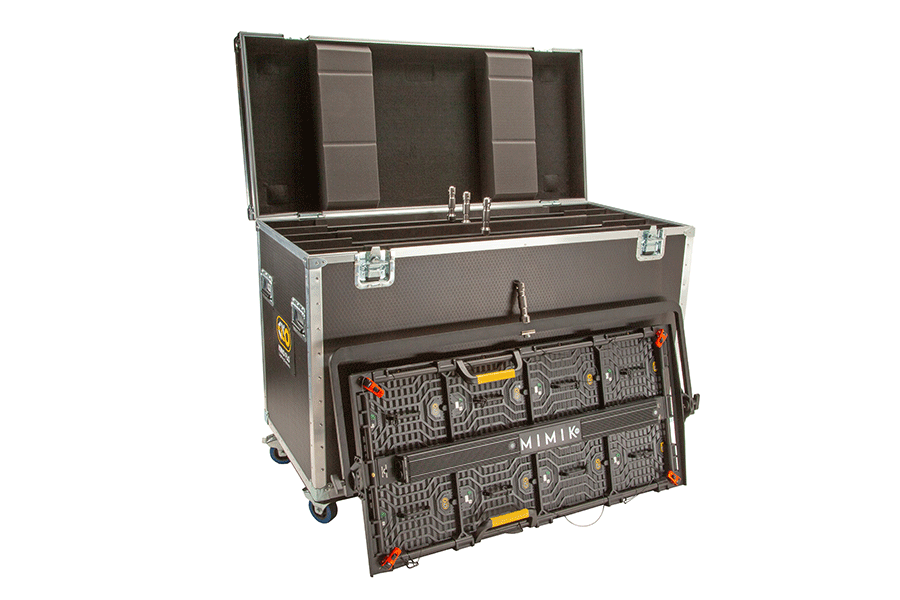

MIMIK 120 Yoke Kit (4-Unit, Univ)

Kit Components

MIMIK 120 Fixture w/ Powercon True1, 10ft (3M)
MIMIK 120 Yoke Assembly
MIMIK 120 Junior Pin
Powercon True1 Jumper, 3ft
Ethernet Data Jumper, 3ft
MIMIK 120 Ship Case (4-Unit)
MIMIK 120 Yoke Ship Case (4-Unit)

Accessories

DAT-E25E

Ethernet Data Jumper, 25ft (E)

LVR-MK120-S

MIMIK 120 SnapGrid, 40°

GROUNDSUPPORT2KIT

MIMIK Floor Standing Support (8-Units)

MTP-MKG1

MIMIK 120 Mount Assembly for GroundSupport2Kit

MTP-MK100

MIMIK Ground Kit to Coupler Bracket

MTP-MK101

MIMIK 2-Point Coupler

MTP-MK102

MIMIK 4-Point Coupler

MTP-MK103

MIMIK Foot Support to Ground Support

MTP-MK104

MIMIK Foot Support 600mm Assembly

MTP-MK105

MIMIK Foot Support 1200mm Assembly

MTP-MK106

MIMIK Locking Lever (Frame)

MTP-MK200

MIMIK 4-Point w/ Speedrail

MTP-MK201

MIMIK 1-Point w/ Speedrail

MTP-MK202

MIMIK 2-Point w/ Speedrail

IPPOWERKONEXT10FT

Powercon True1, 10ft 120VAC

PWC-PC10/230

Powercon True1, 10ft 230VAC

Cases

KAS-MK1204

MIMIK 120 Ship Case (4-Unit)

KAS-MK1204Y

MIMIK 120 Yoke Ship Case (4-Unit)

Megapixel

MEG-HJR

Megapixel Helios Jr.

MEG-SDI

Megapixel SDI (BNC) Input SFP

COMPONENTS

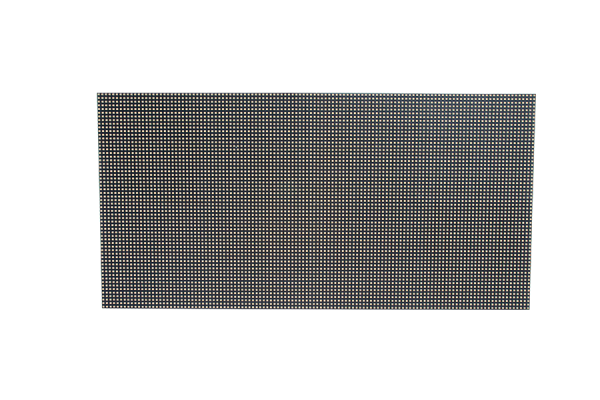

MIMIK 120

MIMIK 120 Fixture w/ Powercon True1, 10ft (3M)

7010066

MIMIK 120 Yoke Assembly

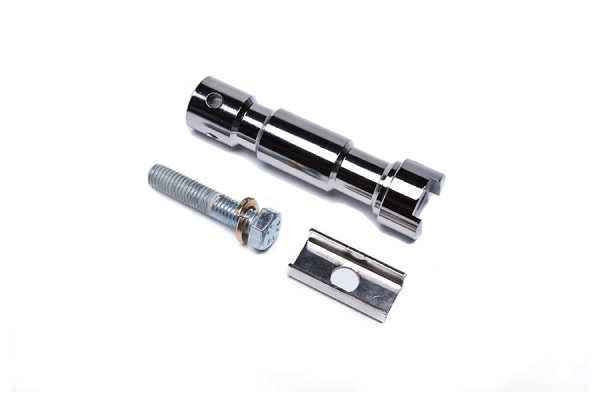

MTP-MK210

MIMIK 120 Junior Pin

PWC-PCJ3

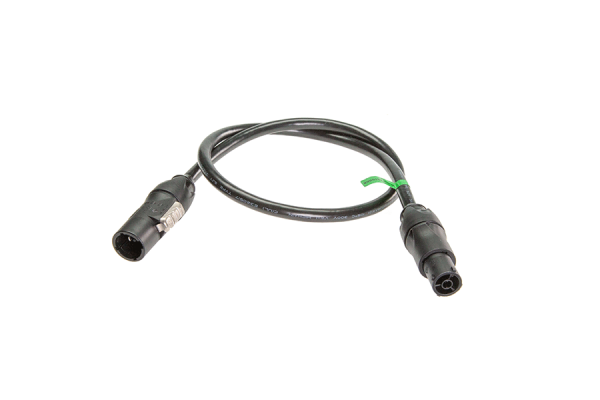

Powercon True1 Jumper, 3ft

DAT-E3

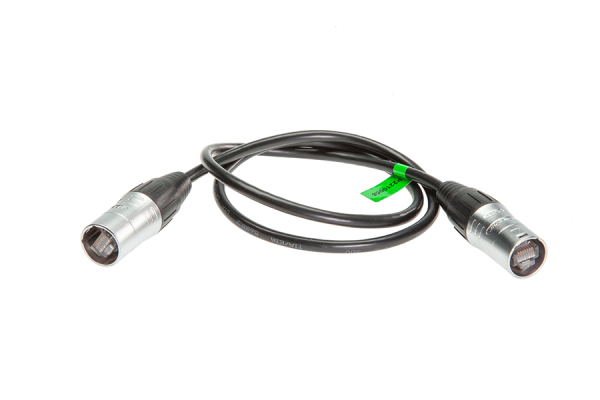

Ethernet Data Jumper, 3ft

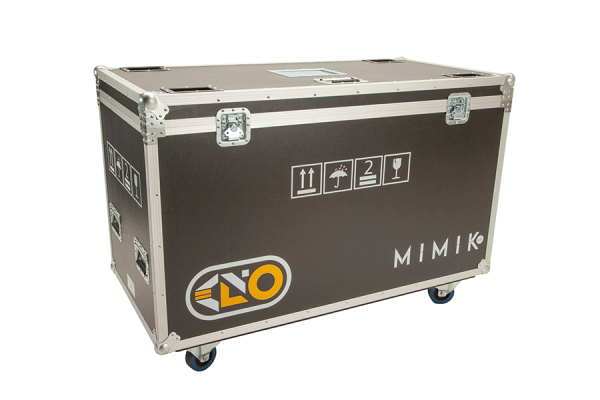

KAS-MK1204 or KAS-MK1204Y

MIMIK 120 Ship Case (4-Unit)
