    LiteRibbon Cinema Hybrid, X6, 24V, 1 m

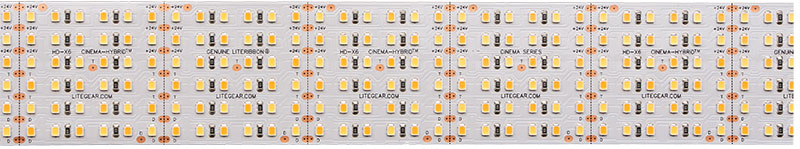

    LiteRibbon Cinema Hybrid X6 24V offers cinema-quality emitters with CRI and full-spectrum output. This LiteRibbon variation features 6 rows of cinema-quality emitters and runs on a 24-volt current.

    Request InfoWhere To Buy

    SPECIFICATIONS

    • Power: 120W (total potential power per 1 meter roll)
    • Input Voltage: 24V DC nominal (16-26V DC constant voltage)
    • Current: 5A (total potential current per 1 meter roll)
    • CCT: Hybrid 2600K (+ / – 100K), 6000K (+/-100K)
    • CRI: 95+ (2600K), 95+ (6000K)
    • TLCI: 96.2 (2600K), 98 (6000k)
    • Beam Angle: 120°
    • Lumens per Meter: 4648.2 (2600k), 5770.6 (6000k)
    • Weight: .06 kg. (2.1 oz.) (with input lead)
    • Width: 50 mm (0.47 in.)
    • Length: 1 m (39 in.)
    • Ribbon Overall Thickness: 1.5 mm (0.06 in.)
    • Cut Segment Length: 50 mm (1.96 in.)
    • Cut Segments per Meter: 20
    • Total LED Quantity: 720
    • LEDs per Meter: 720
    • LEDs per Cut Segment: 36
    • LED Spacing: 8.3 mm (0.33 in.) Center to Center
    • Dimming Range: 0-100%
    • Operating Temperature: -20°C to +50°C (68°F to +122°F)
    • Connector: Phoenix 3-Female
    • Mounting: PSA backing
    • LED Lifetime: 50,000 Hrs
    • IP Rating: 20
    • Certifications: UL Listed (Canada/US), CE Compliant (Europe)

    Downloads

    LiteRibbon Cinema Hybrid X6 Data Sheet
    PDF, 1 MB
    		DOWNLOAD
    LiteRibbon Cinema Hybrid X6_ Data Sheet
    PDF, 1 MB
    		DOWNLOAD

    Additional information

    Weight .244 lbs
    Dimensions 10.5 × 6 × 2.5 in
