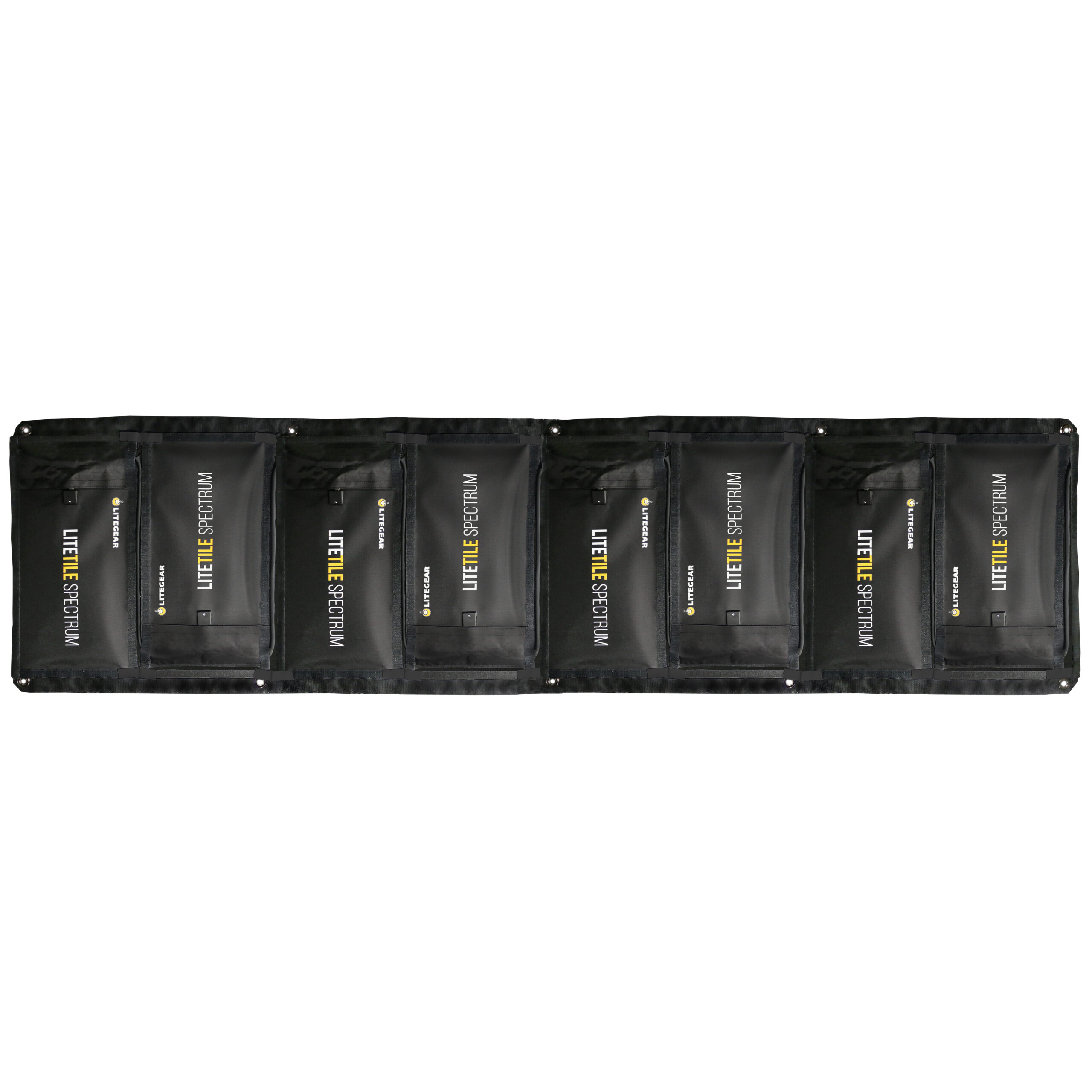

    LiteTile Spectrum 8 Kit

    LiteTile Spectrum 8 is a powerful addition to the LiteGear family of products. With an entirely redesigned light engine, weatherproof housing, lightweight design, and compatibility with existing LiteGear dimmers, the LiteTile Spectrum is in a league all its own. Like the LiteTile Plus, LiteTile Spectrum is constructed of a durable and foldable engineered fabric housing […]

    Request InfoWhere To Buy

    SPECIFICATIONS

    • Product Name: LiteTile Spectrum 8
    • Beam Angle: 120° HPA
    • Input Voltage: 48VDC
    • Input Current: 1.1A per module
    • Power: 50W Nominal per module
    • Total Power: 400W Nominal (480W Maximum)
    • Color Temperature Range: 1,700K to 20,000K
    • Tint Control: Full plus and minus green adjustment
    • Dimming Range: 0 to 100% Continuous (When paired with a
    • Colored Light: 6-color, wide gamut hue and saturation control
    • LED Lifetime: 50,000 hrs
    • Power & Data Connector: PDX
    • Pixels: 64 individual large format pixels
    • IP Rating: IP65
    • Max Operating Temperature: 122°F (50°C)
    • Weight: 16 lbs (7.3 kg)
    • CRI: >= 95
    • TLCI: >= 95
    • Total LED Quantity: 6,144
    • Height: 24 in. (610 mm)
    • Width: 92 in. (2337 mm)
    • Depth: 0.75 in. (19 mm)

    Downloads

    LiteTile Spectrum 8 Data Sheet
    PDF, 1 MB
    		DOWNLOAD

    What's Included

    • LiteTile Spectrum 8 Head
    • LiteDimmer Spectrum AC/DC 400
    • PDX Cable, 25 ft
    • powerCON TRUE1 TOP Mains Cable, Edison/Shuko/Bare Ends

    Additional information

    Weight 7 lbs
    Dimensions 24 × 92 × .75 in
    litetile-spectrum-8-kit-options

    LiteTile Spectrum 8 Kit, Edison, LiteTile Spectrum 8 Kit, Schuko, LiteTile Spectrum 8 Kit, Bare Ends
