    LiteTile Spectrum 4 Kit

    LiteTile Spectrum 4 is a powerful addition to the LiteGear family of products. With an entirely redesigned light engine, weatherproof housing, lightweight design, and compatibility with existing LiteGear dimmers, the LiteTile Spectrum is in a league all its own. Like the LiteTile Plus, LiteTile Spectrum is constructed of a durable and foldable engineered fabric housing […]

    SPECIFICATIONS

    • Product Name: LiteTile Spectrum 4
    • Beam Angle: 120° HPA
    • Input Voltage: 48VDC
    • Input Current: 1.1A per module
    • Power: 50W Nominal per module
    • Total Power: 200W Nominal (240W Maximum)
    • Color Temperature Range: 1,700K to 20,000K
    • Tint Control: Full plus and minus green adjustment
    • Dimming Range: 0 to 100% Continuous (When paired with a
    • Colored Light: 6-color, wide gamut hue and saturation control
    • LED Lifetime: 50,000 hrs
    • Power & Data Connector: PDX
    • Pixels: 32 individual large format pixels
    • IP Rating: IP65
    • Max Operating Temperature: 122°F (50°C)
    • Weight: 8 lbs (3.6 kg)
    • CRI: >= 95
    • TLCI: >= 95
    • Total LED Quantity: 3,072
    • Height: 24 in. (610 mm)
    • Width: 46.5 in. (1182 mm)
    • Depth: 0.75 in. (19 mm)

    Downloads

    LiteTile Spectrum 4 Data Sheet
    PDF, 1 MB
    DOWNLOAD
    LiteDimmer Spectrum AC 600 User Guide OS 4.0
    PDF, 1 MB
    DOWNLOAD
    LiteDimmer Spectrum AC DC 200 and 400 User Guide OS 4.0
    PDF, 1 MB
    DOWNLOAD
    LiteDimmer Spectrum Firmware OS 4.0.06
    BIN, 1 MB
    DOWNLOAD
    LiteTile Spectrum 4 GDTF Profile Spectrum OS 4.0.06
    GDTF, 2 MB
    DOWNLOAD
    LiteTile Spectrum Ultra Light Engine Firmware OS 4.0
    UF2, 402 KB
    DOWNLOAD
    RDM and DMX Profile Tables Spectrum OS 4.0
    PDF, 741 KB
    DOWNLOAD
    Spectrum OS 4.0 Release Notes
    PDF, 341 KB
    DOWNLOAD

    What's Included

    • LiteTile Spectrum 4 Head

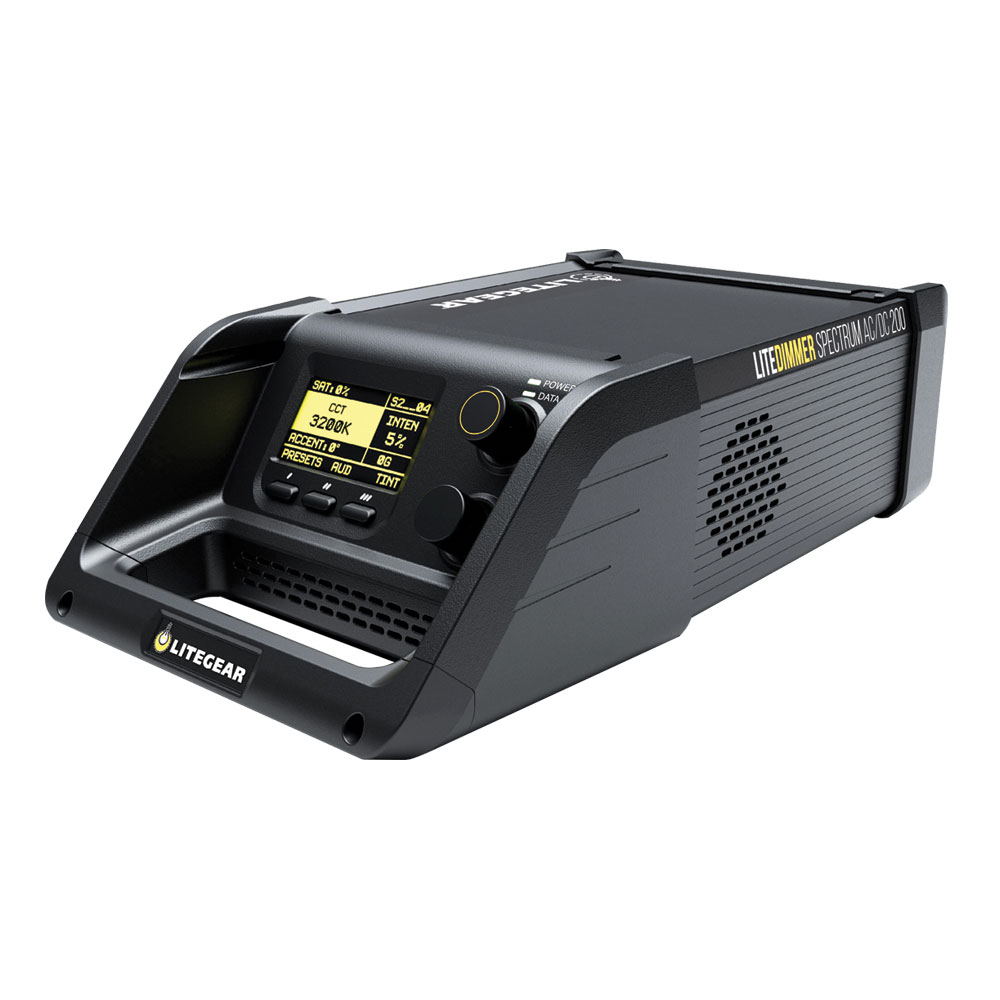

    • LiteDimmer Spectrum AC/DC 200
    • PDX Cable, 25 ft
    • powerCON TRUE1 TOP Mains Cable, Edison/Shuko/Bare Ends

    Additional information

    Weight 7 lbs
    Dimensions 24 × 46.5 × .75 in
    litetile-spectrum-4-kit-options

    LiteTile Spectrum 4 Kit, Edison, LiteTile Spectrum 4 Kit, Schuko, LiteTile Spectrum 4 Kit, Bare Ends
