    SPECIFICATIONS

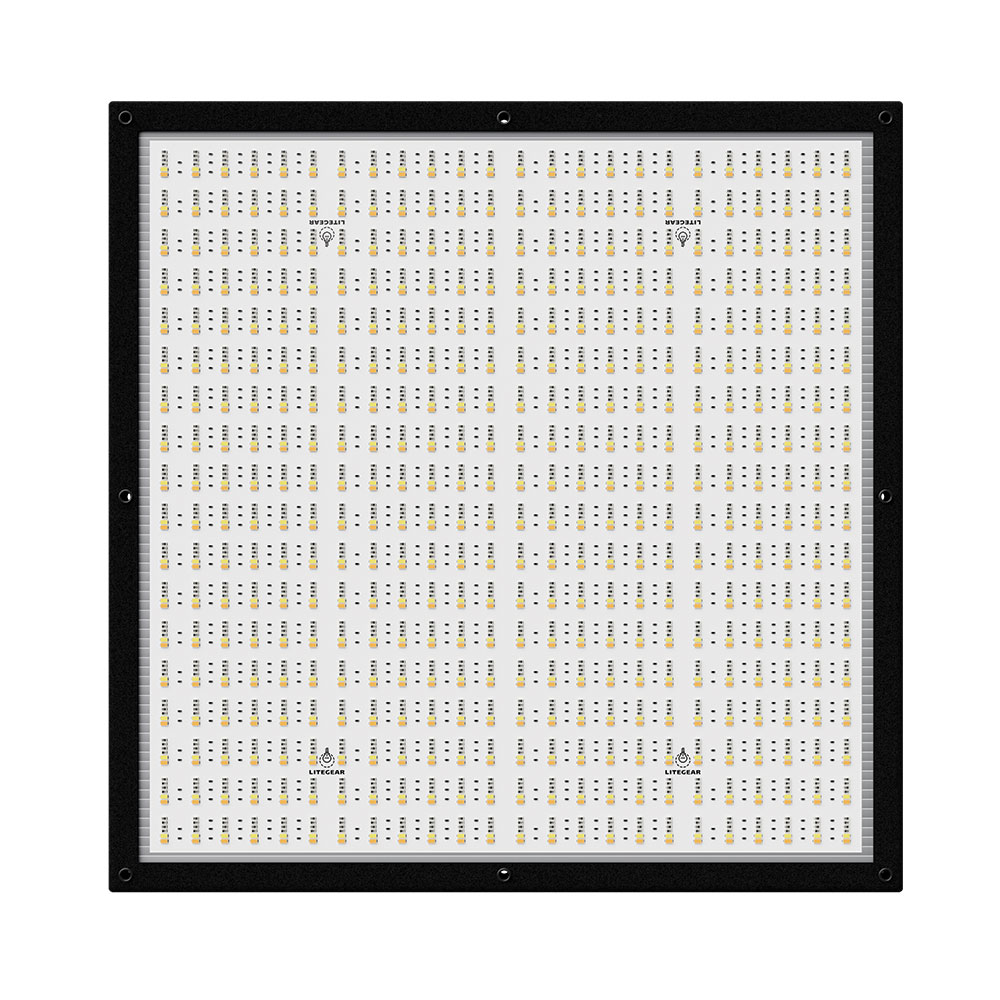

    • Product Name: LiteMat Spectrum 2
    • Item Number: LM-SPECTRUM-TWO-G2
    • Model: 252-1
    • Beam Angle: 56° HPA
    • Input Voltage: 48V DC
    • Input Current: 2.08A
    • Total Power: 100W Nominal
    • Color Temperature Range: 2,000K to 11,000K
    • Tint Control: Full plus and minus green adjustment
    • Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)
    • Colored Light: 6-color, wide gamut hue and saturation control
    • LED Lifetime: 50,000 hrs
    • Power & Data Connector: PDX
    • Pixels: 2 large format pixels
    • IP Rating: IP20
    • Max Operating Temperature: 122°F (50°C)
    • Weight: 7.19 lbs (3.3 kg)
    • CRI: >= 95
    • TLCI: >= 95
    • Total LED Quantity: 2,592
    • Height: 21.1 in. (535.4 mm)
    • Width: 21.1 in. (535.4 mm)
    • Depth: 1 in. (25.4 mm)
    • Mounting: kMount
    • Certifications: ETL, CE, UKCA, FCC (certification pending)

    Downloads

    LiteMat Spectrum 2023 Quick Start Guide
    PDF, 2 MB
    DOWNLOAD
    LiteMat Spectrum 2023 User Guide
    PDF, 8 MB
    DOWNLOAD
    LiteMat Spectrum Symbols Vectorworks 2024
    VWX, 92 MB
    DOWNLOAD
    LiteMat Spectrum Symbols Vectorworks 2023
    VWX, 106 MB
    DOWNLOAD
    LiteMat Spectrum QuickStart Guide
    PDF, 849 KB
    DOWNLOAD
    LiteMat Spectrum 2 Gen 2 Data Sheet
    PDF, 912 KB
    DOWNLOAD

    What's Included

    • LiteMat Spectrum 2 Head (2023)
    • LiteDimmer Spectrum AC/DC 200
    • LiteMat 2 Full Diffuser
    • LiteMat 2 Half Diffuser
    • LiteMat 2 Quarter Diffuser
    • LiteMat 2 PolySkirt
    • PDX Cable, 25 ft.
    • kMount
    • LiteMat 2 KitBag

    Additional information

    Weight 34 lbs
    Dimensions 45.5 × 10 × 27.5 in
    litemat-spectrum-2-kit-options

    LiteMat Spectrum 2 Kit, Edison, LiteMat Spectrum 2 Kit, Schuko, LiteMat Spectrum 2 Kit, Bare Ends
