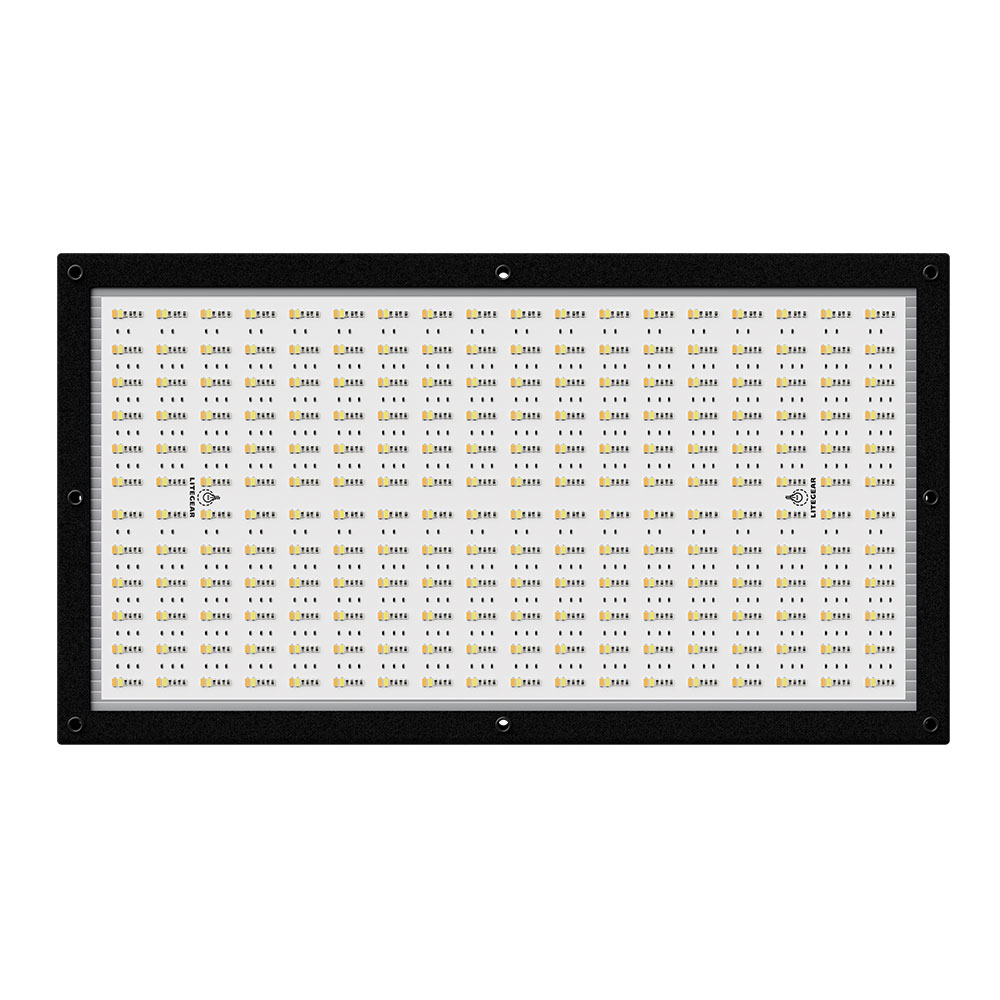

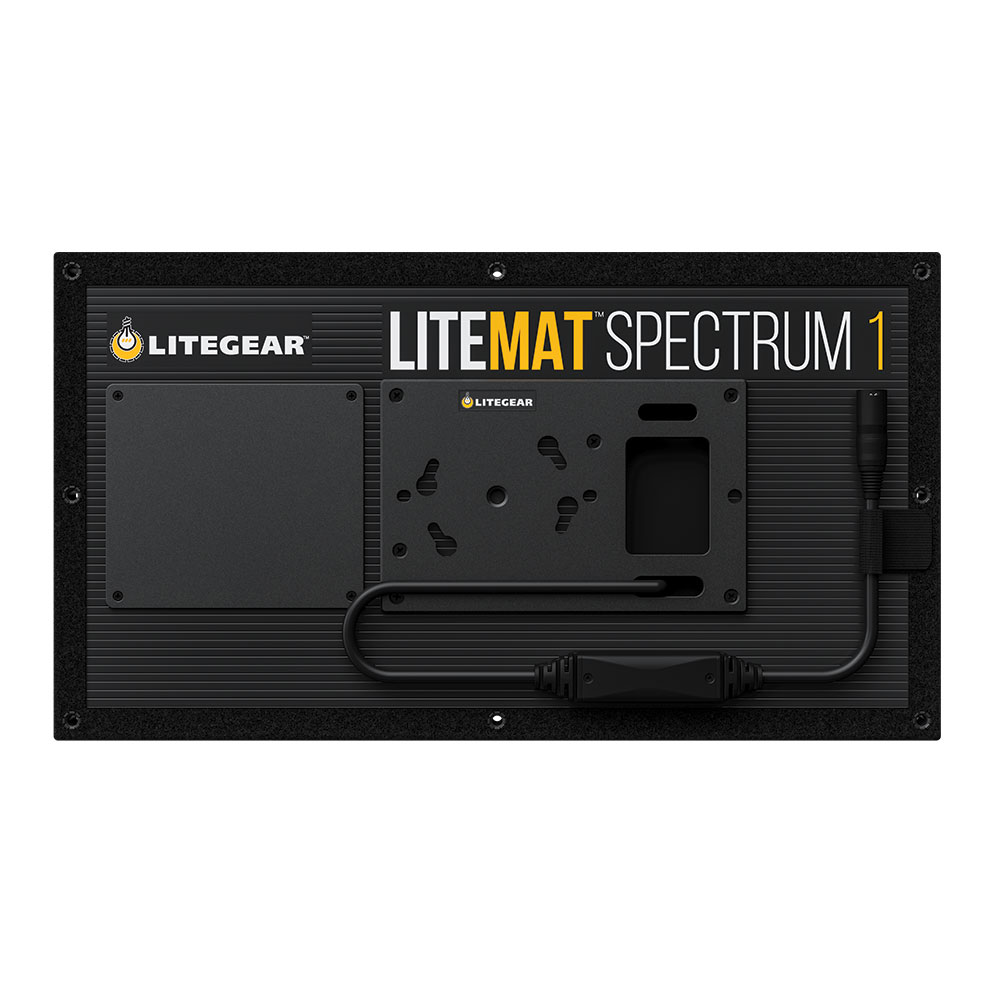

    LiteMat Spectrum 1 Kit (Gen 2)

    Designed to be rigid, lightweight, ultra-thin, and easy to rig, the versatile LiteMat Spectrum 1 is the go-to lighting solution for stage, studio, or location lighting setups. The evolution of the LiteMat Spectrum includes a more robust design in a feature-packed fixture that will meet your lighting needs now and into the future. Features included […]

    Request InfoWhere To Buy

    SPECIFICATIONS

    • Product Name: LiteMat Spectrum 1
    • Item Number: LM-SPECTRUM-ONE-G2
    • Model: 251-1
    • Beam Angle: 50° HPA
    • Input Voltage: 48V DC
    • Input Current: 1.04A
    • Total Power: 50W Nominal
    • Color Temperature Range: 2,000K to 11,000K
    • Tint Control: Full plus and minus green adjustment
    • Dimming Range: 0 to 100% Continuous (When paired with a
    • Colored Light: 6-color, wide gamut hue and saturation control
    • LED Lifetime: 50,000 hrs
    • Power & Data Connector: PDX
    • Pixels: 1 large format pixel
    • IP Rating: IP20
    • Max Operating Temperature: 122°F (50°C)
    • Weight: 4.7 lbs (2.1 kg)
    • CRI: >= 95
    • TLCI: >= 95
    • Total LED Quantity: 2,592
    • Height: 11.6 in. (295.4 mm)
    • Width: 21.1 in. (535.4 mm)
    • Depth: 1 in. (25.4 mm)
    • Mounting: LiteMount
    • Certifications: ETL, CE, UKCA, FCC (certification pending)

    Downloads

    LiteMat Spectrum QuickStart Guide
    PDF, 849 KB
    		DOWNLOAD
    LiteMat Spectrum 1 Gen 2 Data Sheet
    PDF, 762 KB
    		DOWNLOAD

    What's Included

    • LiteMat Spectrum 1 Head (2023)
    • LiteDimmer Spectrum AC/DC 200
    • LiteMat 1 Full Diffuser
    • LiteMat 1 Half Diffuser
    • LiteMat 1 Quarter Diffuser
    • LiteMat 1 PolySkirt
    • PDX Cable, 25 ft.
    • powerCON TRUE1 TOP Mains Cable, Edison 3 m
    • LiteMount
    • LiteMat 1 KitBag

    Additional information

    Weight 28 lbs
    Dimensions 45.5 × 10 × 20.5 in
    litemat-spectrum-1-kit-options

    LiteMat Spectrum 1 Kit, Edison, LiteMat Spectrum 1 Kit, Schuko, LiteMat Spectrum 1 Kit, Bare Ends
