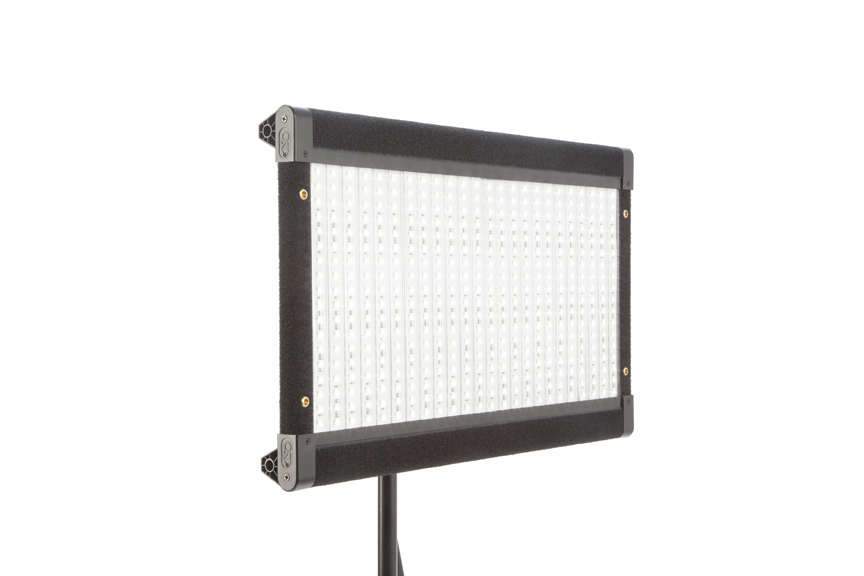

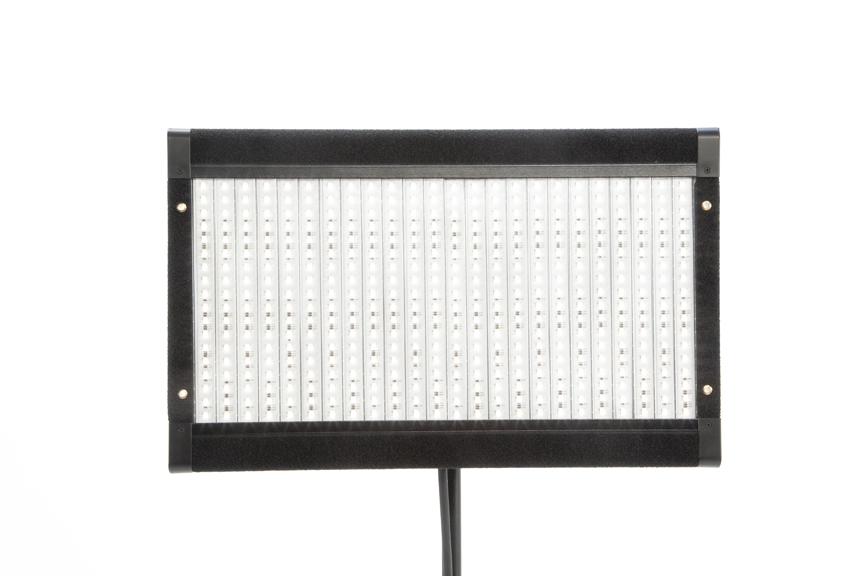

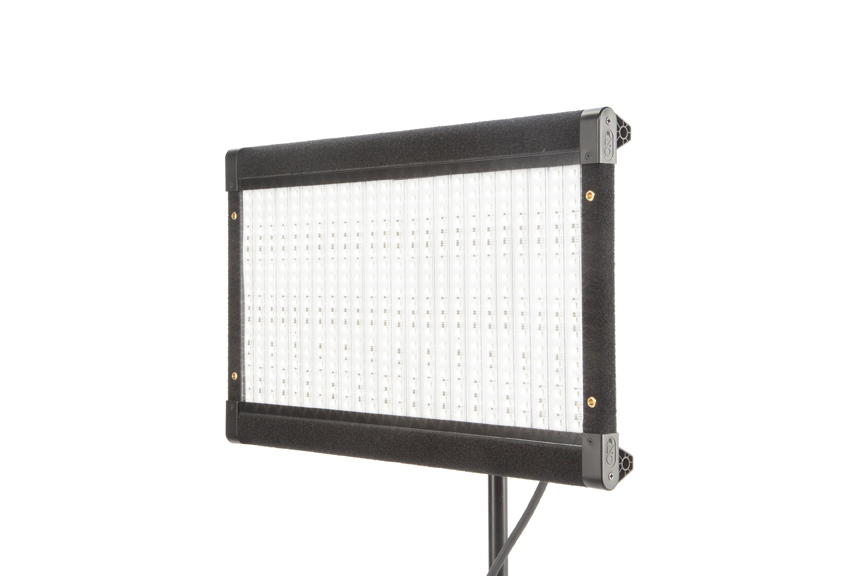

FreeStyle Air Mini

The FreeStyle Air Mini arrives ready to take its place as a lightweight accessory that integrates seamlessly with existing FreeStyle systems. Compatible with FreeStyle mounts, extension cables and LED-140 & LED-150 Series controllers, this portable thin profile panel offers the advantages of easy deployment and favorable cost of ownership to current FreeStyle owners and operators.

In addition to a twist-on mount for light stands, and corner bumpers for 4-point hangs, the FreeStyle Air Mini comes with eyelets to simplify overhead and other surface attachment. Its rigid construction prevents any flex when handling and safeguards the integrity of its components. Usable LED life is extended with a proven passively-cooled design that ensures color and luminosity remain stable over the rated life of the LEDs.

Ease of maintenance is built into a user serviceable design. It features a removable upper rail and quick access to pull-out LED platens that are easily replaced or repaired.

Combining new mobility and reliable performance with familiar features, the FreeStyle Air Mini delivers Kino Flo’s renowned Color Science LED technology in this lightweight addition to the range.
—-
Color Rendering:
TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
FreeStyle Air Mini Physical:
Weight: 3 lbs / 1kg
Size: 21 x 2 x 13″ (53 x 5 x 33cm)

Now available and shipping


FIXTURE FEATURES

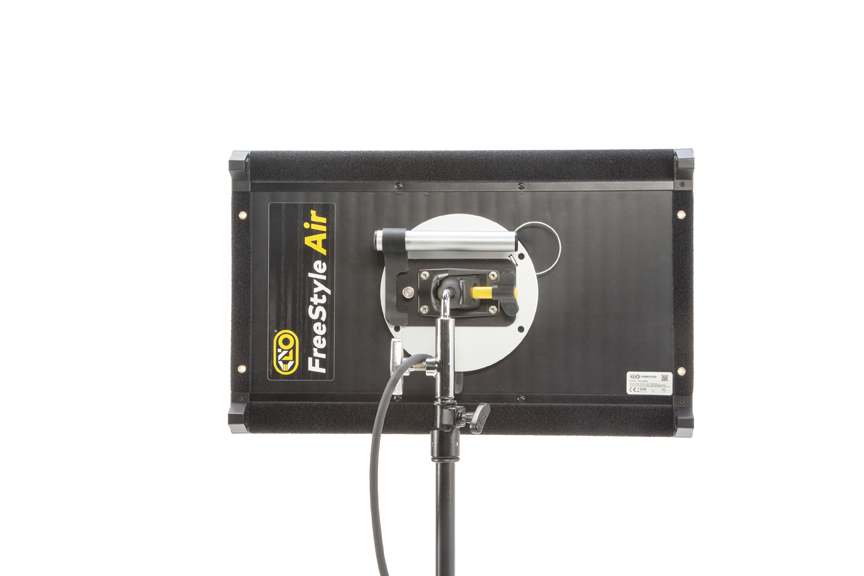

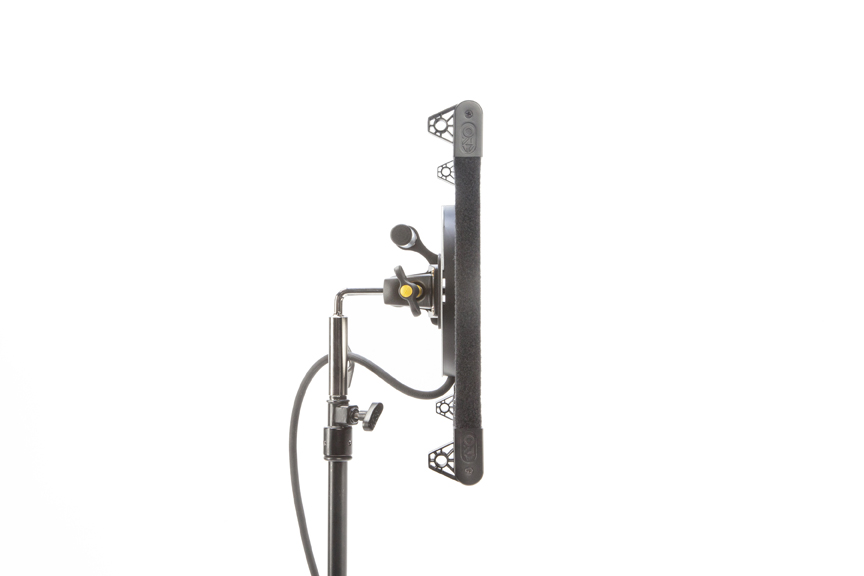

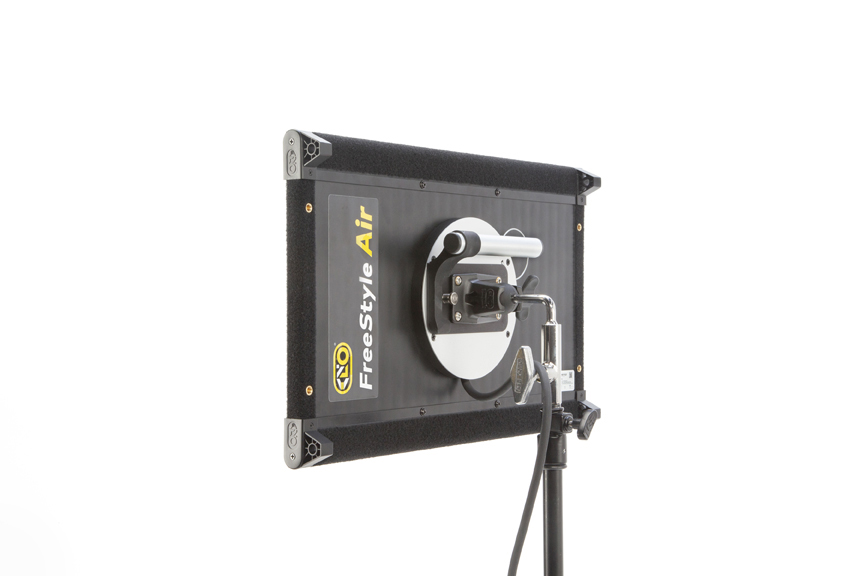

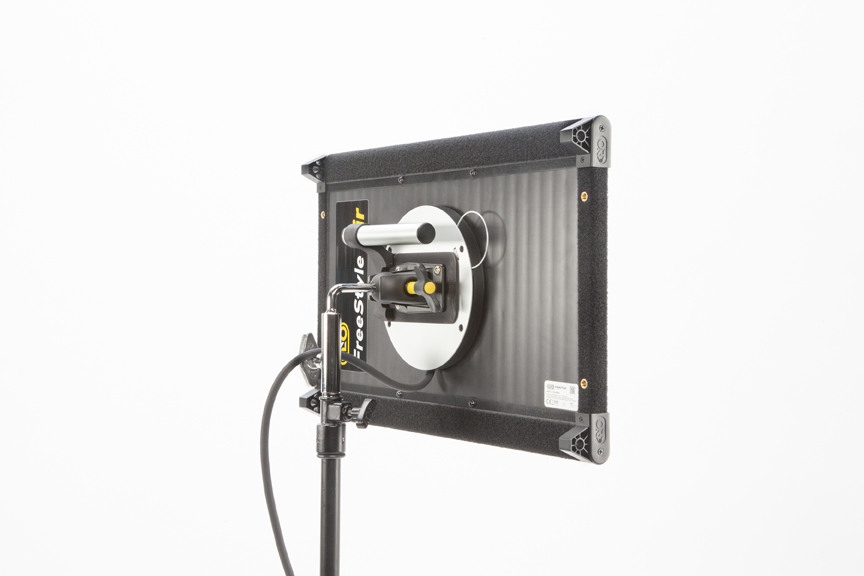

The FreeStyle Air Mini is lightweight with a slim profile. It includes a built-in harness and a twist-on mating plate to accept a twist-on mount. The four molded corners offer additional rigging points for rope hanging, for example. With the KinoGrip mount, the fixture can be hand-held. When the mount is removed, the fixture is flat and can be screwed to the wall or ceiling through its eyelets.

FreeStyle Air Mini Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
  • The firmware is updatable from a PC using the Mini B USB data port
  • FreeStyle Air Mini Dimensions:
    21 x 2 x 13” (53 x 5 x 33cm)
  • Weight: 3 lb (1kg)

FreeStyle Air Mini Design

  • Remote fixture
  • KinoGrip Center Mount
  • Lightweight, slim profile
  • Mounts to stand, light enough to be hand-held

ACCESSORIES

Kit/System

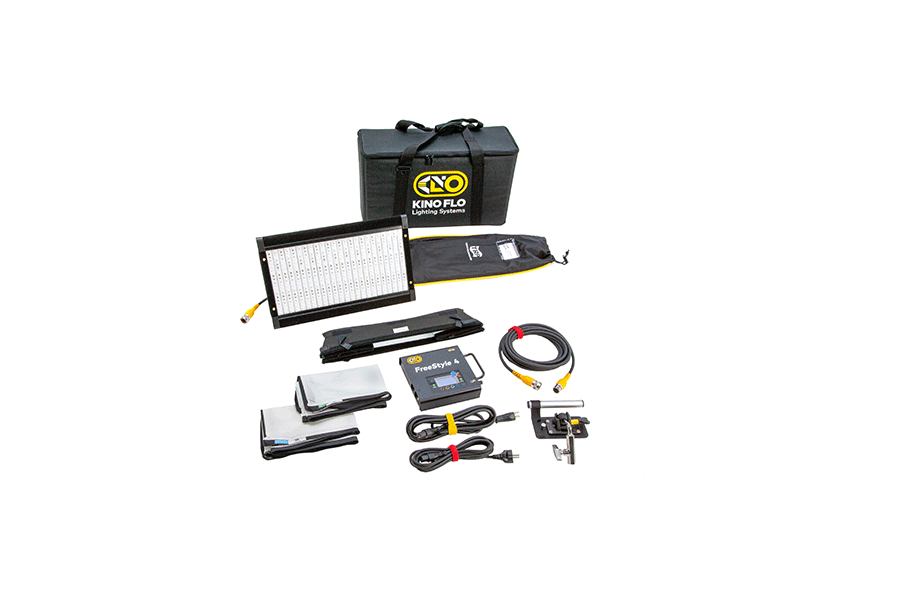

KIT-FAMINI

FreeStyle Air Mini LED DMX Kit, Univ w/ Soft Case

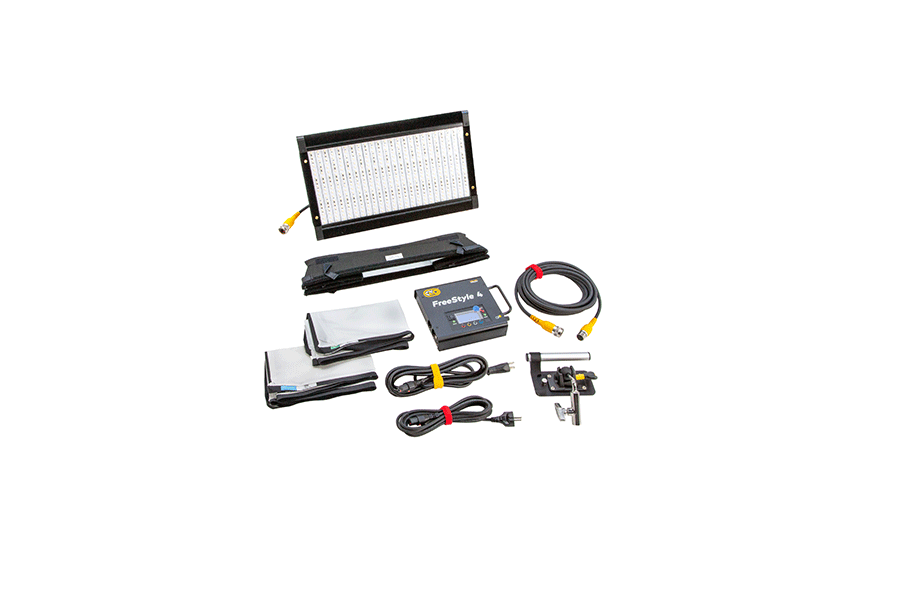

SYS-FAMINI

FreeStyle Air Mini LED DMX System, Univ

Kit/System Components

PAN-AMINI

FreeStyle Air Mini LED Panel

DFS-FAM

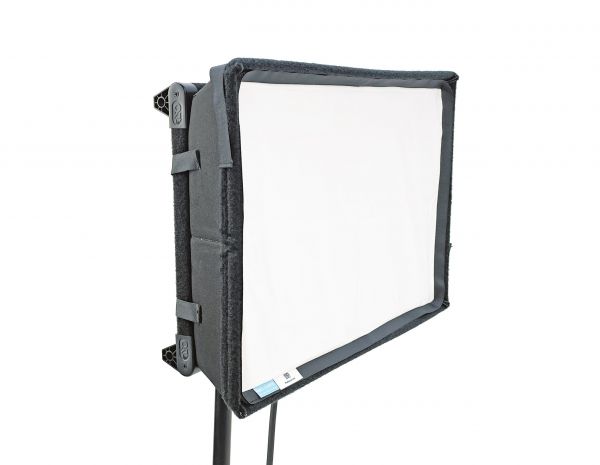

FreeStyle Air Mini SnapBox w/ 2 x Diffusion

LED-140X-120U

FreeStyle 140 LED DMX Controller, Univ 120U

LED-140X-230U

FreeStyle 140 LED DMX Controller, Univ 230U

MTP-BG41S

KinoGrip 41K Mount w/ Baby Receiver Short (16mm)

X12-F425

FreeStyle/4 Extension, 25ft

BAG-FAM

FreeStyle Air Mini Soft Case

Accessories

LVR-FAM40

FreeStyle Air Mini SnapGrid, 40°

MTP-BG41

KinoGrip 41K Mount w/ 5/8” Baby Receiver (16mm)

MTP-KG41

KinoGrip 41K Mount w/ 3/8” Pin (10mm)

MTP-BW41

Kino 41K Mount Wing w/ Baby Receiver (16mm)

MTP-BW41S

Kino 41K Mount Wing w/ Baby Receiver Short (16mm)

MTP-KW41

Kino 41K Mount Wing w/ 3/8” Pin (10mm)

MTP-BAL1

Kino Bal/LED Controller Mount (16mm)

XLR-310

3-Pin Xlr DC Power Cable, 10ft

Stands/Cases

STD-M30

Medium Duty, 3-Rise 30”

STD-M36

Medium Duty, 3-Rise 36”

STD-D1

Reverse Stand

BAG-FAM

FreeStyle Air Mini Soft Case

COMPONENTS

  • PAN-AMINI

    FreeStyle Air Mini LED Panel

  • DFS-FAM

    FreeStyle Air Mini SnapBox w/ 2 x Diffusion

  • LED-140X-120U/230U

    FreeStyle 140 LED DMX Controller

  • MTP-BG41S

    KinoGrip 41K Mount w/ Baby Receiver Short (16mm)

  • X12-F425

    FreeStyle/4 Extension, 25ft
