    LiteCard, Cinema Series, Standard Density, Hybrid, 12V

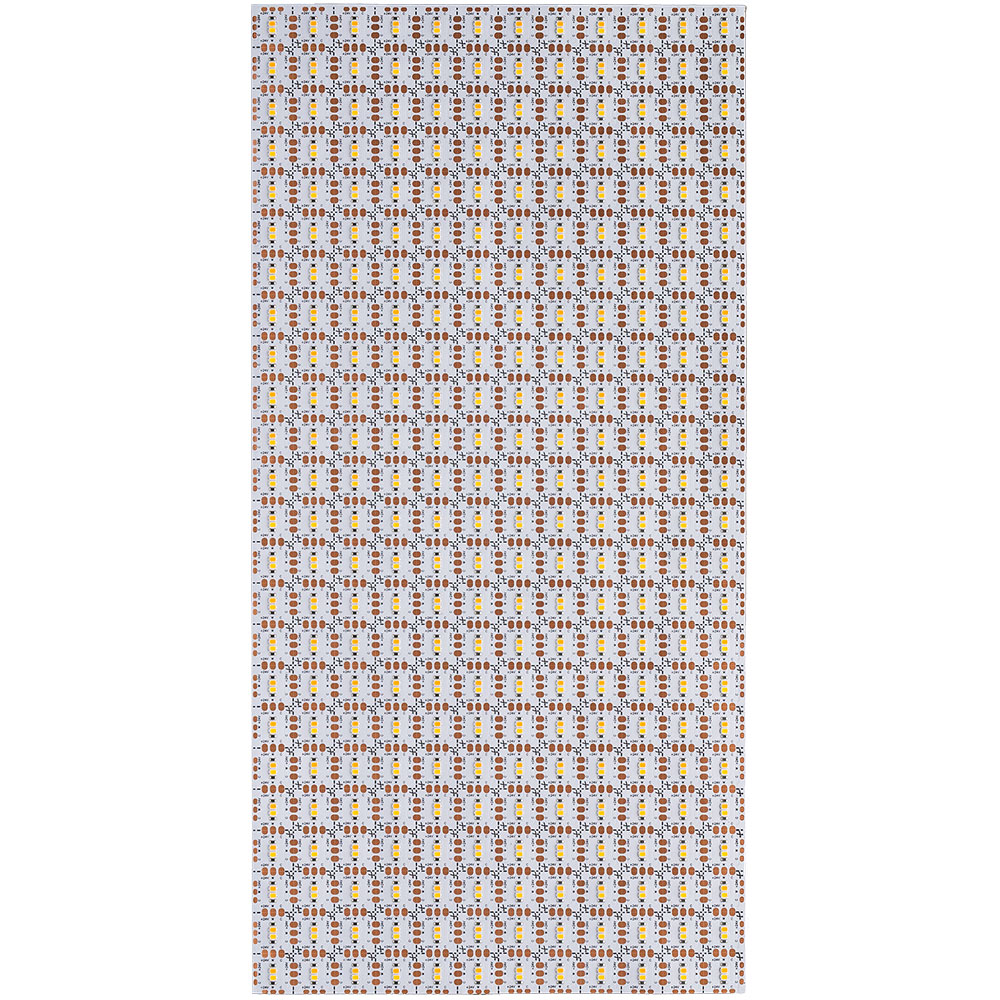

    LiteCard Cinema Series, Standard Density, Hybrid, 12V features a flexible array of emitters can be cut to your desired size. This variation of LiteCard features our standard density and runs on a 12-volt current.

    Request InfoWhere To Buy

    SPECIFICATIONS

    • Power: 50W
    • Input Voltage: 12V DC nominal (8-13.5V DC constant voltage)
    • Current: 4.17A
    • CCT: Hybrid 2600K (+/-100K), 6000K (+/-100K)
    • CRI: 95+ (Tungsten), 95+ (Daylite)
    • TLCI: 97 (Tungsten), 96 (Daylite)
    • Beam Angle: 120°
    • Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite)
    • Weight: 0.31 lb. (.14 kg)
    • PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.)
    • Card Overall Thickness: 2.2 mm (0.087 in.)
    • Segment Dimensions: 60 mm (.79 in.) x 80 mm (3.14 in.)
    • Segments per Card: 24
    • Total LED Quantity: 288
    • LEDs per Cut Segment: 12
    • LED Spacing: 20 mm (0.79 in.)
    • Dimming Range: 0-100%
    • Operating Temperature: -20°C to +50°C (68°F to +122°F)
    • Connector: Bare Wire
    • Mounting: Adhesive backing
    • LED Lifetime: 50,000 Hrs
    • IP Rating: 20
    • Certifications: UL Listed (Canada/US), CE Compliant (Europe)

    Downloads

    LiteCard Cinema Hybrid Standard Density Data Sheet
    PDF, 2 MB
    		DOWNLOAD
    LiteCard Cinema Data Sheet Standard
    PDF, 2 MB
    		DOWNLOAD

    Additional information

    Weight .2 lbs
    Dimensions 13 × 13 × 13 in
