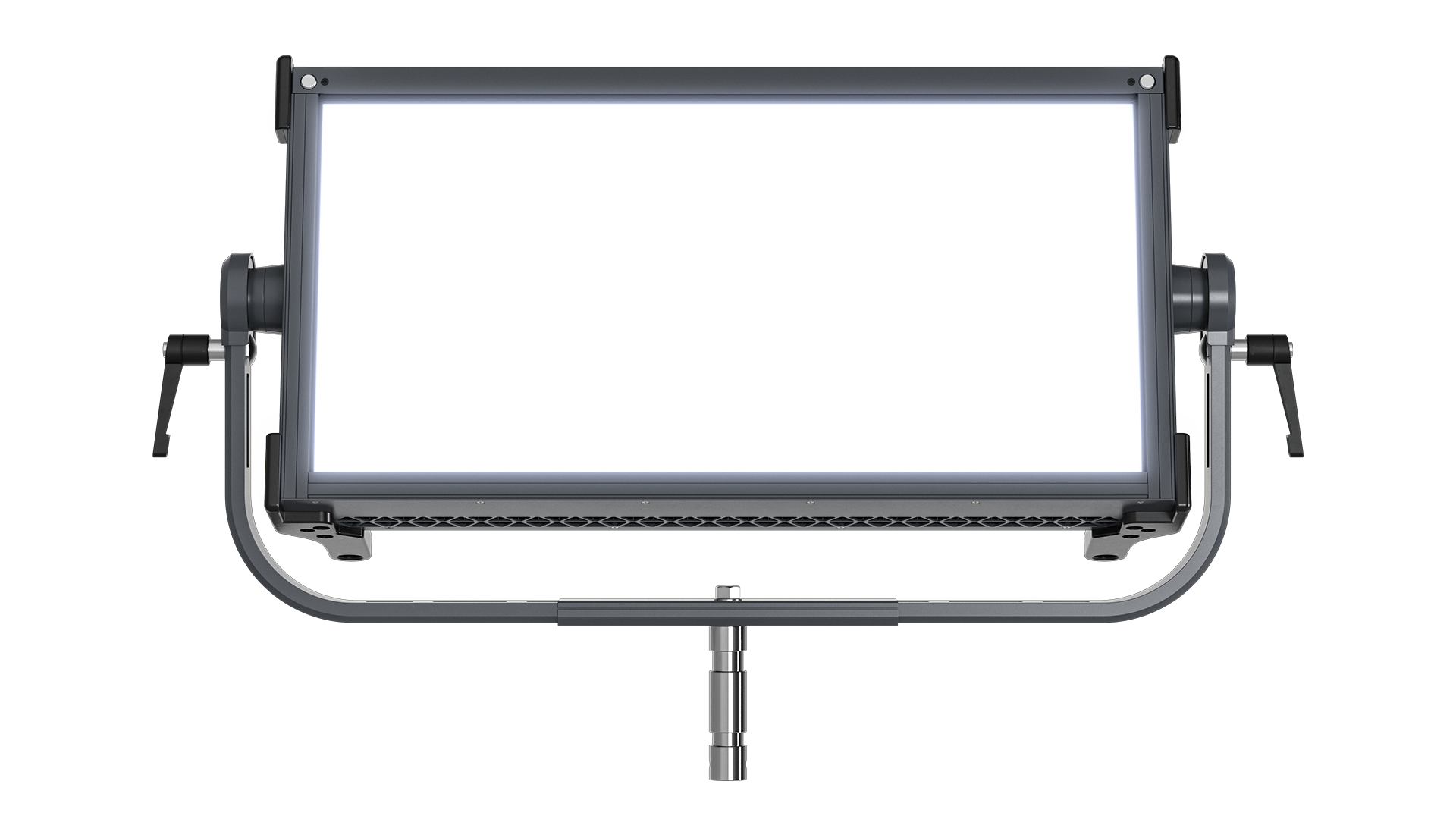

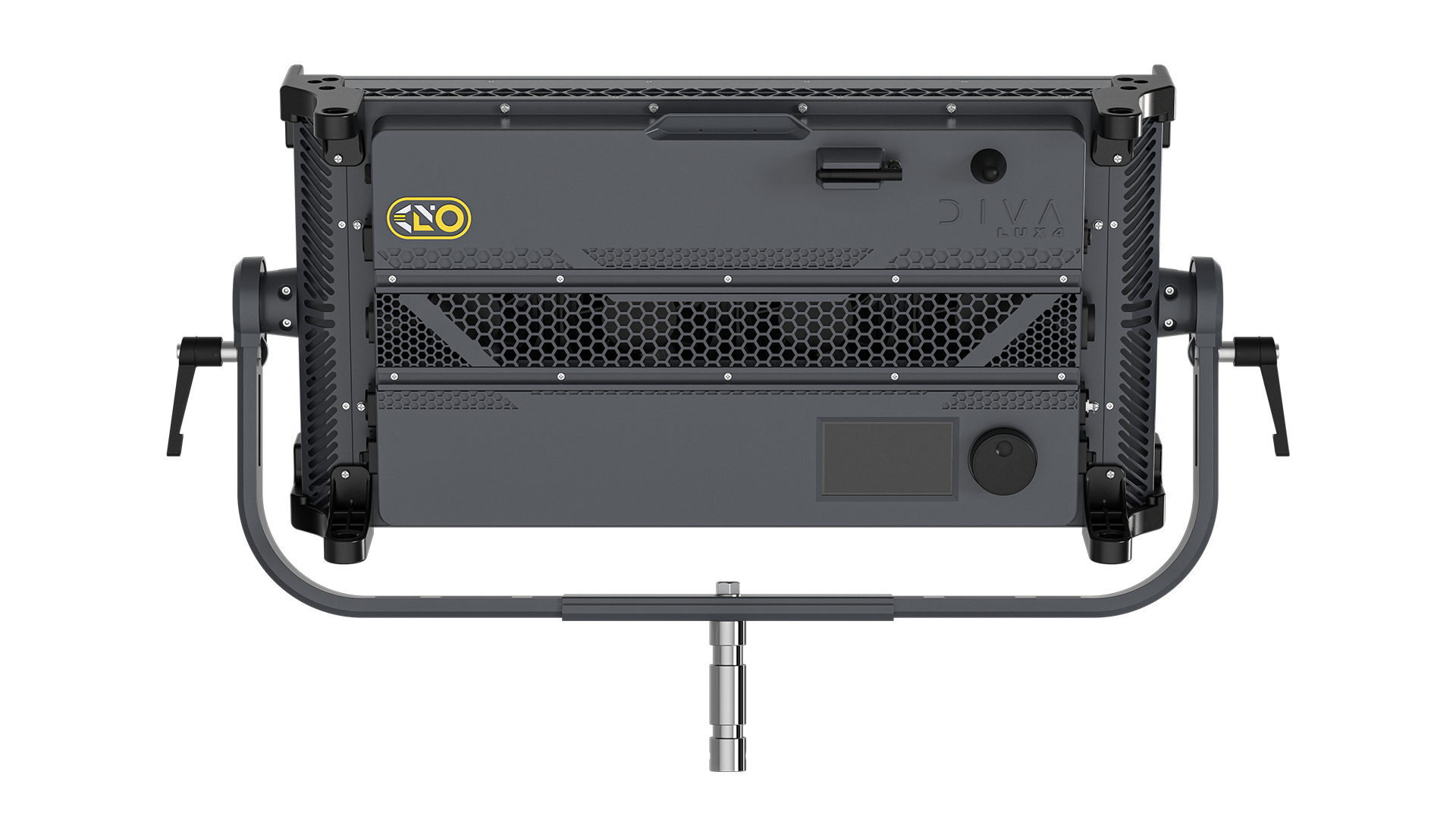

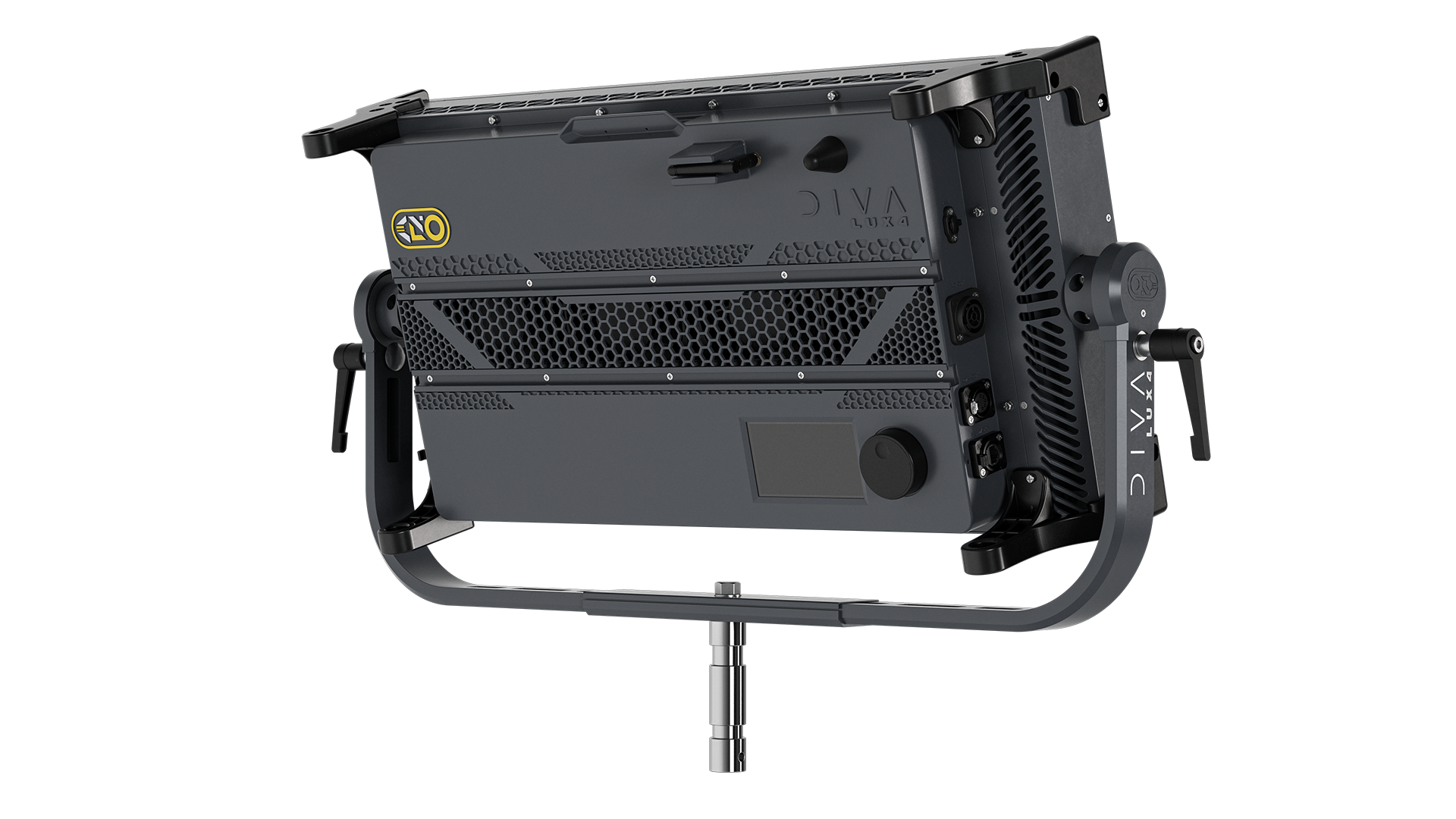

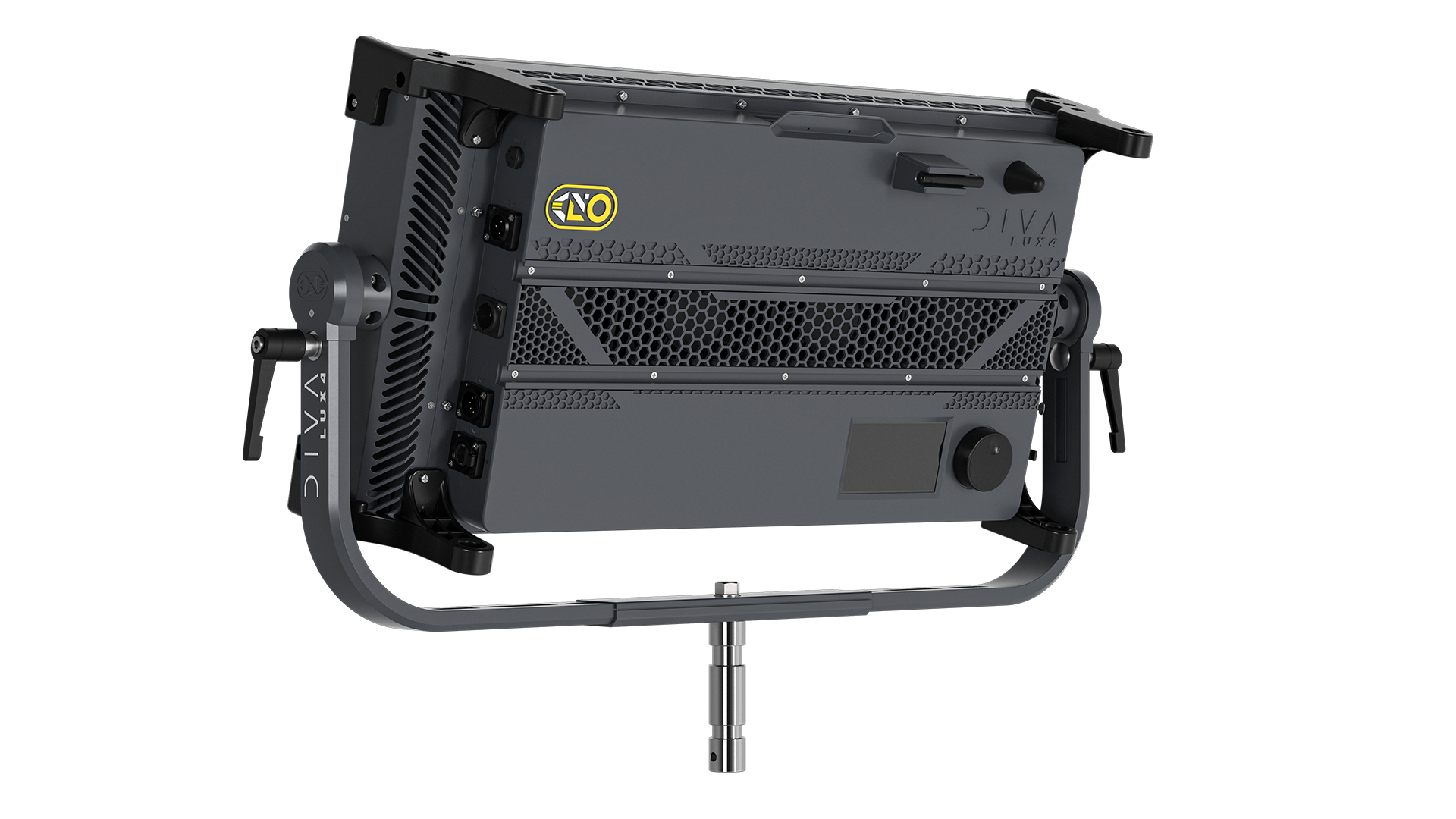

Diva Lux 4

Diva Lux 4 is a bright, energy-efficient softlight designed to deliver best-in-class white light and color space spectrums in any indoor environment. An innovative new RGBwWcW LED engine drives Diva Lux 4’s full power at all white points and nearly all color points, and incorporates two new and improved full-spectrum white sources that offer the highest quality soft white light on the market.

Dial in your look with True Match® firmware that enables easy on-board control and facilitates remote configuration and operation via RDM and DMX. LumenRadio wireless DMX comes standard, with the option to choose Multiverse wireless DMX at the time of purchase or change any time through our service center.

Diva Lux 4 puts the broadest spectrum white light and the fullest color spectrum within reach for broadcast studios, houses of worship, and film/TV lighting.

FIXTURE FEATURES

Diva Lux 4 Features

  • Full 400 watts of output at all white points and most color points
  • 4 independently controlled zones
  • Built in CRMX Control – Factory swappable to City Theatrical Multiverse

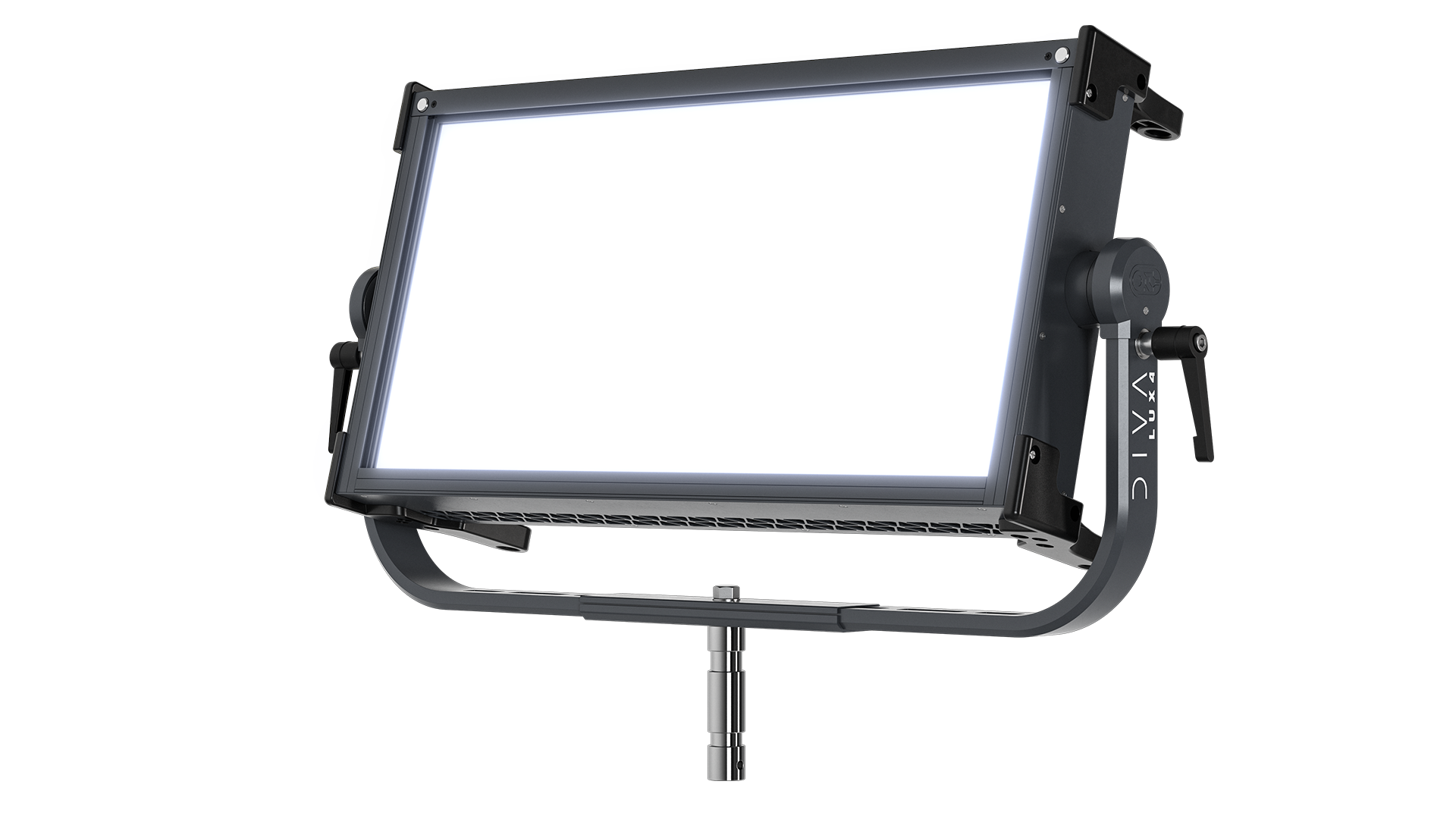

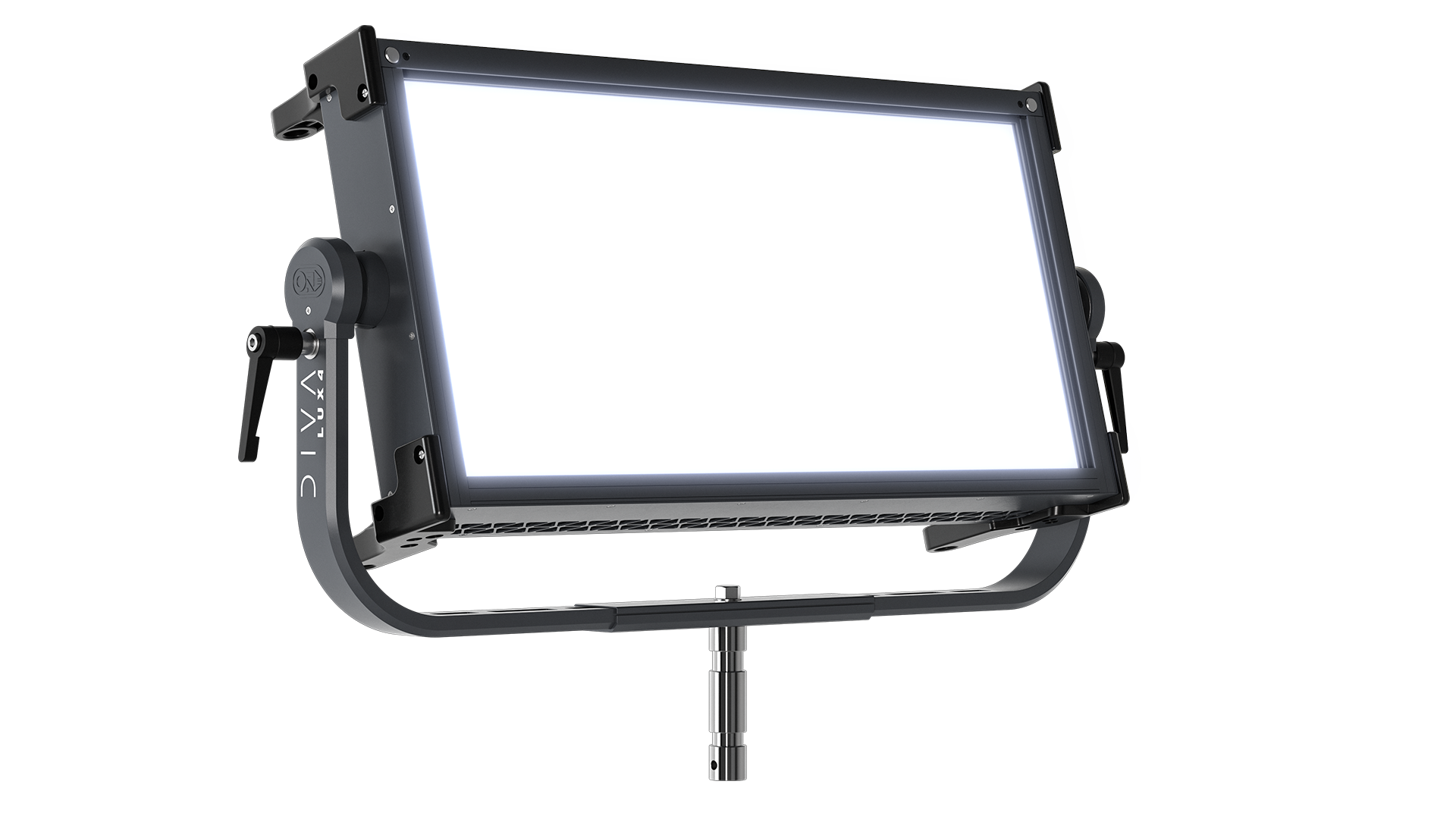

  • Removable Diffusion
  • Passive Ethernet Passthrough
  • Data Pass Thru on both DMX and Ethernet Lines
  • 5 Pin XLR DMX In/Out ports
  • Ethercon In/Out Ethernet ports
  • RDM / sACN / ArtNet
  • Firmware updates via USB-C
  • Jr Pin mount and feet for staging, mounting, and hanging

Diva Lux 4 Design


PHOTOMETRICS

  • RGBwWcW LED Engine with improved White Space and Color Space Spectrums
  • TLCI (3200K & 5600K): 99
  • TM-30 Rf (3200K & 5600K): 96
  • TM-30 Rg (3200K & 5600K): 100+
  • Beam Angle: 106 °
  • Weight (with yoke, Jr pin and diffusion): 32.9lbs / 14.9kg
  • Power Draw 500W
  • Voltage Range 100-240VAC / 48V DC

Downloads

Diva Lux 4 Standard Optics (No Diffusion Filter) – 3200K
DOWNLOAD
Diva Lux 4 Standard Optics (No Diffusion Filter) – 5600K
DOWNLOAD
Diva Lux 4 Standard Optics with Diffusion Filter – 3200K
DOWNLOAD
Diva Lux 4 Standard Optics with Diffusion Filter – 5600K
DOWNLOAD
Diva Lux 4 Data Sheet
DOWNLOAD
