SNAPBAG / SNAPGRID

SNAPBAG

Kino Flo Lighting Systems has added another layer of light control refinement with a pair of new softbox products tailor-made for FreeStyle LED, Diva-Lite LED and Image LED fixtures. DoPchoice® of Munich has created the SnapBag, SnapBox and the SnapGrid light controls that mount snuggly and easily on Kino Flo’s portable LED softlights. No special mounting rings or extra mounting accessories are required. The SnapGrid louver, a featherweight fabric butterfly, attaches to the front of the SnapBag/SnapBox with Velcro to control the spread of light without black flags or cutters.

The award-winning DoPchoice softboxes and fabric grids earn kudos from gaffers and cinematographers for their compact, portable and durable designs. The SnapBag, SnapBox and SnapGrid for FreeStyle LED’s, Diva-Lite LED’s and Image LED’s are ideal for lighting up to 8ft by 8ft of set space.


MOUNTING

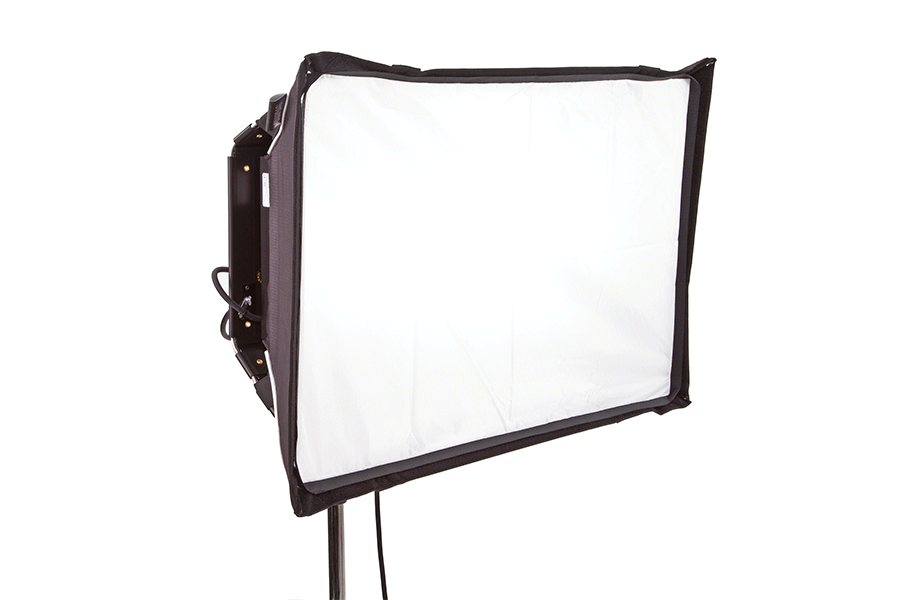

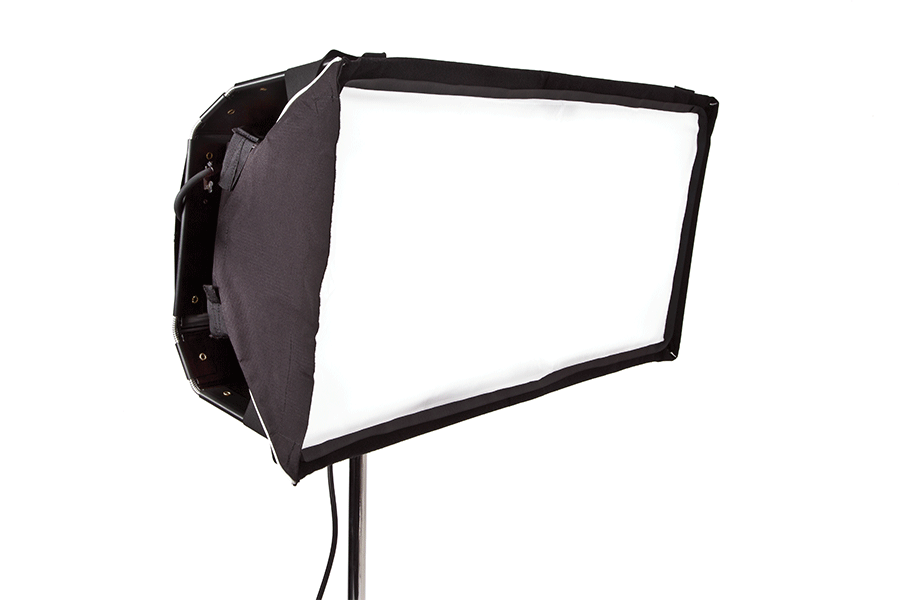

The SnapBag is easy to install and sets up in a snap. The lightweight fabric slips over the fixture and is attached with straps. The reflective material intensifies the soft light.  The removable grid cloth attaches to the inside with Velcro.

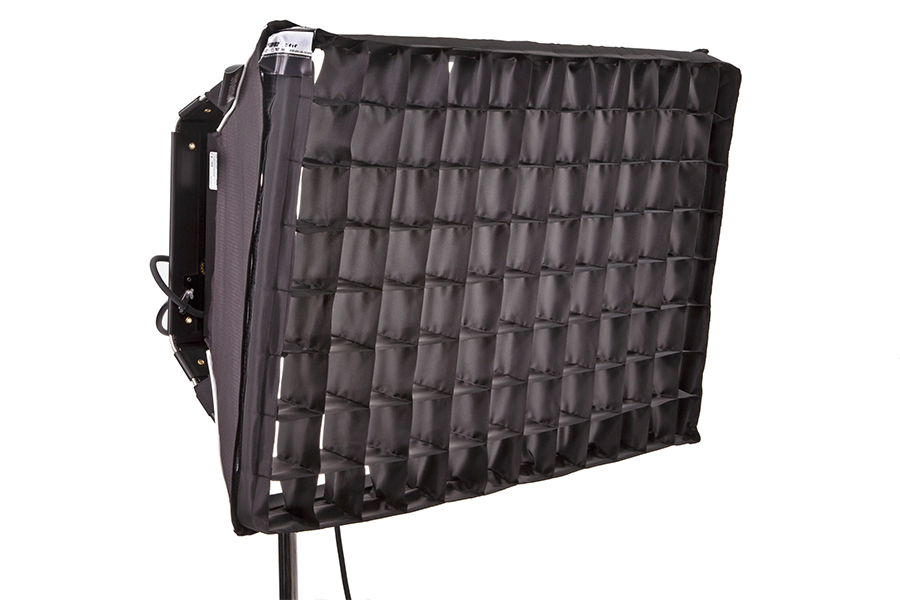

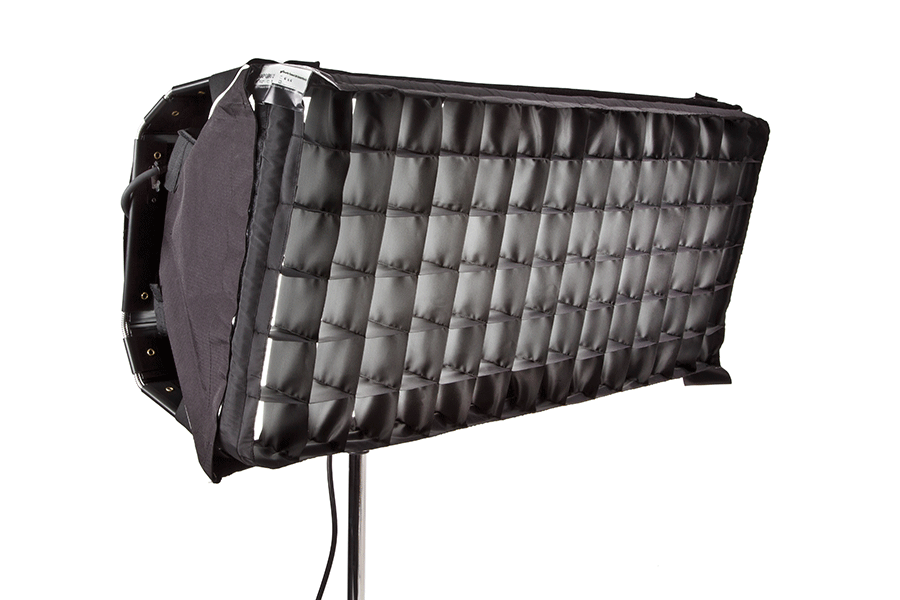

The SnapGrid accessory is constructed of pre-stretched fireproof fabric with a built-in stainless steel frame. It unfolds and snaps into place. It can only be used with the corresponding SnapBag and is attached with Velcro. It is not designed to be used by itself.


DIVA-LITE

DFS-FS41-S

Diva-Lite 41 SnapBag w/ 2 x Diffusion

Dimensions: 54 x 15.5 x 11″
(137 × 40 x 28cm)
Weight: 2.5 lb (1.1kg)

LVR-FS440-S

Diva-Lite 41, FreeStyle 41 & 41GT SnapGrid 40°

Dimensions: 53 x 14.5 x 3.5″
(135 x 37 x 9cm)
Weight: 2 lb (1kg)


DFS-FS31-S

Diva-Lite 31 SnapBag w/ 2 x Diffusion

Dimensions: 42.5 x 19.5 x 9″
(108 x 49.5 x 23cm)
Weight: 2 lb (1kg)

LVR-FS340-S

Diva-Lite 30/31, FreeStyle 31 & 31GT SnapGrid 40°

Dimensions: 42 x 18.5 x 3.5″
(107 x 47 x 9cm)
Weight: 1.5 lb (1kg)


DFS-FS21-S

Diva-Lite 21 SnapBag w/ 2 x Diffusion

Dimensions: 35 x 24.5 x 10.5″
(89 × 62 x 27cm)
Weight: 2.5 lb (1kg)

LVR-FS240-S

Diva-Lite 20/21, FreeStyle 21 & 21GT SnapGrid 40°

Dimensions: 36 x 23.5 x 3.5″
(91.5 x 60 x 9cm)
Weight: 2 lb (1kg)


DFS-FS31-S

Diva-Lite 30 SnapBag w/ 2 x Diffusion

Dimensions: 42.5 x 19.5 x 9″
(108 x 49.5 x 23cm)
Weight: 2 lb (1kg)

LVR-FS340-S

Diva-Lite 30/31, FreeStyle 31 & 31GT SnapGrid 40°

Dimensions: 42 x 18.5 x 3.5″
(107 x 47 x 9cm)
Weight: 1.5 lb (1kg)


DFS-FS21-S

Diva-Lite 20 SnapBag w/ 2 x Diffusion

Dimensions: 35 x24.5 x 10.5″
(89 x 62 x 27cm)
Weight: 2.5 lb (1kg)

LVR-FS240-S

Diva-Lite 20/21, FreeStyle 21 & 21GT  SnapGrid 40°

Dimensions: 36 x 23.5 x 3.5″
(91.5 x 60 x 9cm)
Weight: 2lb (1kg)

FREESTYLE

DFS-FS41-S

FreeStyle 41 & 41GT SnapBag
w/ 2 x Diffusion

Dimensions: 54 x 15.5 x 11″
(137 x 40 x 28cm)
Weight: 2.5 lb (1.1kg)

LVR-FS440-S

Diva-Lite 41, FreeStyle 41 & 41GT SnapGrid 40°

Dimensions: 53 x 14.5 x 3.5″
(135 x 37 x 9cm)
Weight: 2 lb (1kg)


DFS-FS31-S

FreeStyle 31 & 31GT SnapBag
w/ 2 x Diffusion

Dimensions: 42.5 x 19.5 x 9″
(108 x 49.5 x 23cm)
Weight: 2 lb (1kg)

LVR-FS340-S

Diva-Lite 30/31, FreeStyle 31 & 31GT SnapGrid 40°

Dimensions: 42 x 18.5 x 3.5″
(107 x 47 x 9cm)
Weight: 1.5 lb (1kg)


DFS-FS21-S

FreeStyle 21 & 21GT SnapBag w/ 2 x Diffusion

Dimensions: 35 x 24.5 x 10.5″
(89 x 62 x 27cm)
Weight: 2.5 lb (1kg)

LVR-FS240-S

Diva-Lite 20/21, FreeStyle 21 & 21 GT SnapGrid 40°

Dimensions: 36 x 23.5 x 3.5″
(91.5 × 60 x 9cm)
Weight 2 lb (1kg)


DFS-FS10-S

FreeStyle Mini SnapBag w/ 2 x Diffusion

Dimensions: 27.5 x 15.5 x 8″
(70 x 39 x 20cm)
Weight: 2 lb (1kg)

LVR-FS140-S

FreeStyle Mini SnapGrid 40°

Dimensions: 27.5 x 15.5 x 3.5″
(70 x 39 x 9cm)
Weight: 1.5 lb (1kg)

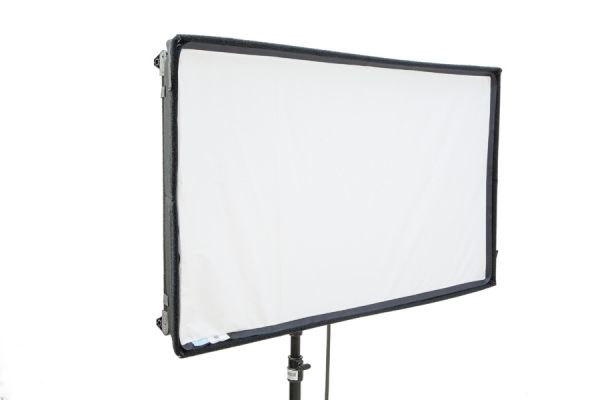

DFS-FAMX

FreeStyle Air Max SnapBox
w/ 2 x Diffusion


Dimensions: 42.5 x 3 x 23.5” (108 x 8 x 60cm)
Weight: 2.5 lb (1kg)

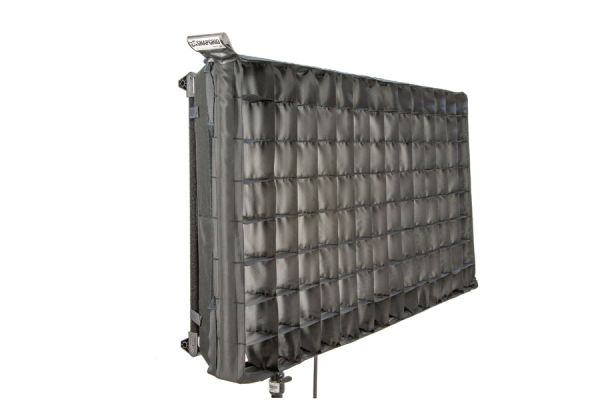

LVR-FAMX40

FreeStyle Air Max SnapGrid, 40°


Dimensions: 43.5 x 4 x 24” (110 x 10 x 61cm)
Weight: 2 lb (1kg)

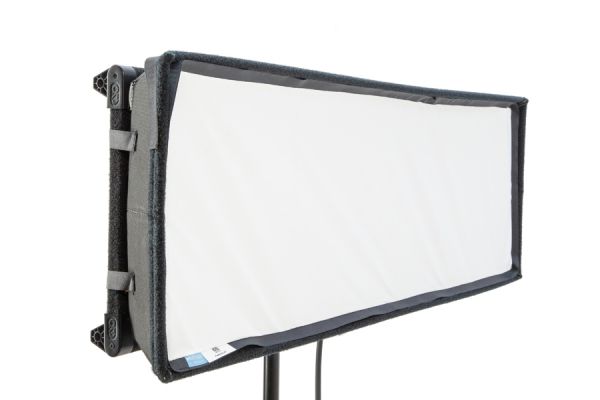

DFS-FA

FreeStyle Air SnapBox
w/ 2 x Diffusion


Dimensions: 42 x 3 x 14” (107 x 8 x 36cm)
Weight: 2.5 lb (1kg)

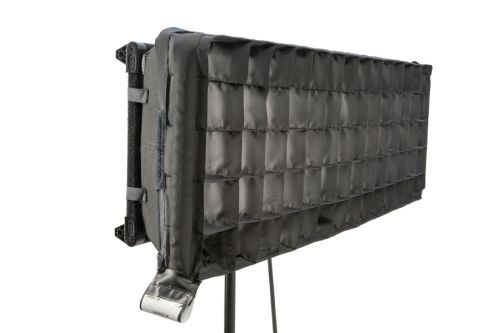

LVR-FA40

FreeStyle Air SnapGrid, 40°


Dimensions: 43 x 4 x 14.5” (109 x 10 x 37cm)
Weight: 2 lb (1kg)


DFS-FAM

FreeStyle Air Mini SnapBox
w/ 2 x Diffusion


Dimensions: 23.5 x 3 x 15” (60 x 8 x 38cm)
Weight: 1.5 lb (1kg)

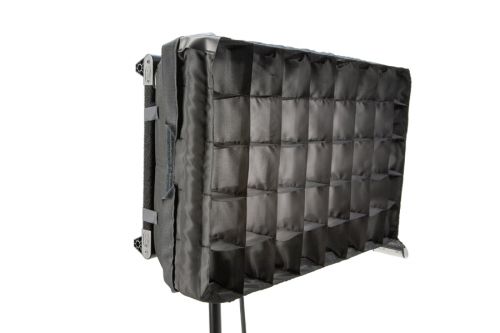

LVR-FAM40

FreeStyle Air Mini SnapGrid, 40°


Dimensions: 24 x 4 x 15.5” (61 x 10 x 39cm)
Weight: 1.5 lb (1kg)



DFS-L80-S

Image L80 SnapBag w/ 2 x Diffusion

Dimensions: 72 x 49.5 x 10″
(183 x 126 x 25cm)
Weight: 8 lb (4kg)

LVR-CE840-S

Image L80 SnapGrid 40°

Dimensions: 71 x 47 x 3.5″
(180 x 119 x 9cm)
Weight: 5 lb (2kg)


CELEB

DFS-CE200-S

Celeb 250 SnapBag w/ 2 x Diffusion

Dimensions: 35.5 x 24 x 10.5″
(90 x 61 x 27 cm)
Weight: 2.5 lb (1kg)

LVR-FS240-S

Celeb 250, Diva-Lite 20/21, FreeStyle 21 & 21GT, Select 20 SnapGrid 40°

Dimensions: 36 x 23.5 x 3.5″
(91.5 x 60 x 9cm)
Weight: 2 lb (1kg)


DFS-CE400-S

Celeb 450 SnapBag w/ 2 x Diffusion

Dimensions: 55.5 x 23 x 10.5″
(141 x 58 x 27cm)
Weight: 3 lb (1.5kg)

LVR-CE440-S

Celeb 450 SnapGrid 40°

Dimensions: 55 x 21.5 x 3.5″
(140 x 55 x 9cm)
Weight: 3 lb (1.5kg)


DFS-CE400Q-S

Celeb 450Q SnapBag w/ 2 x Diffusion

Dimensions: 47.5 x 47.5 x 12.5″
(121 x121 x 32cm)
Weight: 4.5 lb (2kg)

LVR-CE440Q-S

Celeb 450Q SnapGrid 40°

Dimensions: 46.5 x 46.5 x 3.5″
(118 x 118 x 9cm)
Weight: 3.5 lb (1.5kg)


DFS-CE800-S

Celeb 850 SnapBag w/ 2 x Diffusion

Dimensions: 72 x 49.5 x 12.5″
(183 × 126 x 32cm)
Weight: 8 lb (4kg)

LVR-CE840-S

Celeb 850, Image L80 SnapGrid 40°

Dimensions: 71 x 47 x 3.5″
(180 x 119 x 9cm)
Weight: 5 lb (2kg)
