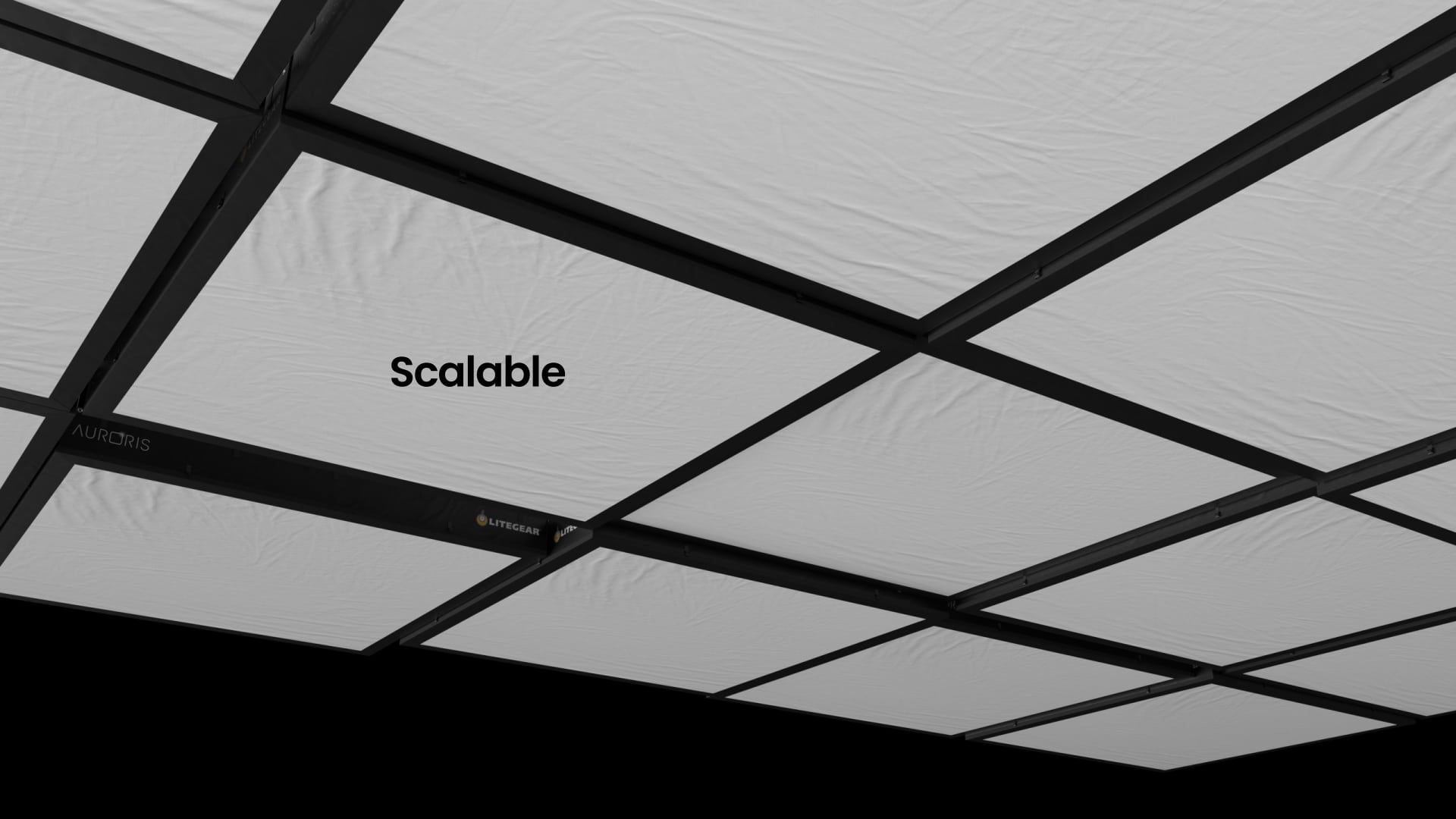

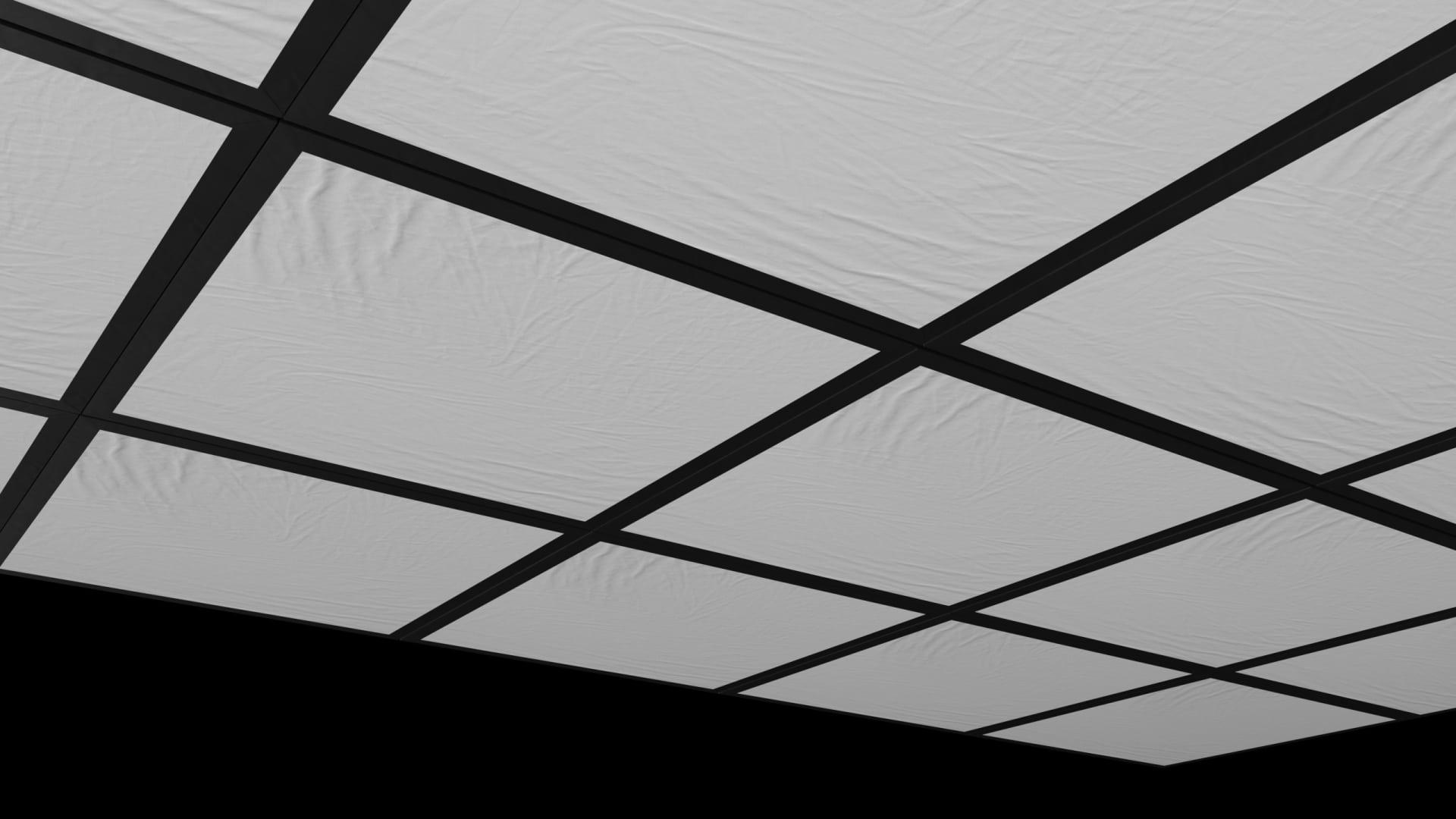

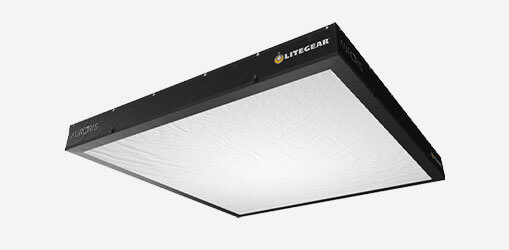

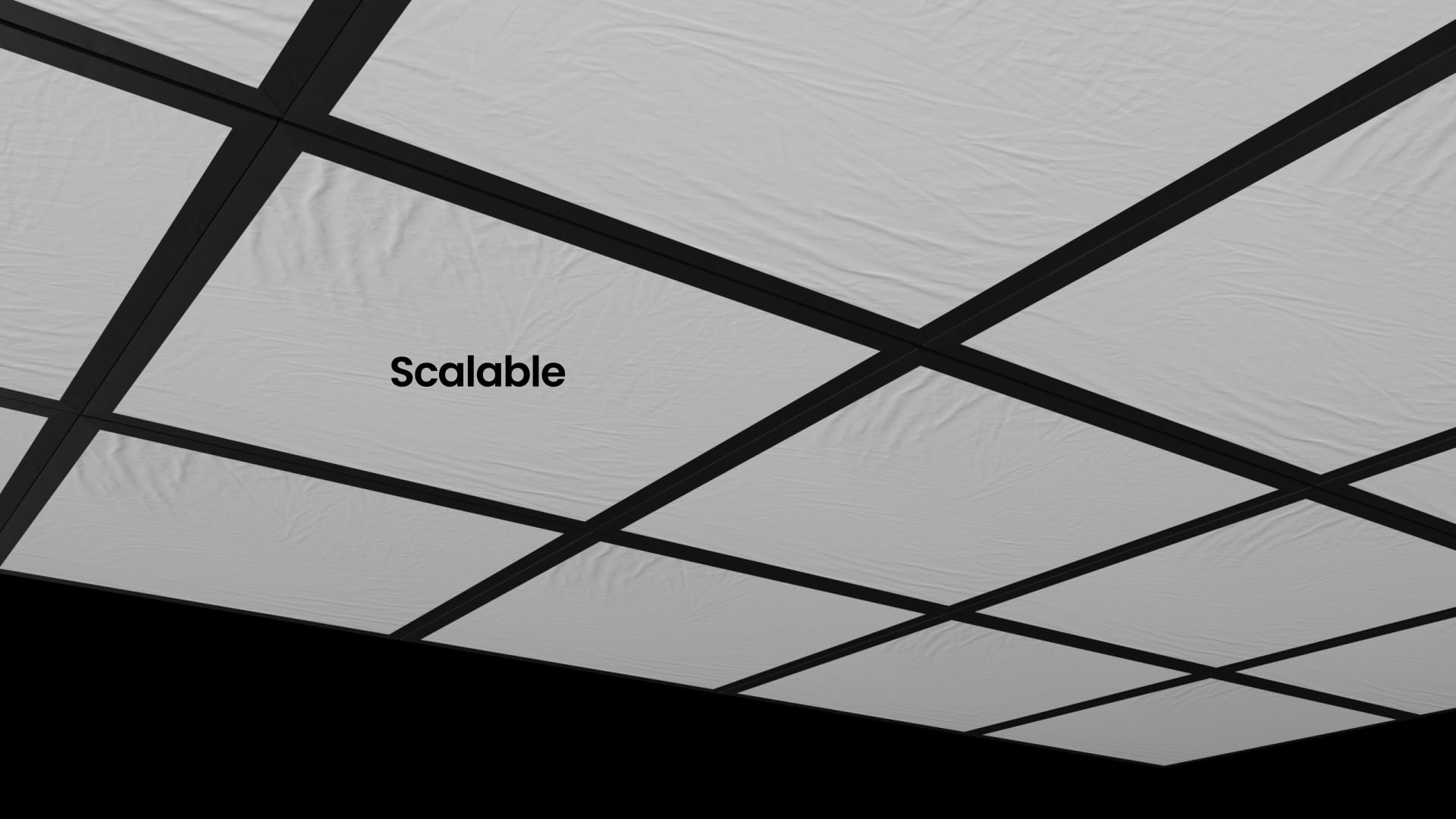

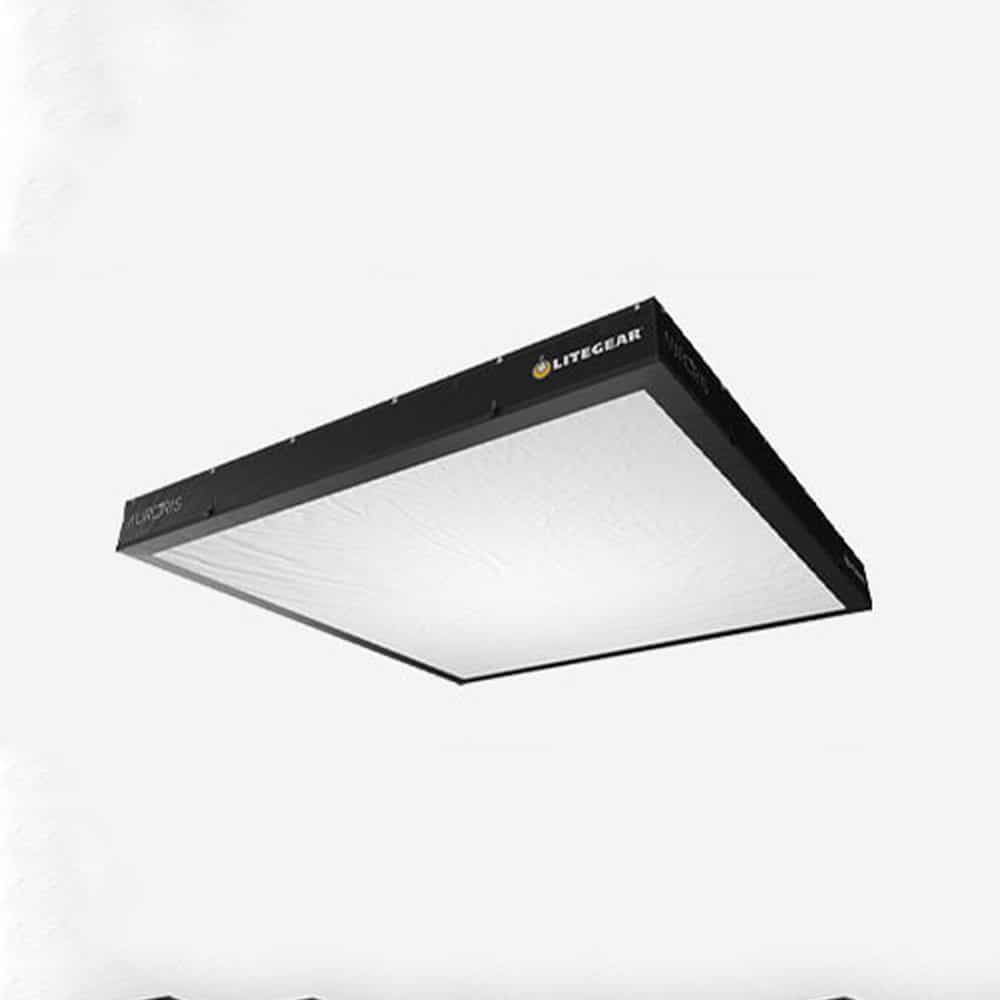

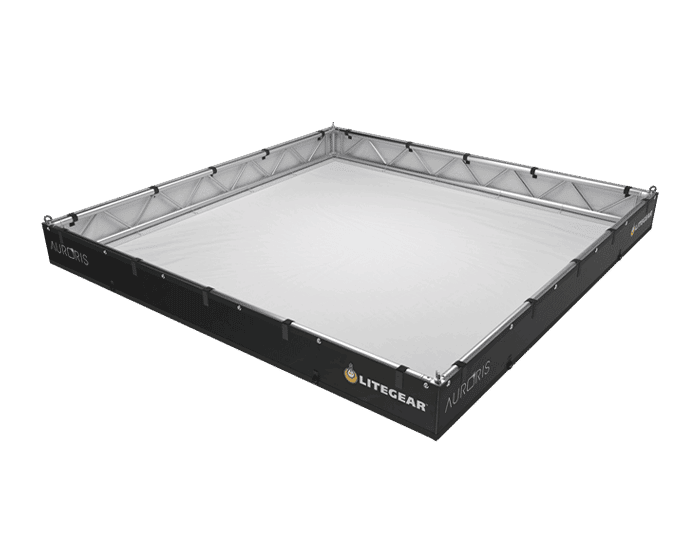

Auroris X Diffusion & Skirt

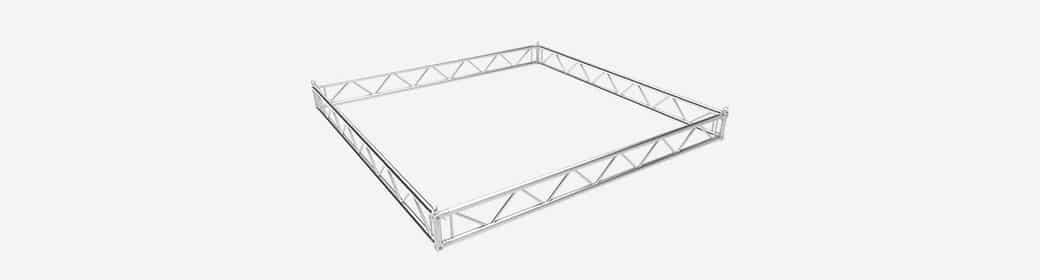

The Auroris diffusion and skirt options create soft, even light output and are available in three densities: full, half grid, and quarter grid. The diffusion can attach to any 12 ft x 12 ft (3 m x 3 m) frame using a sash cord, allowing for taught diffusion. The skirt controls unwanted bounce or spill and attaches quickly to the truss with a strap and buckle system. An additional flap for the diffusion eliminates light leak and provides a picture-perfect line.

Length: 12 ft (4 m)
Width: 12 ft (4 m)
Depth 0.25 in (6.3 mm)
Weight: 6.6 lbs (3 kg)

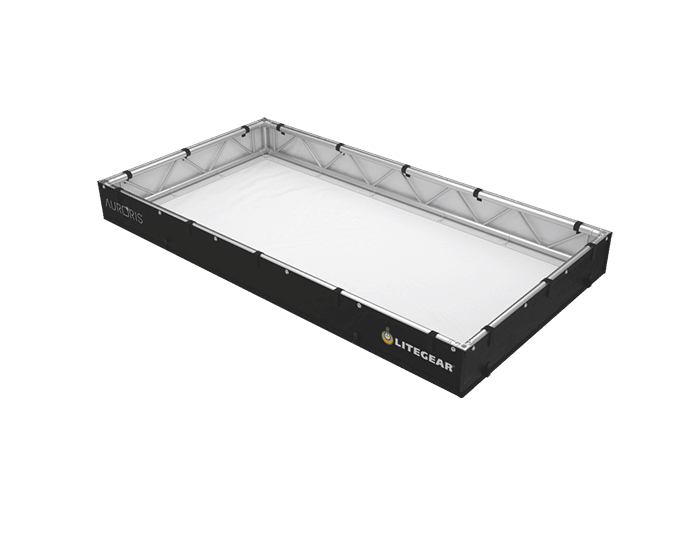

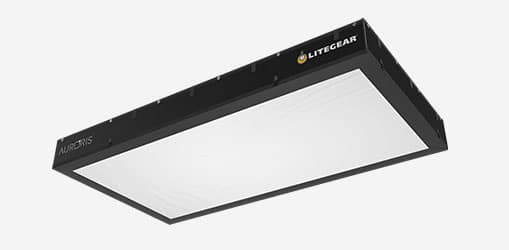

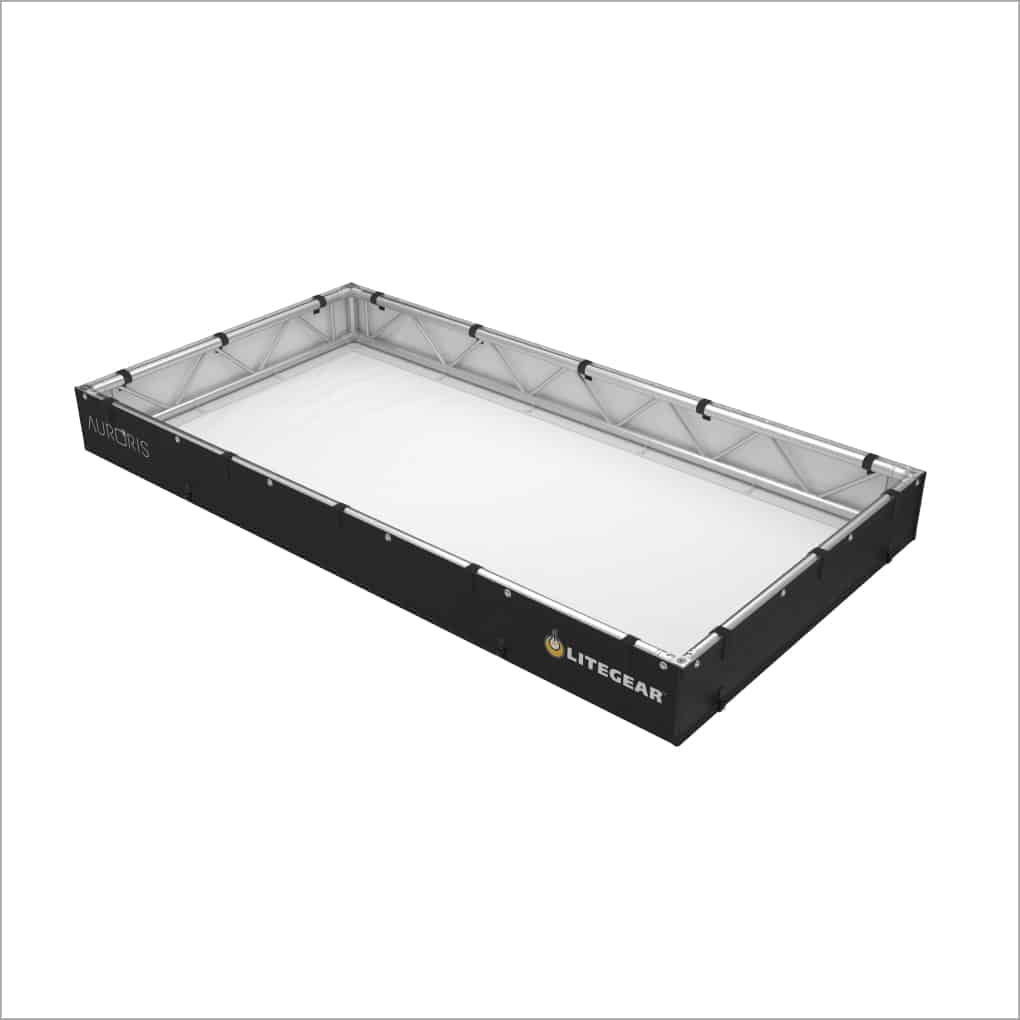

Auroris V Diffusion & Skirt

The Auroris V diffusion and skirt creates soft, even light output and are available in three densities: full, half grid, and quarter grid. The diffusion can attach to any 5 ft x 10 ft ( 1.5 m x 3 m) frame using a sash cord, allowing for taught diffusion. The skirt controls unwanted bounce or spill and attaches quickly to the truss with a strap and buckle system. An additional flap for the diffusion eliminates light leak and provides a picture-perfect line.

Length: 12 ft. (4 m)
Width: 7 ft. (2 m)
Depth: 0.25 in. (6.3 mm)
Weight: 3.3 lbs. (1.5 kg)

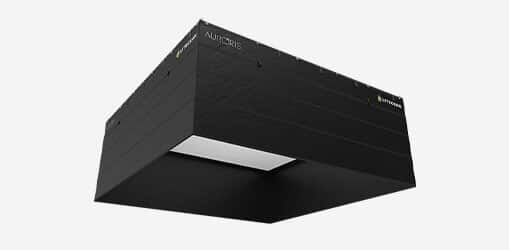

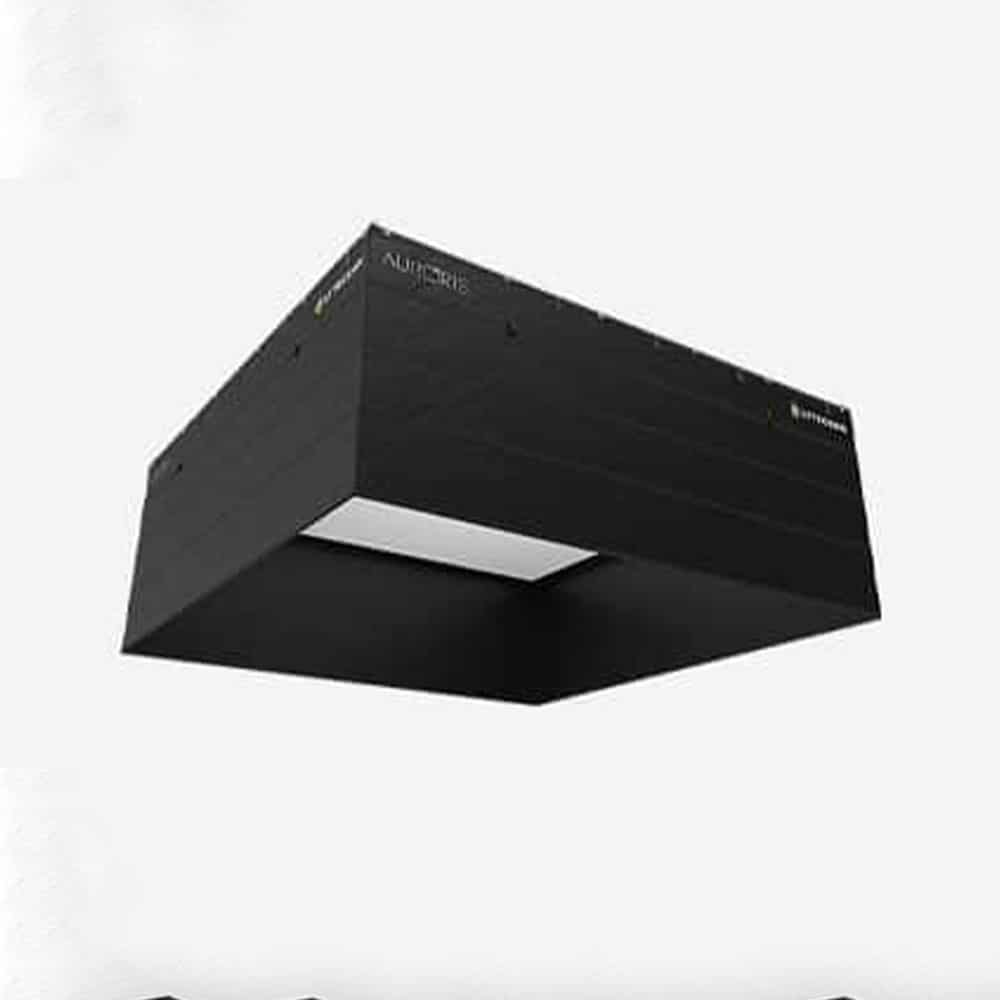

Auroris X Teaser

This 1m tall duvetyn teaser extends the side skirt, allowing for additional control of unwanted spill light. Quick release buckles make for easy attachment and additional Velcro strips enable height changes for the teaser. *Diffusion, skirt, and Auroris sold separately.

Lightweight
Quick-release buckles
Includes four teaser panels
Adjustable height
Matte black exterior & interior

Dimensions:
Height: 3.3 ft (1 m)
Width: 10 ft (3 m)
Depth: 0.5 in. (12.7 mm)
Weight: 14.4 lbs (6.5 kg) total
3.6 lbs (1.7 kg) per panel

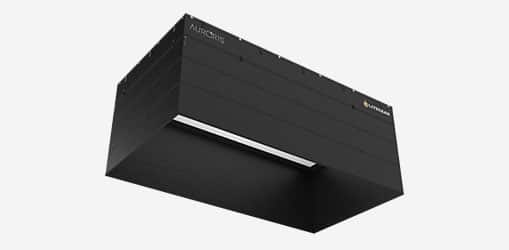

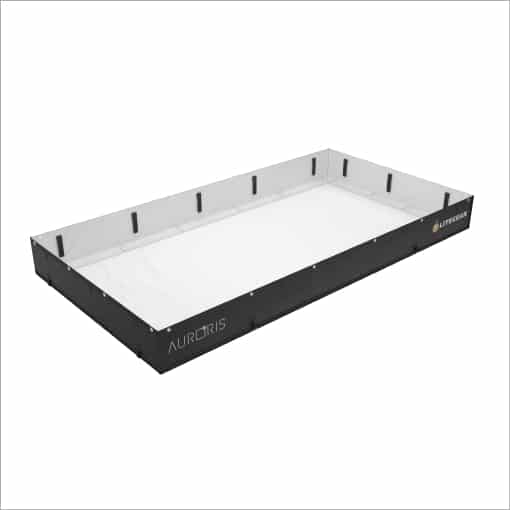

Auroris V Teaser

This 1m tall duvetyn teaser extends the side skirt, allowing for additional control of unwanted spill light. Quick release buckles make for easy attachment and additional Velcro strips enable height changes for the teaser. *Diffusion, skirt, and Auroris sold separately.

Lightweight
Quick-release buckles
Includes four teaser panels
Adjustable height
Matte black exterior & interior

Dimensions:
Height: 3.3 ft (1 m)
Width: 5.5 ft (1.6 m)
Depth: 0.5 in. (12.7 mm)
Weight: 7.2 lbs (3.3 kg) total
Weight: 1.8 lbs (8 kg) per panel

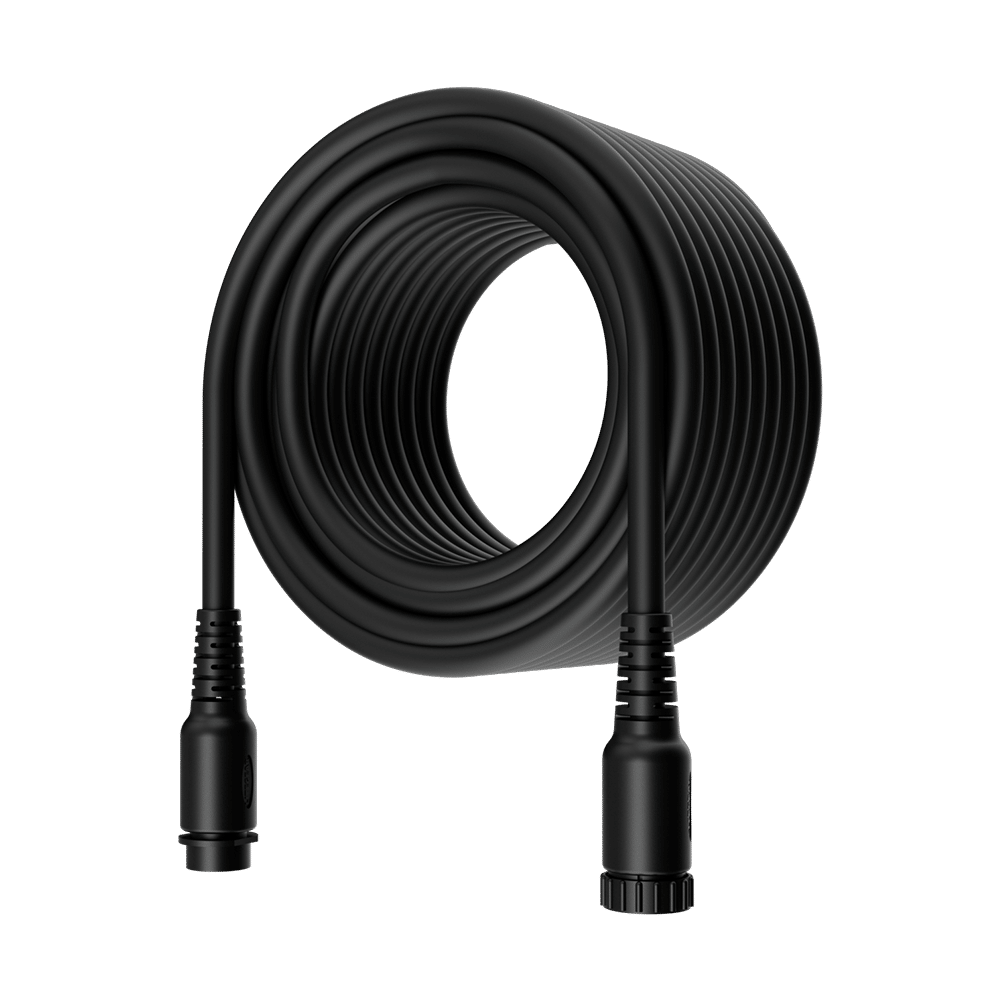

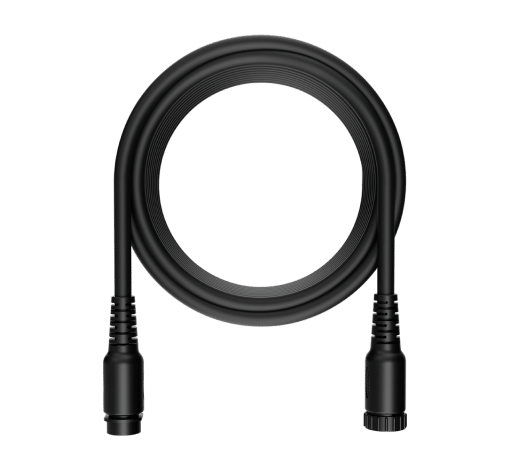

Auroris Cable

The 28-pin header cable distributes power and data evenly for up to 12 light engines.

• Heavy-duty 28-pin connector
• Available in four sizes
• Black in color

Lengths: 12 ft (4 m), 25 ft. (7.6 m), 50 ft. (15.2 m), 100 ft. (30.4 m)

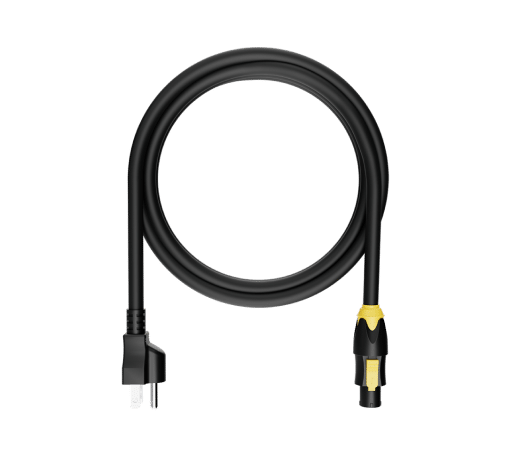

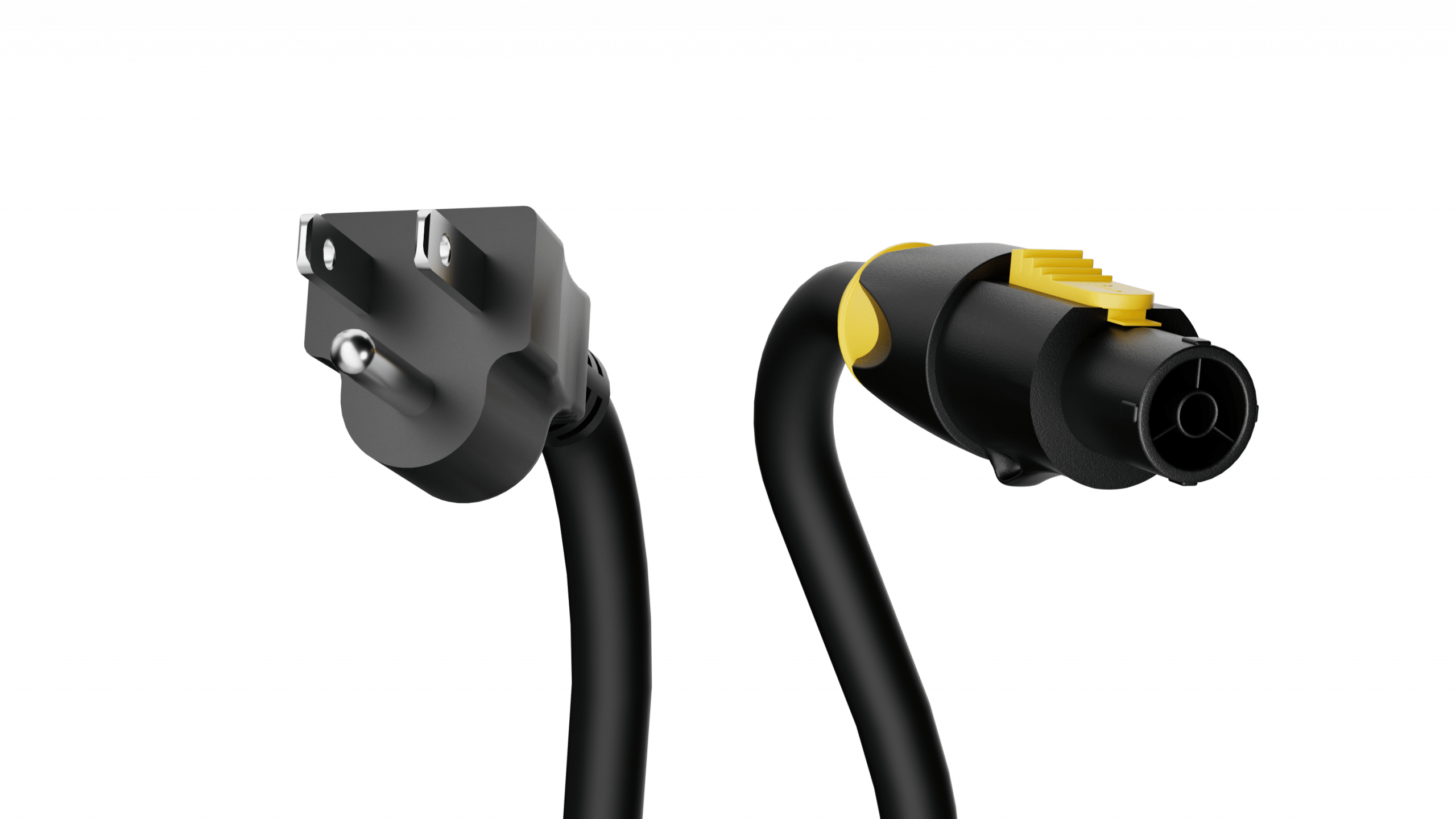

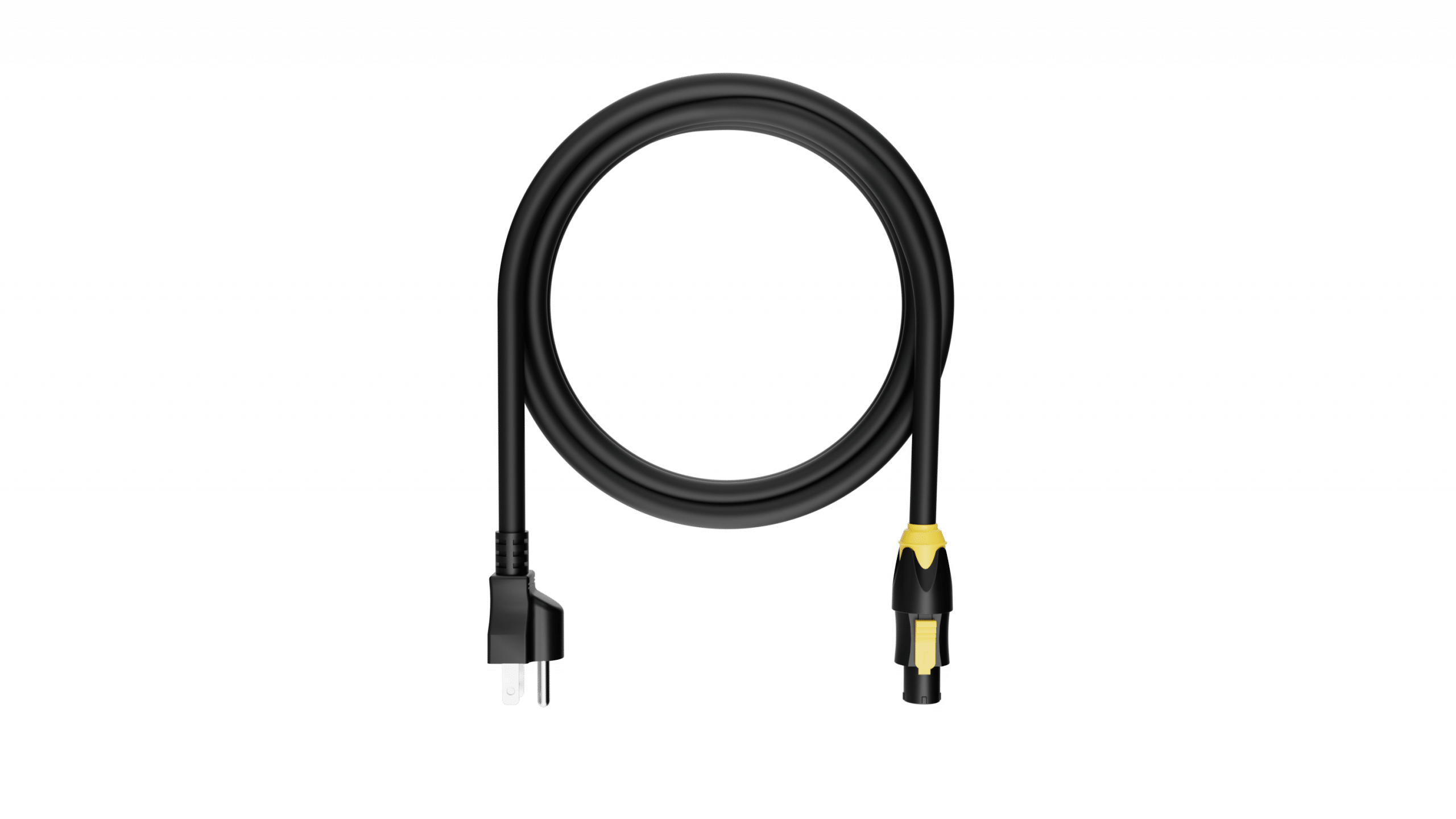

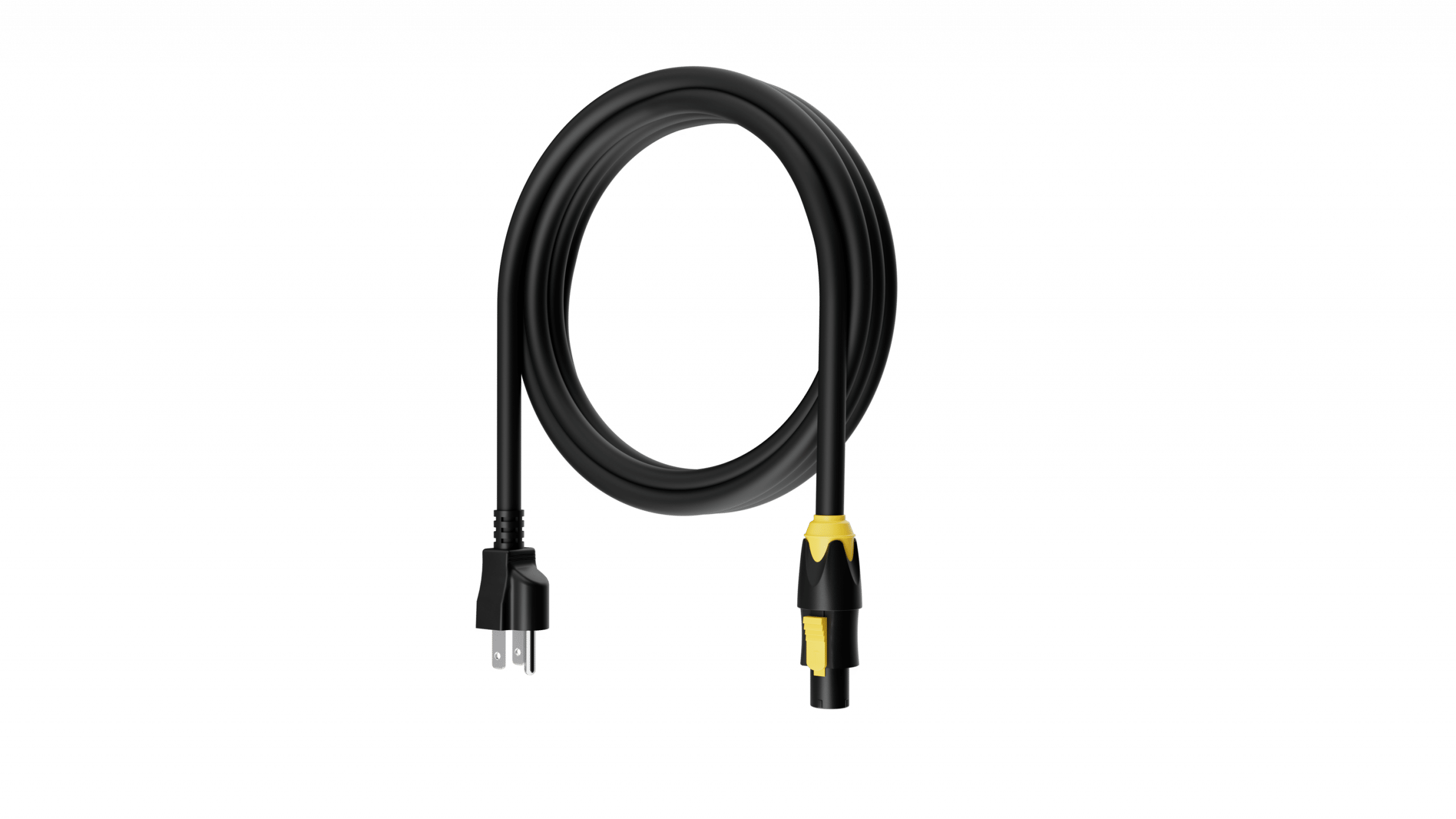

Mains Cable

Lockable 3 pole connector with contacts for line, neutral, and safety grounds. Available in Edison, Schuko and Bare-End.

• Secure-locking, compact housing.
• 3 individually insulated 12 AWG-stranded conductors.
• Durable, moisture-proof, and kink resistant jacket.

Length: 10 ft. (3 m)

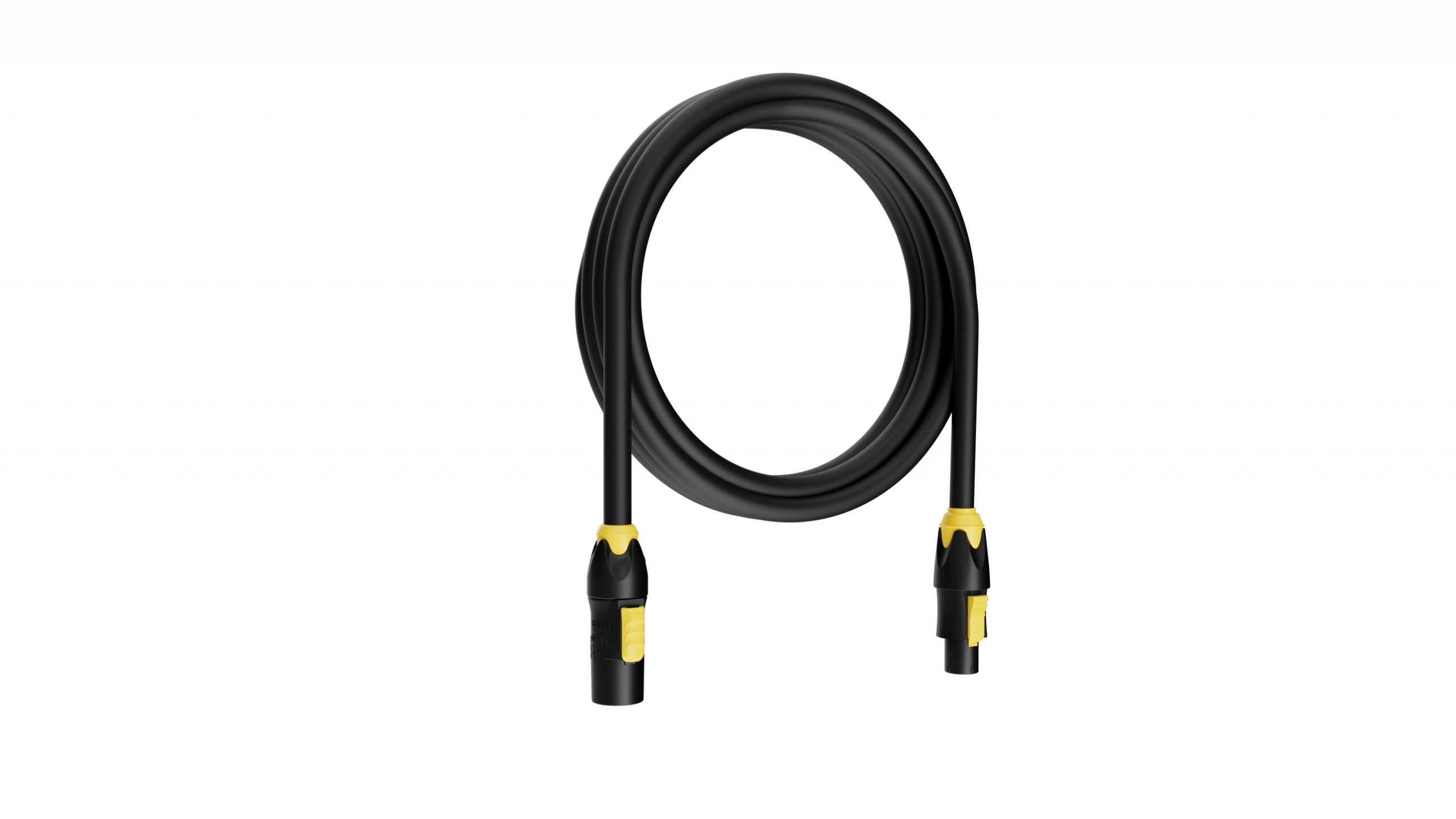

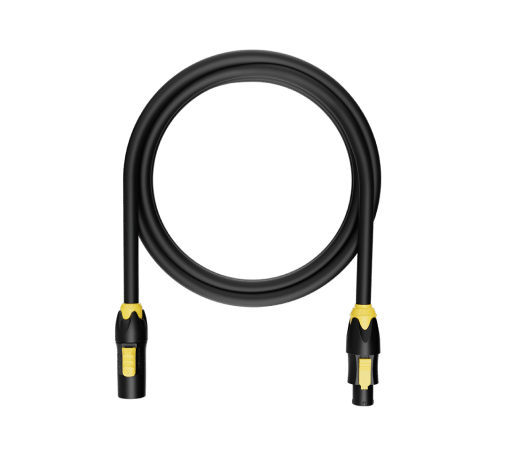

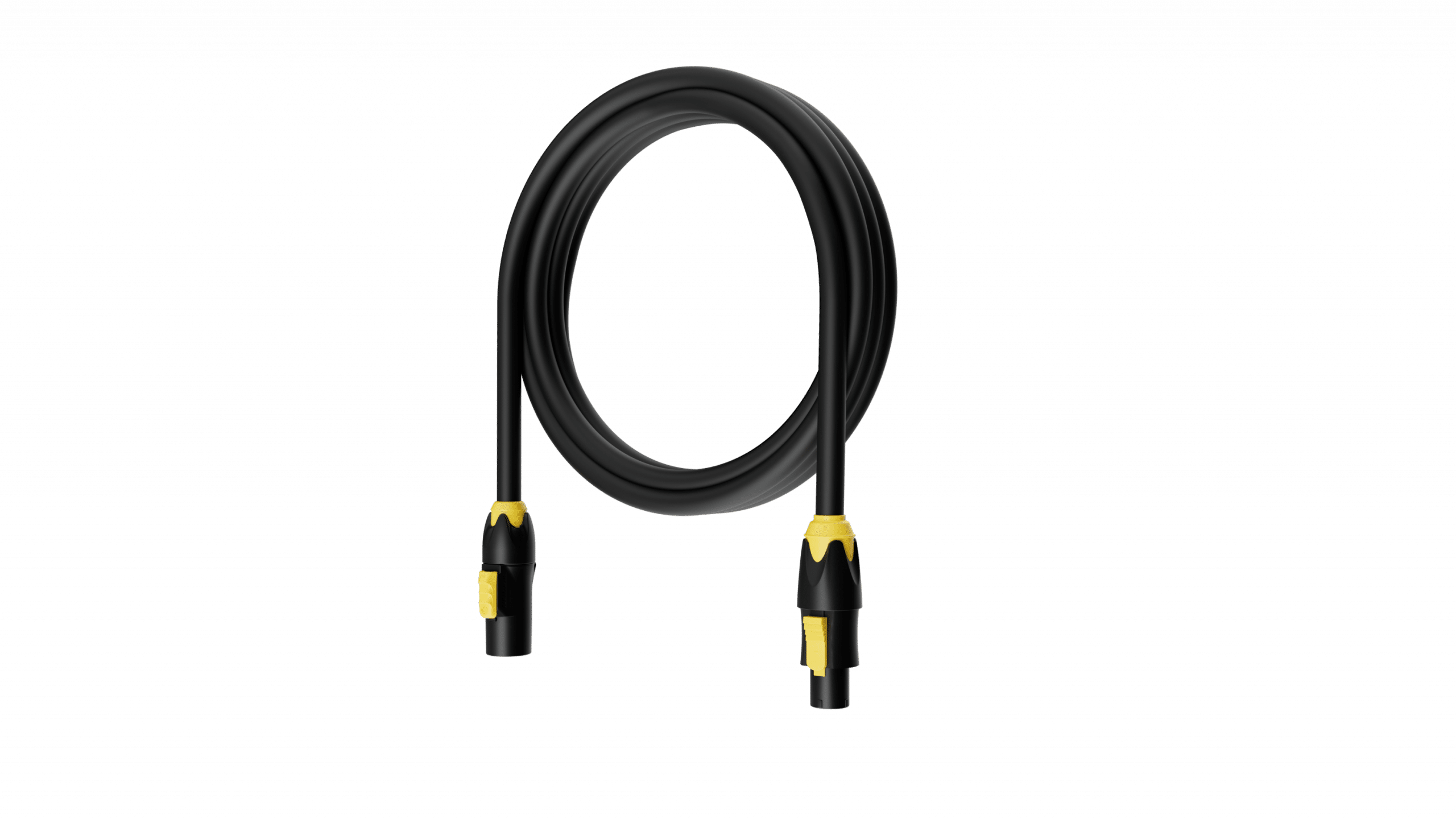

Mains to Mains Passthrough Cable

Lockable 3 pole connector to lockable 3 pole connector with contacts for line, neutral, and safety grounds.

• Secure-locking, compact housing.
• 3 individually insulated 12 AWG-stranded conductors.
• Durable, moisture-proof, and kink resistant jacket.

Length: 12 ft. (4 m)

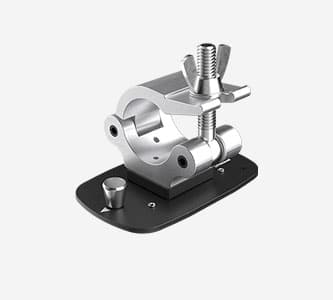

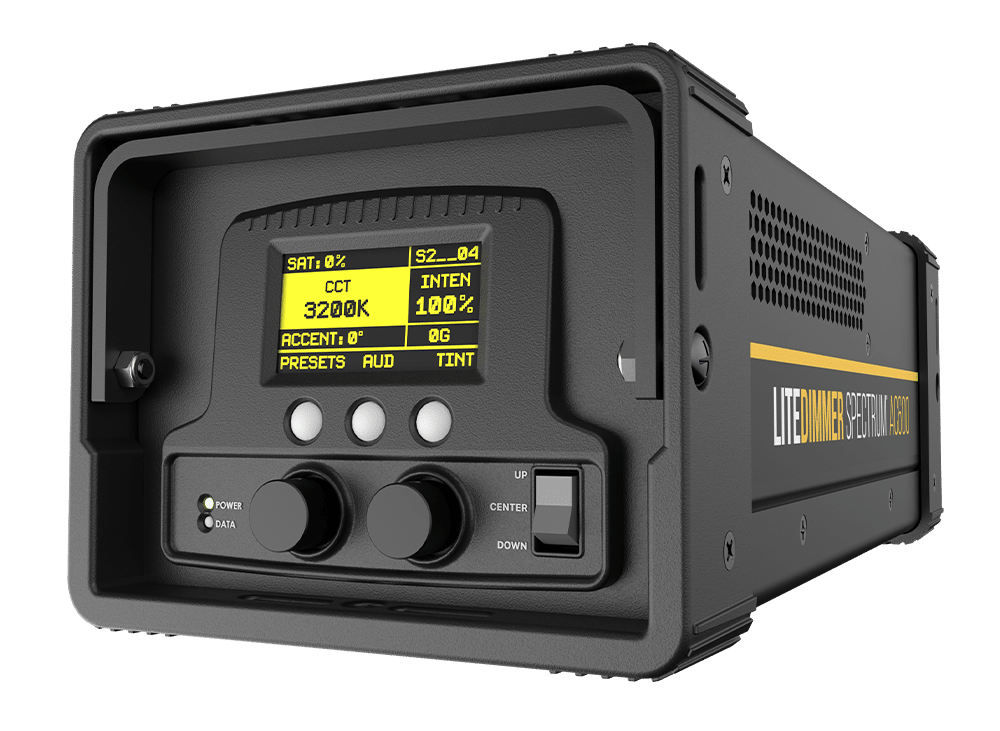

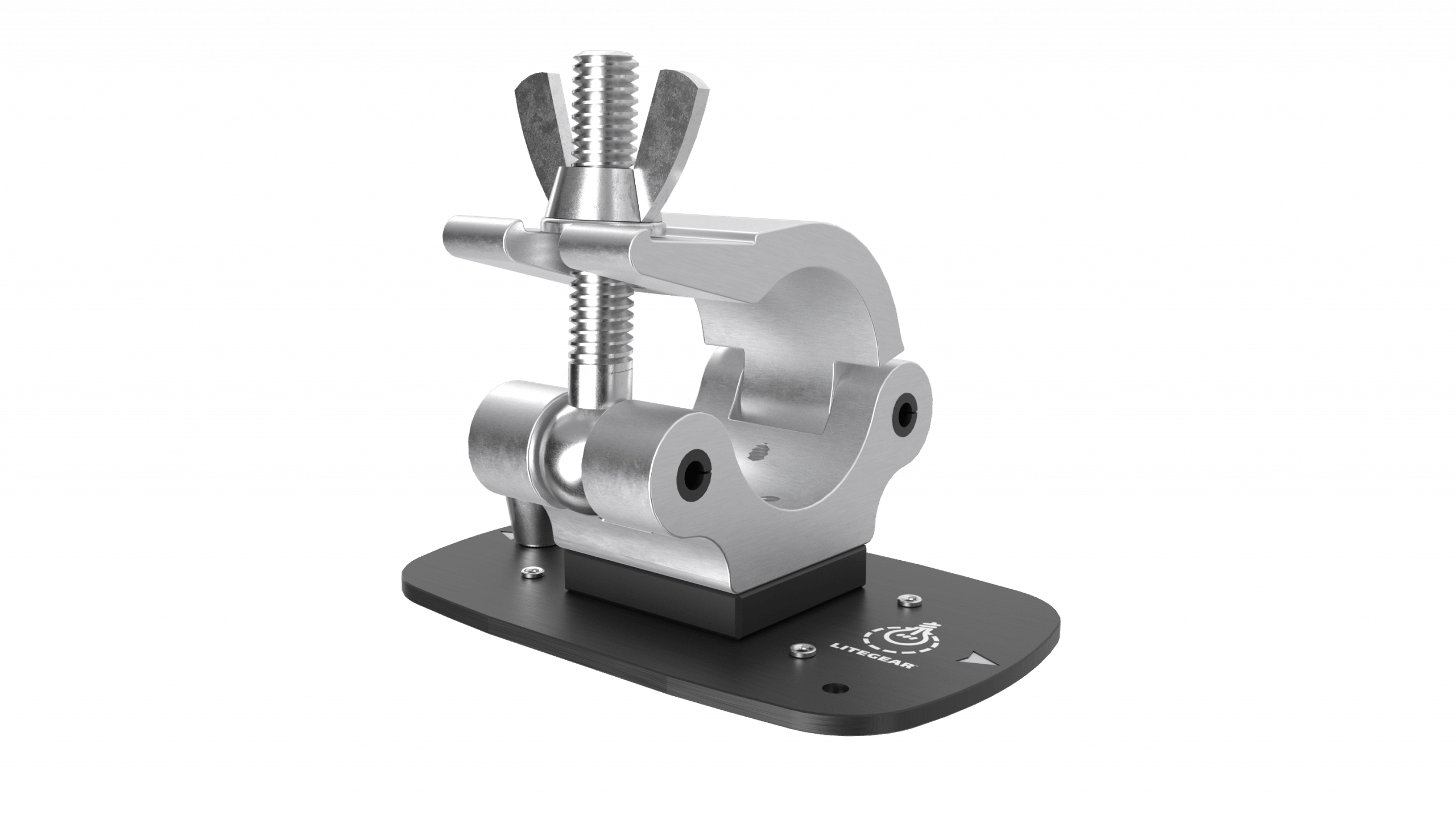

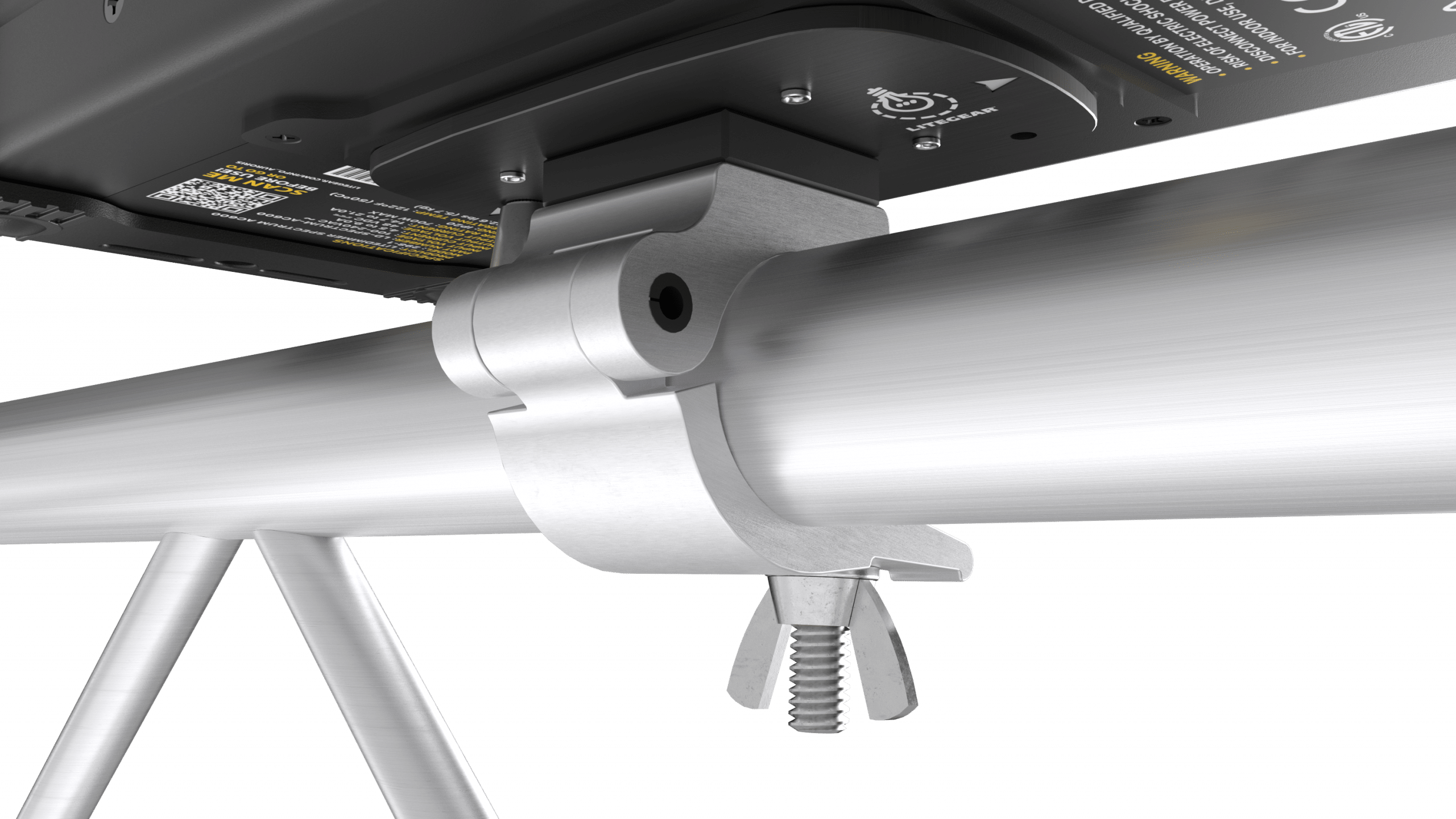

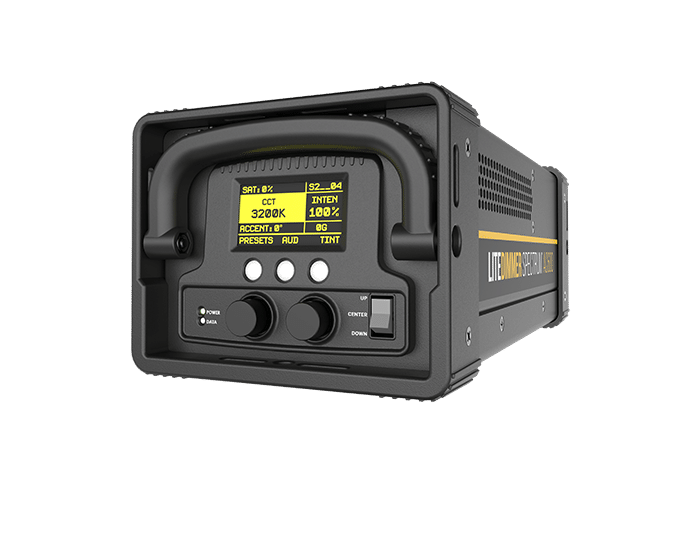

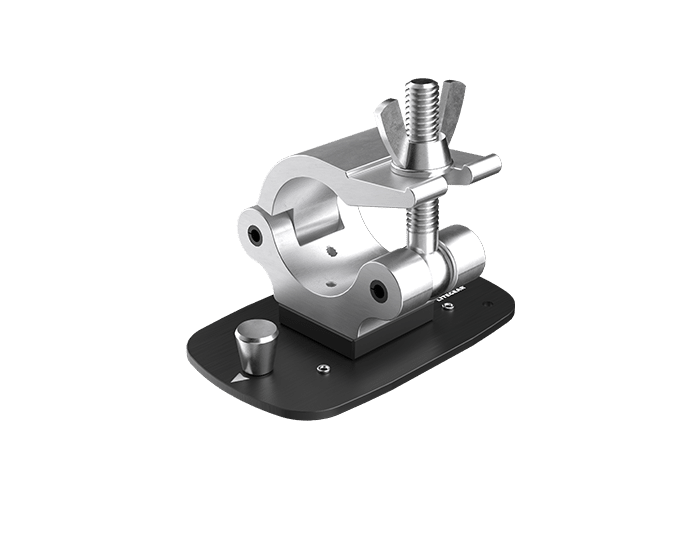

LiteDimmer Truss Mount

The Dimmer Truss Mount provides secure attachment of the LiteDimmer AC600 to any 1.5” to 2” pipe. A K-Mount enables quick attachment to the AC600 while the 2” cheeseborough affixes firmly to almost any pipe.

• K-Mount quick-release
• 2” cheeseborough

Specs: Truss Mount: Height: 4.9 in (124 mm) from top of screw to bottom plate, Width: 5.7 in (145 mm), Depth: 4.2 in (108 mm), Weight: 1.5 lbs (0.7 kg)

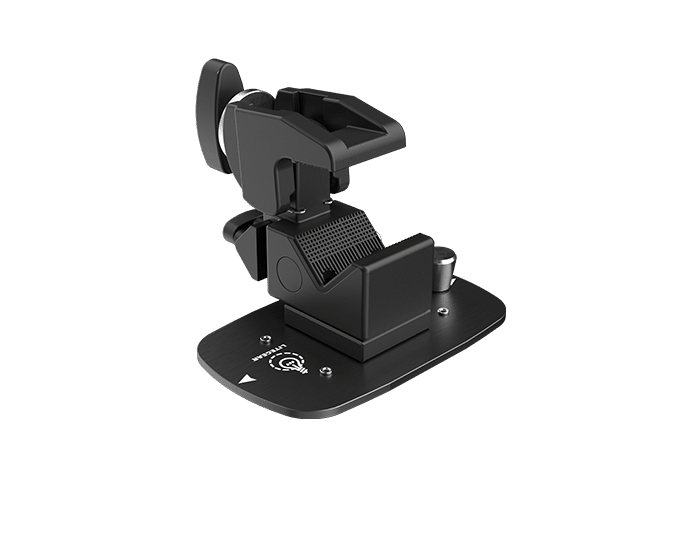

LiteDimmer Stand Mount

The Dimmer Stand Mount provides secure an attachment of the LiteDimmer Spectrum AC600 to any light stand. A K-Mount enables quick attachment to the AC600, while the Super Clamp affixes firmly to any light stem or leg.

• K-Mount quick-release
• 2” Mafer super clamp

Specs: Stand Mount: Height: 4.3 in (109 mm), Width: 5.7 in (145 mm), Depth: 3.7 in (94 mm), Weight: 1.5 lbs (0.7 kg)

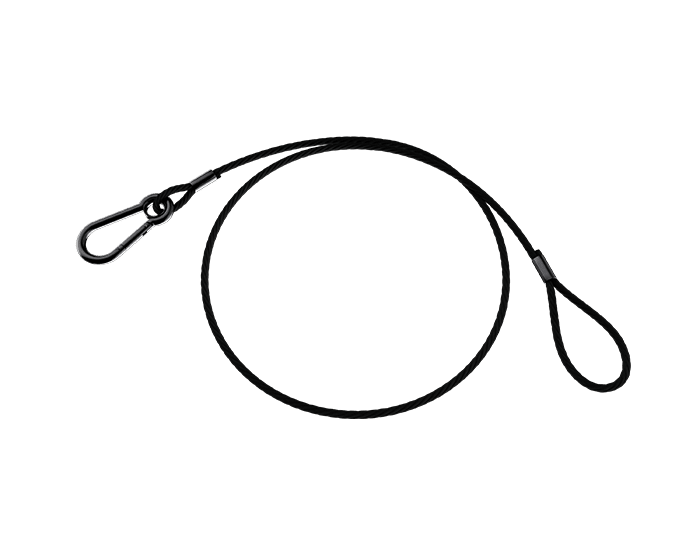

Safety Cable

For rigging and safety, a 30″ black safety cable with 5/16″ spring hook is included with the Auroris fixture.

• 1/8″ galvanized aircraft cable
• 5/16” spring carabiner hook

Length: 30 in. (762 mm)

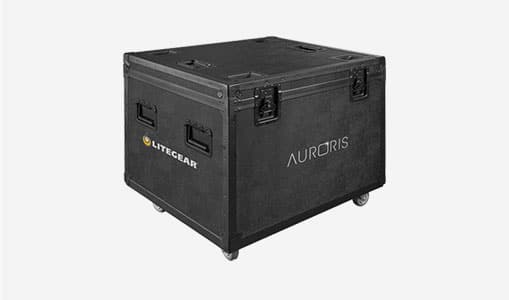

Auroris Travel Case

The heavy-duty, hard-walled travel case stores one Auroris X fixture, two AC600 LiteDimmers, power, and feeder cables. Built with casters, handles, and fiber walls, this touring case is perfect for storage and transportation.

• Holds one Auroris X system
• Casters and side handles
• Heavy-duty build quality
• Black in color

Specs: Height: 32 in. (813 mm), Width: 34 in. (864 m), Depth: 30 in. (762 mm), Weight: 107 lbs. (149 kg)

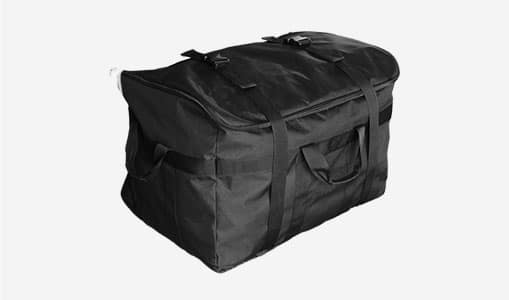

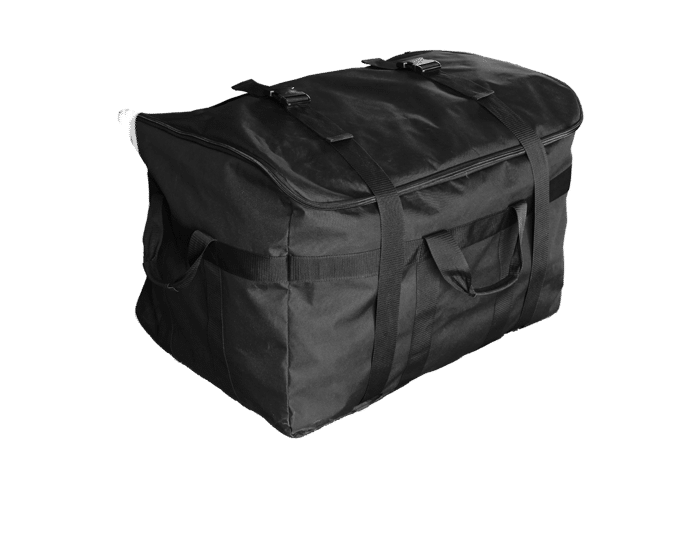

Auroris Head Storage Bag

Constructed of 600D polyester and polyester webbing, the Auroris X head storage bag is included with an Auroris X fixture. The storage bag protects the head from wear and tear between uses.

Specs: Length: 31 in. (787.4 mm), Width: 21 in. (533 mm), Height: 21 in. (533 mm), Weight: 5 lbs (2.3 kg)
